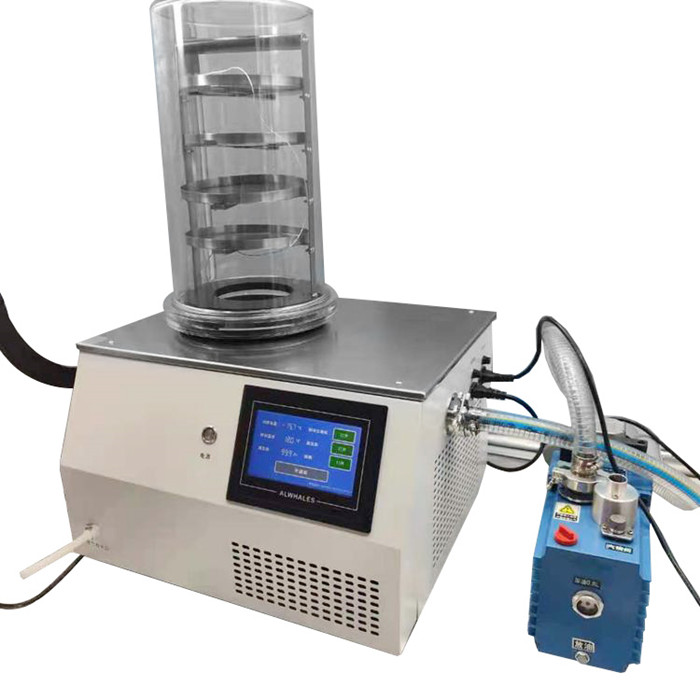

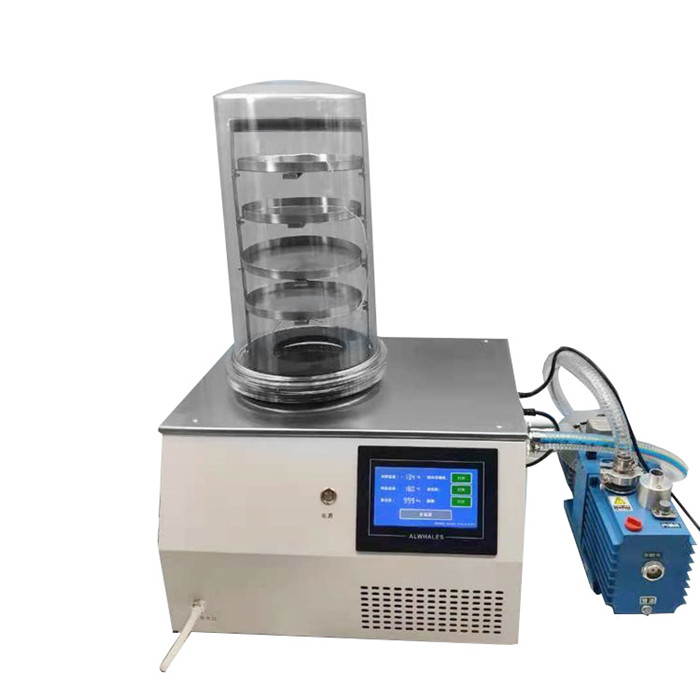

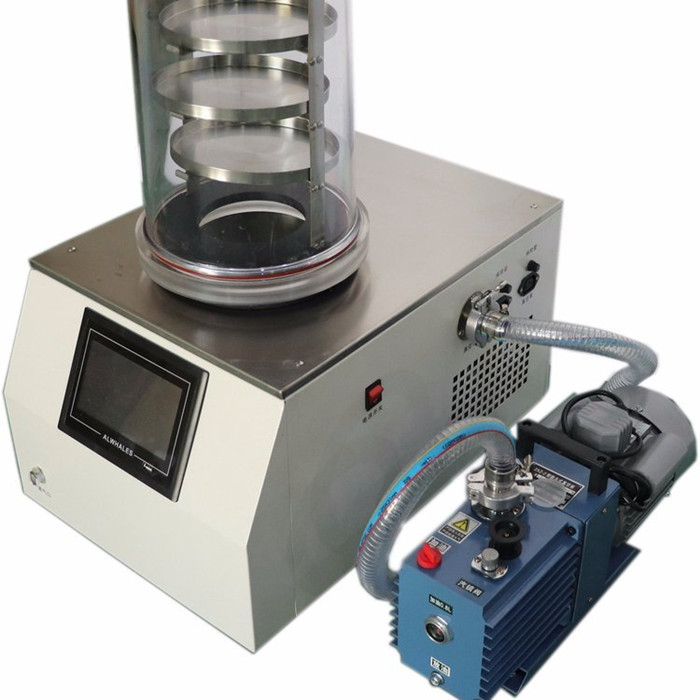

Home Laboraotry Vertical Portable Top Press Freeze Dryer With LCD Touch Screen
Product feature
1. Integral structure design, small volume, no external flange, easy to use, no leakage.
2. All materials in contact with the product shall use inert materials to meet the requirements of GLP.
3. The cold trap and operating table are made of stainless steel, anti-corrosion and easy to clean.
4. All stainless steel inflation (water discharge) valve designed and produced by the company, safe, anti-corrosion, no leakage.
5. Large opening of cold trap, no inner coil, with sample pre-freezing function, no need for low temperature refrigerator.
6. Gas diversion technology, cold trap ice uniform, ice catching ability.
7. Germany Sike Pu compressor, energy saving, long service life, low noise.
8. Brand vacuum pump, high pumping speed, to achieve higher vacuum limit.
9. Vacuum pump protection function, can set the vacuum pump starting cold trap temperature, protect the service life of the vacuum pump.
10. Yuming professional design touch screen freeze-drying machine control system +SH-HPSC-I modular controller, with high reliability and stability.
11. Intelligent data recording system, real-time record and display cold trap temperature curve, sample temperature curve, vacuum degree curve, exported data can be viewed and printed through the computer and a variety of operations.
Specification
|
Type |
SIMY-60A common type |
SIMY-60B gland type
|
SIMY-60C multi-manifold common type |
SIMY-60D multi-manifold gland type |
SIMY-60ET frame type |
SIMY-60G multi-manifold wide mouth bottle type |
|
Freeze-dried area |
0.12㎡ |
0.08㎡ |
0.12㎡ |
0.08㎡ |
- |
0.12㎡ |
|
Cold trap temperature |
<-80℃(no-load) |
|
||||
|
Degree of vacuum |
<5Pa(no-load) |
|
||||
|
Water catching capacity |
3-4Kg/24h |
|
||||
|
Material tray |
200mm total 4 layers (optional 6 layers)
|
180mmTotal 3 layers |
200mmTotal 4 layers(Optional 6 layers) |
180mmTotal 3 layers |
- |
200mm total 4 layers (optional 6 layers)
|
|
Machine power |
970W |
|
||||
|
Main engine weight |
41Kg |
|
||||
|
Outer Size(mm) |
560×500×400mm+(430 bell jar)
|
560×500×400mm+(430 bell jar)
|
560×500×400mm+(430 bell jar)
|
560×500×400mm+(430 bell jar)
|
560×500×400mm+(430 bell jar)
|
560×500×400mm+(430 bell jar)
|
|
Loadable material |
1.2L(Material thickness 10mm) |
0.8L(Material thickness10mm) |
1.2L(Material thickness10mm) |
0.8L(Material thickness10mm) |
- |
1.2L(Material thickness 10mm)
|
|
Can be filled celine bottle |
Ф12mm：920piece |
Ф12mm：492piece |
Ф12mm：920piece |
Ф12mm：492piece |
- |
Ф12mm：920piece |
|
Ф16mm：480piece |
Ф16mm：279piece |
Ф16mm：480piece |
Ф16mm：279piece |
- |
Ф16mm：480piece |
|
|
Ф22mm：260piece |
Ф22mm：147piece |
Ф22mm：260piece |
Ф22mm：147piece |
- |
Ф22mm：260piece |
|
