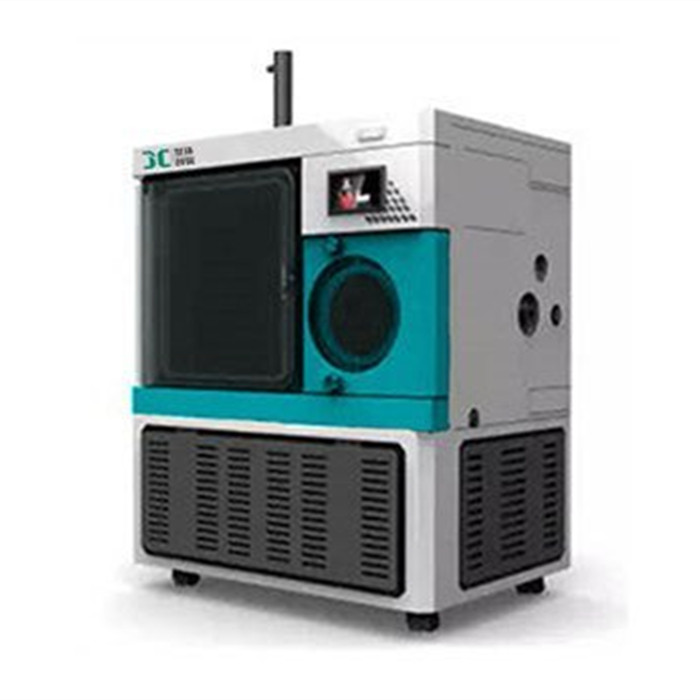

Advanced Industrial Vacuum Food Medicine Biological Product FreezeDryer
Product feature
1. Imported brand super quiet compressor, reliable performance, low noise. Special lubricating oil, used at high and low temperatures can maintain chemical stability, can lubricate the compression moving parts, improve the service life of the compressor;
2. Imported brand filter dryer, efficient filter refrigerant, prevent impurities and moisture into the refrigeration system;
3. The separator uses silicone oil as the medium to achieve the purpose of refrigeration and heating. The temperature error is less than 1℃, and the refrigeration and drying effect is uniform;
4. In situ freeze-drying design to avoid pollution caused by material transfer process; The drying chamber adopts high transparent colorless transparent organic glass door, which can clearly observe the changing process of materials in the operation process;
5. Cold trap and drying chamber separate structure design, strong water catching capacity, short drying time; All stainless steel design, corrosion resistance and easy to clean, each layer of partition equipped with temperature sensor, can monitor the temperature and change characteristics of each layer of materials;
6. Square tray is not easy to deformation, easy to operate and easy to clean;
7. Equipped with air charging valve, can be filled with dry inert gas.
Humanization design
1. 7 inch color touch screen design, intuitive Chinese operation interface, with digital and curve display real-time status and historical data;
2. Large-capacity FAT32 file system stores all data values with a storage capacity of more than one month;
3. With USB data interface, directly plug in the U disk and export freeze-dried data;
4. The temperature of the partition can be adjusted and controllable, and the freeze-drying process can be explored; It is equipped with manual and automatic working modes, and 36 programs can be set in the automatic operation program, each program has 40 temperature control segments, to meet different requirements of freeze-drying process of users;
5. With automatic cream function;
6. Optional: eutectic point test function, master the appropriate sublimation temperature of materials;
7. External freeze-dried bottle function (optional).
Specification
|
Type |
SIMY-20S |
SIMY-30T |
SIMY-50S |
SIMY-50T |
SIMY-100S |
SIMY-100T |
SIMY-200S |
SIMY-200T |
|
|
|
（Standard form） |
（Gland type） |
（Standard form) |
(Gland type) |
(Standard form) |
(Gland type) |
(Standard form) |
(Gland type) |
|
|
Shelf temperature （℃） |
-50~+70 |
||||||||
|
Cold trap temperature （℃） |
-80 |
||||||||
|
Vacuum degree（Pa） |
<10 |
||||||||
|
Freeze-dried area （m2） |
0.24 |
0.3 |
0.5 |
1 |
2 |
||||
|
Water catching capacity （Kg/24h） |
6.5 |
10 |
15 |
40 |
|||||
|
Shelf specification |
300*400*20 |
300*450*20 |
550*480*20 |
600*600*20 |
900*600*20 |
||||
|
（L*W*H mm） |
|
|
|
|
|
||||
|
Number of shelf layers （layer） |
2+1 |
3+1 |
4+1 |
6+1 |
4+1 |
||||
|
Disk loading material （liquid/L） |
4.5 |
7 |
10 |
20 |
40 |
||||
|
Material tray spacing (mm） |
145 |
90 |
100 |
||||||
|
Material pan temperature difference （℃） |
±1 |
||||||||
|
Type of cooling |
Air cooling |
||||||||
|
Electric defrosting |
Have |
||||||||
|
Capping mode |
Without |
Hydraulic pressure |
Without |
Hydraulic pressure |
Without |
Hydraulic pressure |
Without |
Hydraulic pressure |
|
|
Penicillin bottle |
ф22 mm |
468 |
702 |
1040 |
2016 |
4100 |
|||
|
|
ф16 mm |
864 |
1296 |
1944 |
3944 |
7800 |
|||
|
|
ф12 mm |
1584 |
2376 |
3456 |
7020 |
14400 |
|||
|
Power supply |
220V/50Hz |
220V/50Hzor380V/50Hz |
380V/50Hz |
||||||
|
Boundary dimension （W*D*H）mm |
1200*750*1250/1600 |
1200*850*1500/1850 |
1500*850*1600/1950 |
2100*1200*1800/2100 |
|||||
