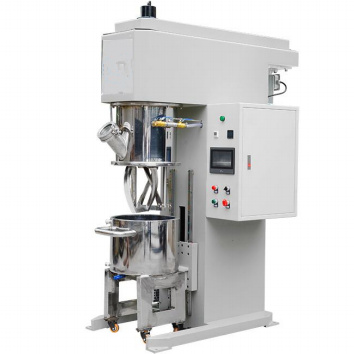

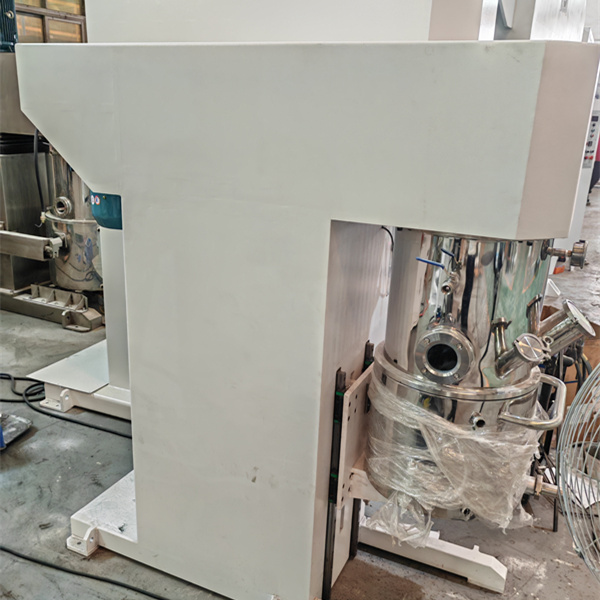

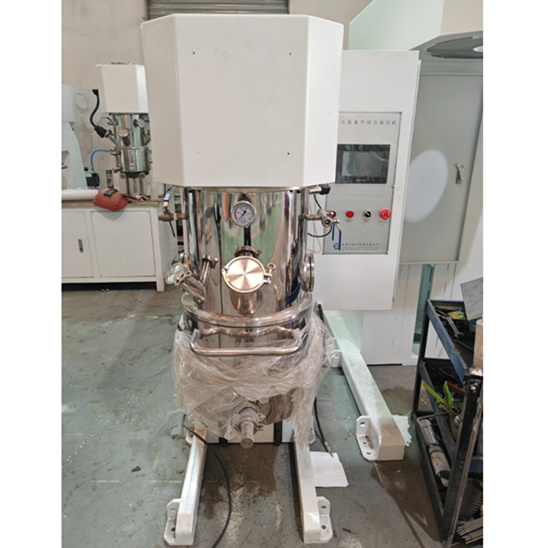

30L / 40L Dual Planetary Power Mixer
Based on the characteristics of high solid content and high viscosity slurry materials, our company has developed an enhanced planetary power mixer with higher rotational speed and larger torque on the basis of the original model. During the design process, full consideration was given to the agitator speed, mixing power, dispersion tip speed, suspension level, liquid flow pattern, and turbulence distribution inside the vessel. The machine consists of a base, crossbeam, column, sealing cover, mixing tank, transmission system, and electrical control system.
1. Equipment Technical Parameters
|
No. |
Item |
Specification |
|
1 |
Vacuum degree |
-0.098 MPa (vacuum pump depends on contract) |
|
2 |
Structure type |
Single-arm type |
|
3 |
Rotational speed (r/min) |
Revolution: 0–50 r/min, Rotation: 0–100 r/min (variable frequency control); High speed: 0–4000 r/min (variable frequency control) |
|
4 |
Low-speed shaft |

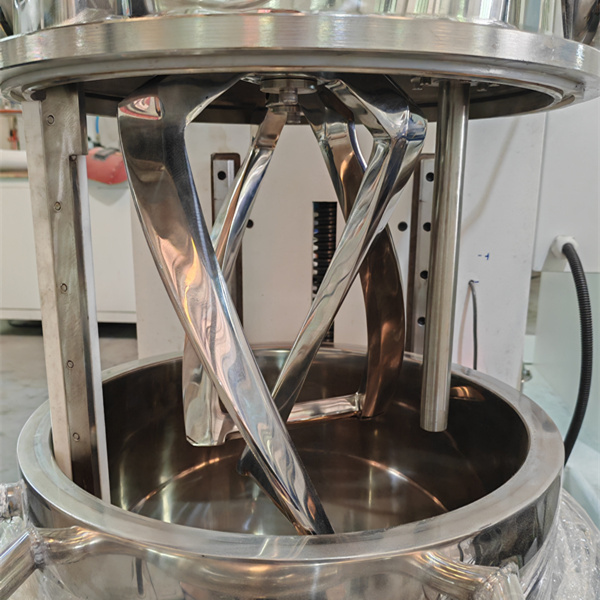

Twin-shaft twisted paddle: 304 stainless steel cast mold, CNC precision machined; includes one set of wall-scraping device |
|
5 |
High-speed shaft |
Dual high-speed shafts, each equipped with two Φ70 dispersing discs (upper disc height adjustable) |
|
6 |
Lifting method |
Linear guide rail tank lifting |
|
7 |
Lifting stroke |
400 mm |
|
8 |
Temperature measurement |
Tank wall temperature measurement |
|
9 |
Tank positioning |
Arc-shaped locating plate with positioning blocks; flange structure on lid ensures centering |
|
10 |
Total power |
11 kW |
|
11 |
Power supply |
AC 3×380 V, 50 Hz |
|
12 |
Overall dimension |
Approx. L 1480 × W 700 × H 1734 mm |
|
13 |
Weight |
Approx. 1170 kg |
Tank Parameters
|
No. |
Item |
Specification |
|
1 |
Tank size (ID × H) |
Φ400 × 320 mm |
|
2 |
Capacity |
40 L |
|
3 |
Design pressure |
Inner vessel: -0.098 MPa; Jacket: 0.8 MPa |
|
4 |
Design temperature |
10 ~ +150 °C |
|
5 |
Main material |
Material contact parts: SUS304; Jacket: Q235; Bottom: SUS304 + Q235-B |
|
6 |
Wall thickness |
Inner vessel δ5 mm (measured after machining); jacket δ3 mm |
|
7 |
Temperature control |
Water cooling jacket |
|
8 |
Discharge type |
Bottom discharge or side discharge (optional) |
|
9 |
Movement method |
Manual |
|
10 |
Tank quantity |
1 unit (optional extra purchase available) |
Main Materials
|
S/N |
Name |
Material |
S/N |
Name |
Material |
|
1 |
Upper vessel |
SUS304 |
4 |
Mixing shaft |
SUS304 |
|
2 |
Lower vessel |
SUS304 |
5 |
Mixing impeller |
SUS304 |
|
3 |
Jacket |
Q235 |
6 |
Frame & base |
Q235-B |
