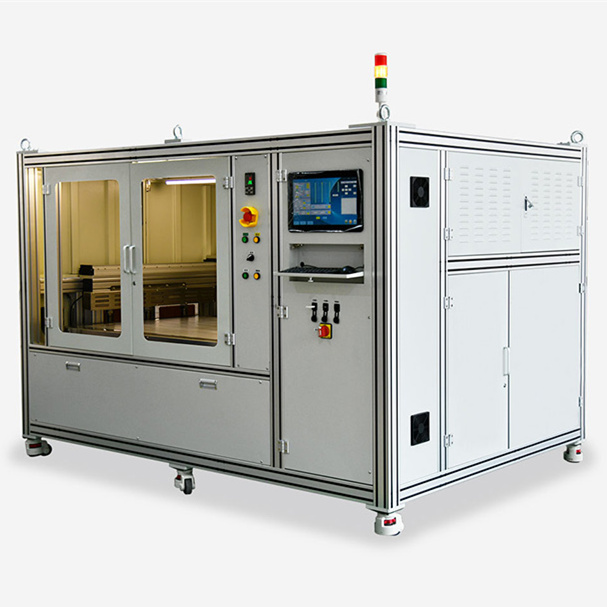

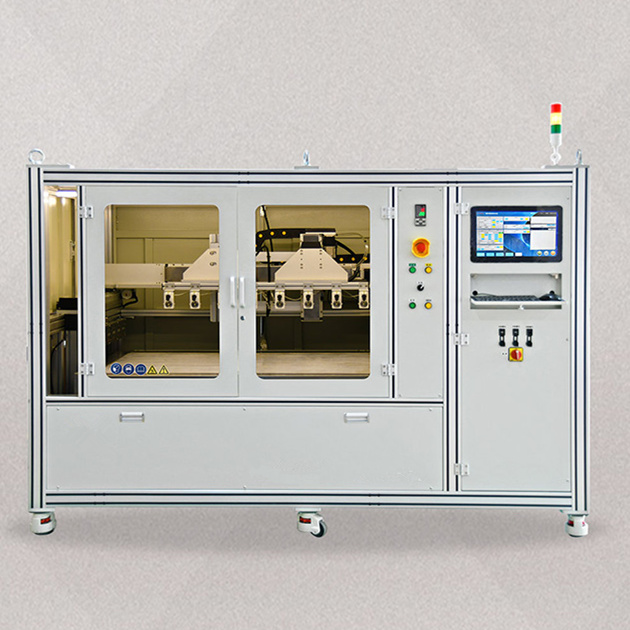

50KHz 8 in 1 Atomizing Spray Ultrasonic Spraying Equipment
The production type 2000 ultrasonic precision spraying machine is mainly developed by enterprises, universities and research institutes that first contact with ultrasonic spraying equipment. The whole equipment has a simple and generous structure and complete functions, mainly including XY double-axis precision motion module, with a comprehensive track editing system, to achieve the spraying function of any two-dimensional plane graphics, such as rectangular and circular curves. It can be equipped with any of Simy's ultrasonic nozzles, precision constant flow injection pump, digital display carrier gas system, ultrasonic dispersion liquid supply system, vacuum adsorption heating substrate and other functions. The whole equipment can also be placed in the fume hood for use.
Specification
|
Overall size |
2500 * 1800 * 1700mm |
|
Maximum spraying area |
customizable |
|
Motion mode |
XYZ three-axis servo motion system, can edit any motion path |
|
Control mode |
high-precision motion card/7-inch touch screen/entity key |
|
Ultrasonic nozzle |
8 sets of any Simy ultrasonic nozzle can be customized |
|
Applicable to 24-hour uninterrupted production |
|
Advantage
Equipped with automatic liquid supply system
24-hour uninterrupted spraying production
It can carry multiple spray heads for integrated and efficient spraying

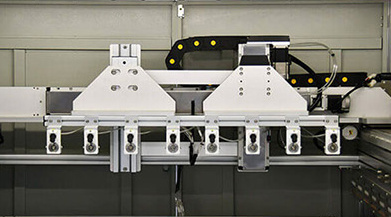

Imported servo motor, fully enclosed motion module
The XYZ three-axis adopts imported servo motor, and the module adopts the fully closed linear lead screw module, which significantly improves the service life, and the repeated positioning accuracy can reach 0.01mm

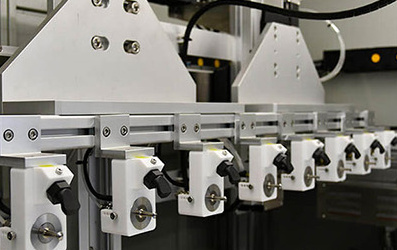

Ultrasonic nozzle system
There are dozens of ultrasonic nozzles developed and produced by Simy, which can be applied to various working conditions and film thickness requirements

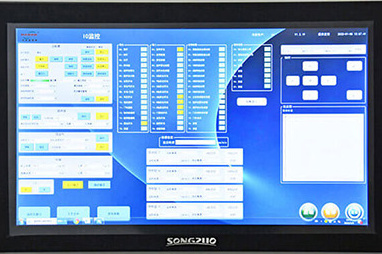

Control system
Equipped with the control system developed by Simy for ultrasonic spraying, it is fast and easy to operate. It can integrate and control the functions and functions of ultrasonic atomization, ultrasonic dispersion, injection pump, flow guide gas, heating table and vacuum adsorption plate, including the functions of one-key generation of common template tracks and G code complex track editing.
