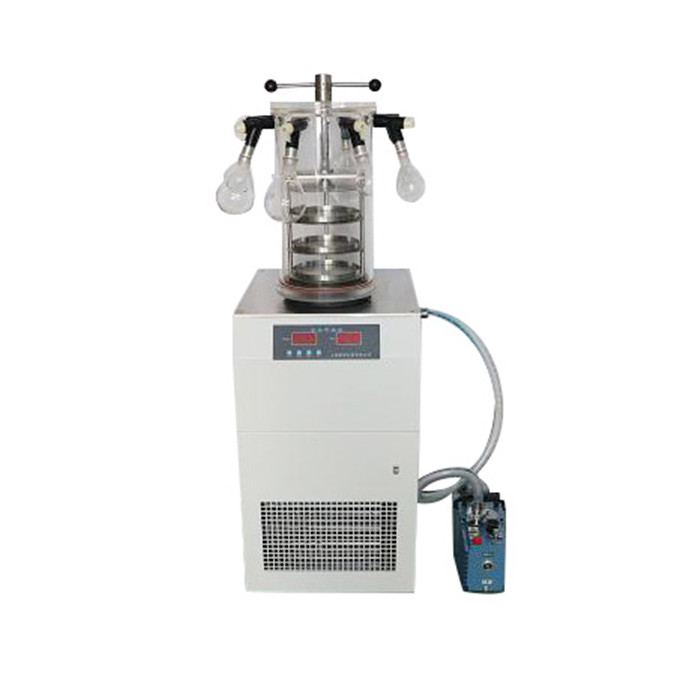

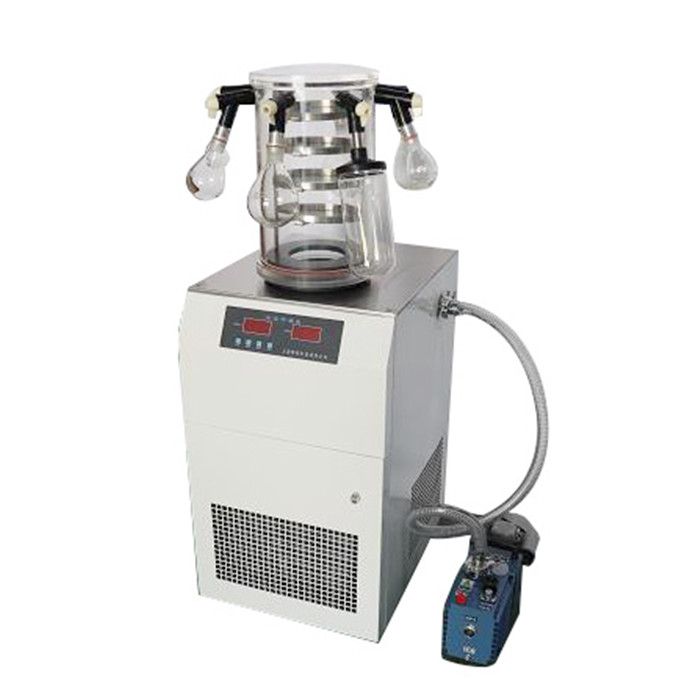

Graphene Vacuum Lyophilizer Biopharmaceuticals Vacuum Freeze Dryer
Product feature
● Desktop design, compact, occupy the table small.
Beautiful appearance, ergonomic design, easy to operate.
● Fully enclosed compressor, reliable, low noise.
● Large cold trap opening, with sample pre-freezing function.
The cold trap is all stainless steel, no coil in the cold trap, clean and corrosion resistant.
● Design flow guide tube, improve the effective area of cold trap, fast freeze-drying.
● Filling valve, can be filled with dry nitrogen or inert gas.
● Transparent bell jar type drying chamber, safe and intuitive.
● Standard vacuum interface, can be used with a variety of vacuum pumps.
● Digital display temperature and vacuum degree. ● Sample temperature display (optional).
Specification
|
Condensing temperature |
-80℃ |
|
True space degree |
20Pa |
|
Freeze drying area |
0.12㎡ |
|
Tray loaded material |
1.2 liters |
|
Water capture capacity |
3kg/24h |
|
Sample plate |
Φ200mm×4 layers |
|
Power requirement |
220V 50Hz 1300W |
|
Main engine size |
492×540×800mm standard configuration main engine, 2 liters domestic vacuum pump, ordinary drying device (Φ200mm sample plate 4) |
