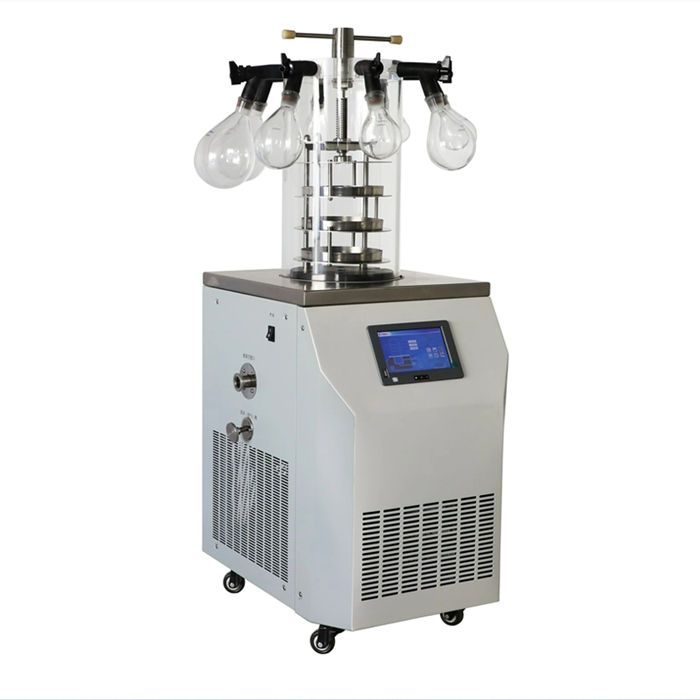

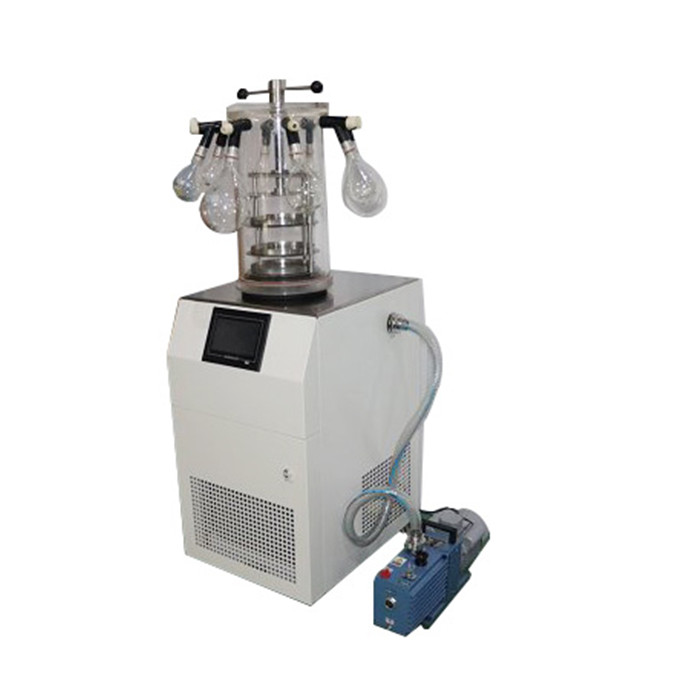

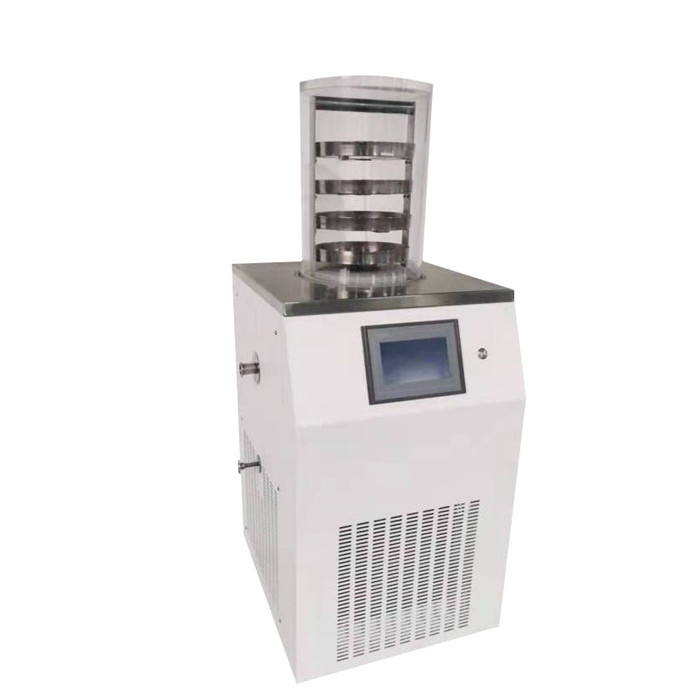

Touch Screen LCD Display Multi-Pipe Top Press Lab Freeze Dryer
Product feature
● Desktop design, compact, occupy the table small.
Beautiful appearance, ergonomic design, easy to operate.
● Fully enclosed compressor, reliable, low noise.
● Large cold trap opening, with sample pre-freezing function.
The cold trap is all stainless steel, no coil in the cold trap, clean and corrosion resistant.
● Design flow guide tube, improve the effective area of cold trap, fast freeze-drying.
● Filling valve, can be filled with dry nitrogen or inert gas.
● Transparent bell jar type drying chamber, safe and intuitive.
● Standard vacuum interface, can be used with a variety of vacuum pumps.
● Digital display temperature and vacuum degree.
● Sample temperature display (optional).
● Vacuum pump protection function, can set the vacuum pump start temperature of cold trap, to protect the service life of the vacuum pump.
● Professional design LGJ freeze-dry machine control system + SH - HPSC -i modular controller, has high reliability and stability.
● Intelligent data recording system, real time record and display the cold trap temperature curve, sample temperature curve, vacuum degree, export data can scan, print and various operating through the computer.
Specification
|
Type |
SIMY-18A ordinary type |
SIMY-18B gland type |
SIMY-18C hanging bottle type |
SIMY-18D gland hanging bottle type |
SIMY-18E（T type） |
|
Freeze-dried area |
0.12㎡ |
0.08㎡ |
0.12㎡ |
0.08㎡ |
- |
|
Cold trap temperature |
<-80℃(no-load) |
||||
|
Degree of vacuum |
<5Pa(no-load) |
||||
|
Water catching capacity |
3-4Kg/24h |
||||
|
Material tray |
200mmTotal 4 layers (Optional 6 layers) |
180mmTotal3 layers |
200mmTotal 4 layers(Optional 6 layers) |
180mmTotal3 layers |
- |
|
Machine power |
970W |
||||
|
Main engine weight |
41Kg |
||||
|
Outer Size(mm) |
600×500×900+(430immersion bell) |
600×500×900+(430 immersion bell) |
600×500×900+(430immersion bell) |
600×500×900+(430immersion bell) |
600x500x900+(440) |
|
Loadable material |
1.2L(Material thickness 10mm) |
0.8L(Material thickness10mm) |
1.2L(Material thickness10mm) |
0.8L(Material thickness10mm) |
- |
|
Can be filled celine bottle |
Ф12mm：920piece |
Ф12mm：492piece |
Ф12mm：920piece |
Ф12mm：492piece |
- |
|
Ф16mm：480piece |
Ф16mm：279piece |
Ф16mm：480piece |
Ф16mm：279piece |
- |
|
|
Ф22mm：260piece |
Ф22mm：147piece |
Ф22mm：260piece |
Ф22mm：147piece |
- |
|
