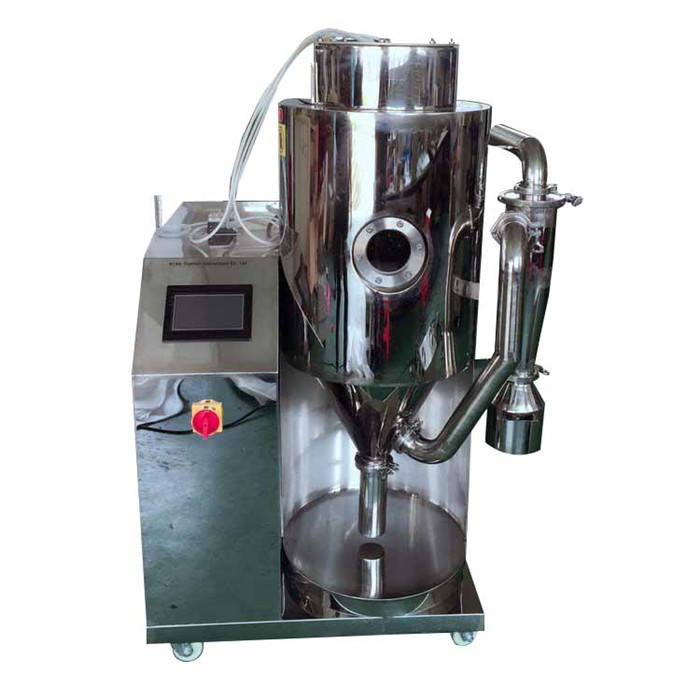

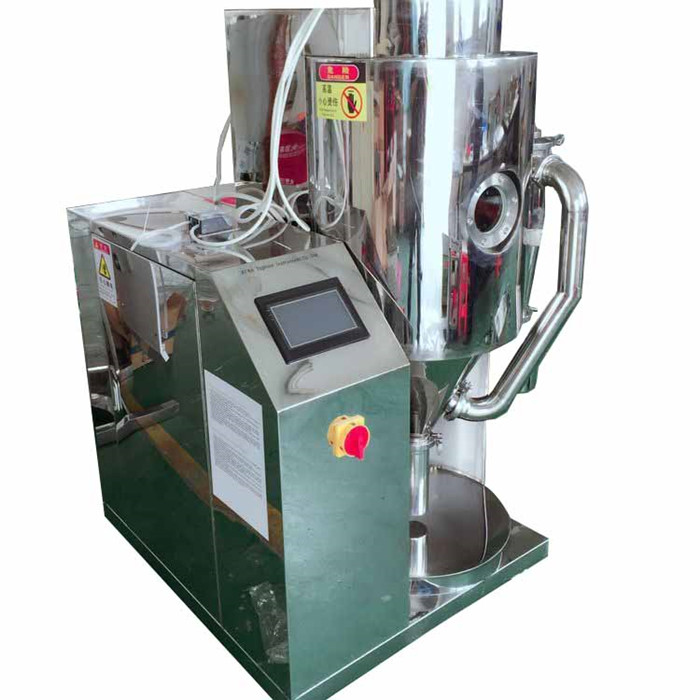

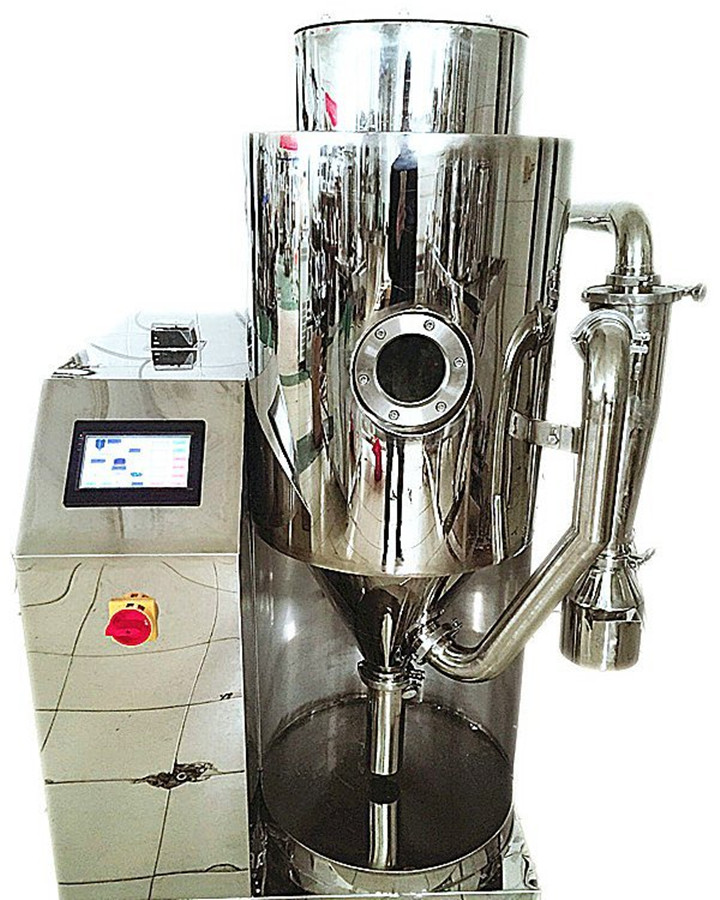

All Stainless Steel Small Laboratory Spray Dryer Spray Drying Equipment Mini Lab Spray Dryer Machine

All Stainless Steel Small Laboratory Spray Dryer Spray Drying Equipment Mini Lab Spray Dryer Machine

Features

● Original nozzle (dual fluid nozzle). (Optional centrifugal nozzle)

● Color LCD touch screen parameter display: air inlet temperature/air outlet temperature/peristaltic pump speed/air volume/needle frequency.

● Automatic control: one-button startup, spray process parameters set, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the touch screen display running animation, running process is clearly displayed; Just press the stop button to shut down the machine automatically and safely.

● Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, the whole experiment process color touch screen dynamic display (animation)

● Equipped with nozzle cleaner (through needle), when the nozzle is blocked, will be automatically removed, through the frequency of the needle can be automatically adjusted.

● Shutdown protection function: when shutdown, just press the stop button, the machine in addition to the fan immediately stop running, to ensure that the equipment will not be due to misoperation (forced to close the fan) and lead to the heating part burned out.

● The whole system is made of stainless steel material, so that the drying process in a pollution-free environment.

● Built-in oil-free air compressor, the diameter of the powder is normally distributed, the fluidity is very good, the noise is very low, less than 60db.

● Two fluid spray atomizing structure, the whole machine is made of stainless steel material, compact design, no auxiliary equipment.

● The design of drying temperature control using real-time regulation PID constant temperature control technology, so that the temperature control of the whole temperature area is accurate, heating temperature control accuracy of ±1℃.

● In order to keep the sample pure, equipped with air inlet filter.

● Feed amount can be adjusted by feed peristaltic pump, small sample size up to 50ml.

● After drying the finished dry powder, its particle size is more uniform, more than 95% dry powder in the same particle size range.

● For viscous materials, with nozzle cleaner (through needle), when the nozzle is blocked, will be automatically removed, through the frequency of the needle can be automatically adjusted.

● Innovative tower wall purge device, higher material recovery.

Specification
