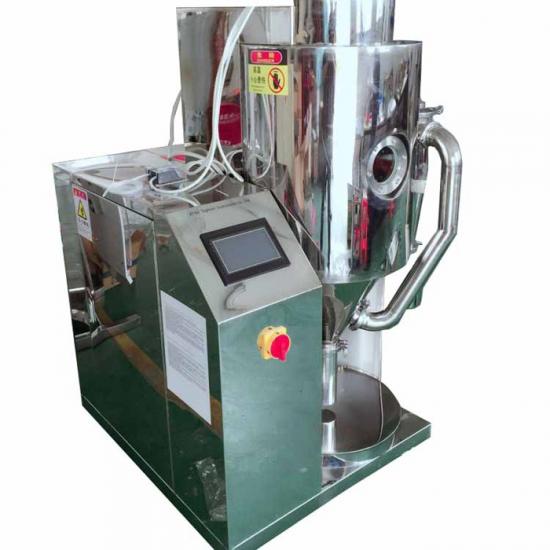

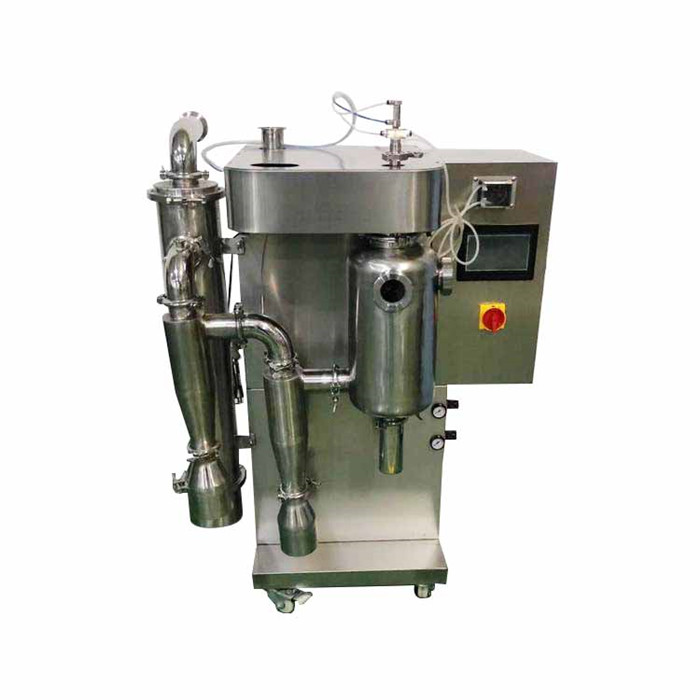

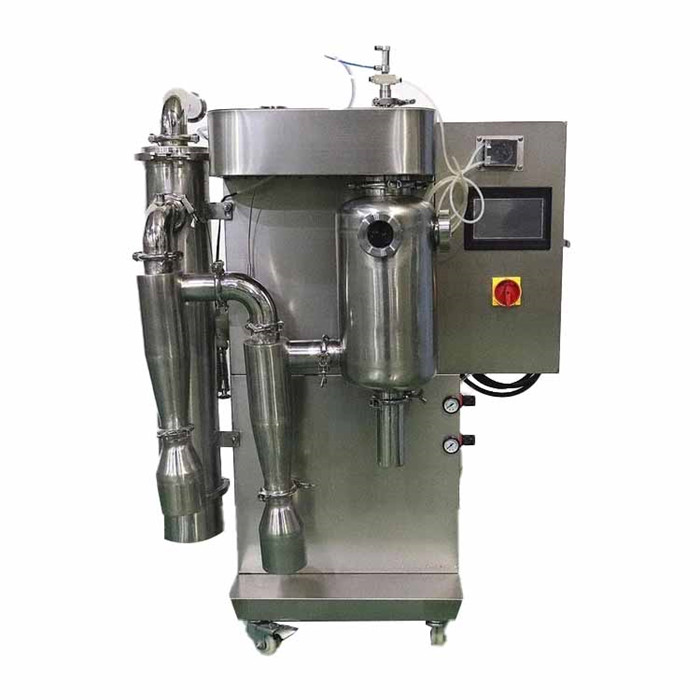

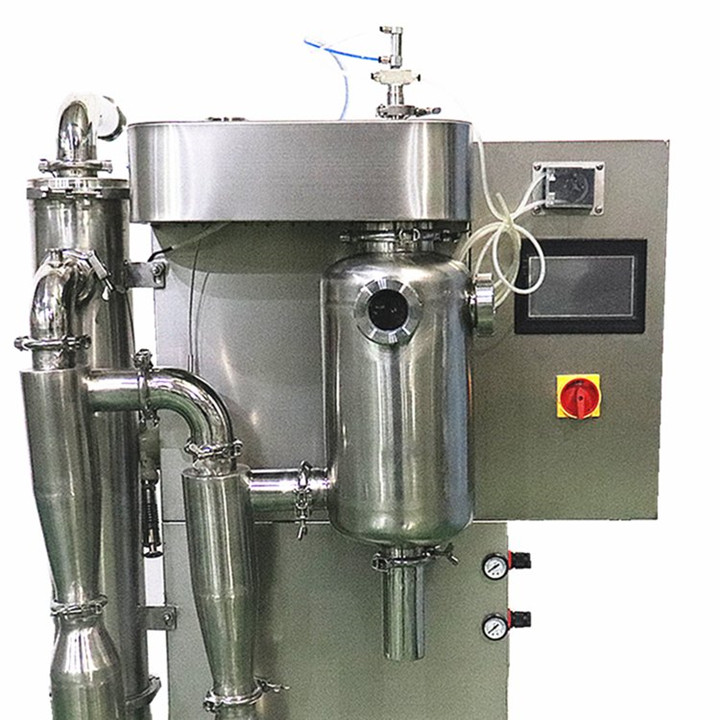

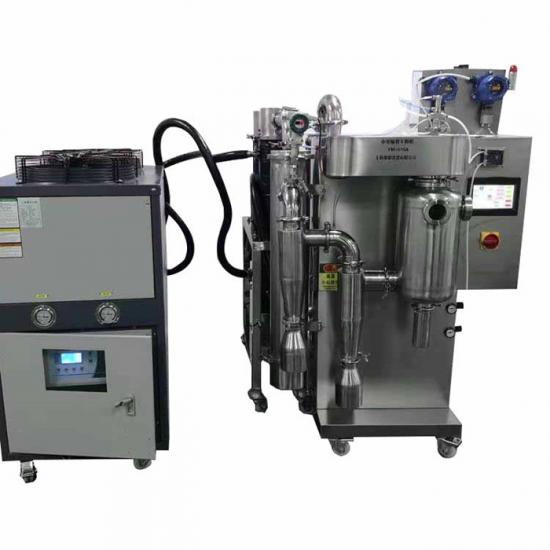

All Stainless Steel Double Separation Filter Experimental Spray Dryer
Product Introduction
It is suitable for universities, research institutes and laboratories of food, medicine and chemical enterprises to produce microparticle powder. It is widely applicable to all solutions such as emulsion and suspension, and is suitable for drying heat-sensitive substances such as biological products, biological pesticides, enzyme preparations, etc. Because the sprayed material is only exposed to high temperature and instantaneous heating when it is sprayed into a fog, the active material retains its active composition after drying. Specifically used in the following fields: beverage spices and pigments milk and egg products plant and vegetable extracts pharmaceutical synthesis thermosensitive substances plastic polymers and resins aromatic agents blood products ceramics and superconductors biochemical products dyes soap and detergents food adhesives oxides bone powder and tooth powder graphene and so on.
Main feature
● Original sprinkler, high efficiency.
● Seven-inch color touch screen operation, automatic control and manual control combined, Chinese and English panel, parameter LCD display.
● Real-time control PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ±1℃.
● The spray, drying and collection device is made of transparent high temperature resistant borosilicate glass, and the whole spray drying experiment process is visible.
● Two fluid spray atomization structure, high precision 316 stainless steel material manufacturing, powder particle diameter is normal distribution, good fluidity.
● The jet is automatically dredged (through the needle) and the frequency is adjustable. When the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
● Feed volume can be adjusted by feeding peristaltic pump.
● Unique protection function, the fan does not start, the heater can not start.
● Built-in oil-free air compressor, noise less than 50db.
● Equipped with air inlet filter to ensure sample purity.
● After drying the product, the particle size is uniform, more than 95% of the dry powder in the same particle size.
● Double separator separates samples. Double sample bottle collection to improve sample collection rate.
Specification
|
Air inlet temperature control |
30～300℃ |
|
Air outlet temperature control |
30～150℃ |
|
Evaporated water |
1500mL/H～2000ml/h |
|
Large feed volume |
2000mL/H |
|
Small feed quantity |
50mL |
|
Mode of feeding |
Peristaltic pump adjustment |
|
Mean drying time |
1.0~1.5S |
|
Electric heater power |
4KW AC220V single phase ground |
|
Draught fan/blowing rate/wind pressure |
0.55KW/105m3/min/19（kpa） |
|
Air compressor/gas production rate |
0.55KW 4.2 m3/h |
|
Compressed air working pressure |
2～4Bar |
|
Contour size of the unit(s) |
1300mm(height) ×650mm (length) ×850mm (width) |
|
Nozzle diameter |
0.5 mm / 0.75 mm / 1.0 mm / 1.5 mm / 2.0 mm optional 1 standard 1.0 mm |
|
Weight |
155KG |
|
Name |
Quantity |
|
Stainless steel main engine |
1 set |
|
Stainless steel drying chamber |
1 |
|
Stainless steel cyclone separator |
2 |
|
Stainless steel sample collection bottle |
2 |
|
Stainless steel high temperature resistant filter |
One set (100 mesh) filter optional mesh number |
|
Stainless steel sample waste bottle |
1 |
|
Imported feed silicone tube |
2 meters |
|
Sprinkler head 316 material |
a suit |
|
Stainless steel clamp/spacer |
12 each |
|
The trachea is 3/6mm |
3 sticks |
|
Exhaust duct/elbow |
One of each |
