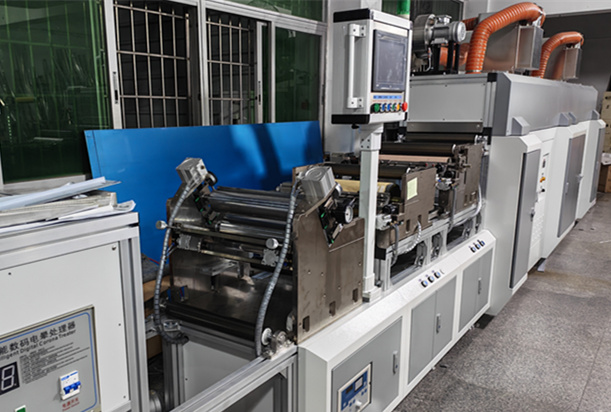

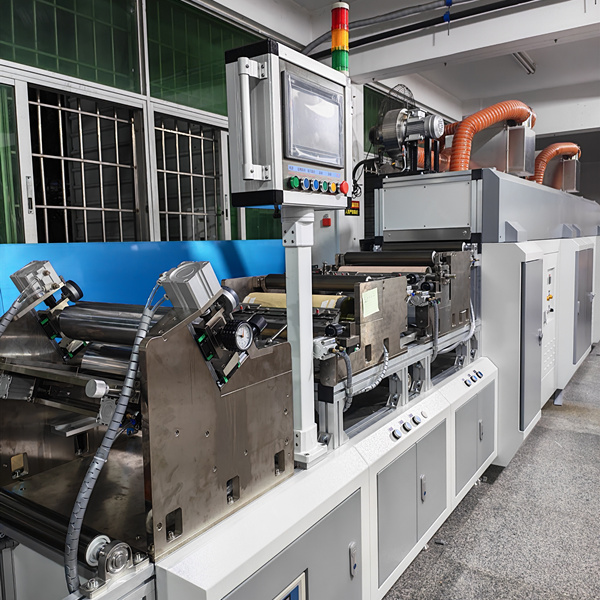

High Performance Gravure Coating Solution for PVDF and Aramid Functional Coatings
This gravure coating machine is specifically designed for high-performance functional coatings, such as PVDF (Polyvinylidene Fluoride) and aramid-based coatings, widely used in battery separators, insulation materials, and high-temperature resistant applications.
With advanced gravure coating technology, the system ensures precise coating weight control, excellent uniformity, and strong adhesion performance, meeting the demanding requirements of modern energy and advanced material industries.
| Specification Parameters for coating machine | |||||
| Control system | independently developed | ||||
| Coating width | 200-1000mm customised | ||||
| Roller width | 200-1050mm customised | ||||
| Coating head | Gravure roll | ||||
| Coating thickness | 0.01-5MM (uniformity ± 3%) | ||||
| Coating speed | 1-20m/min advised (adjustable according to the drying condition of the glue) | ||||
| Heating oven | 2-20 meters | ||||
| Temperture | Heated air circulation,upto 200C | ||||
| Drying passage roller | 304 stainless steel | ||||
| Drying channel material | 304 stainless steel (box) | ||||
| Drying channel lifting | cylinder lifting | ||||
| Feeding | Peristaltic pump + feeding system | ||||
| Cutting device |
Optional |
||||
| Tension control | adjustable tension | ||||
| Deviation correction device | fully automatic deviation correction for receiving materials | ||||
| Drying blower | adjustable speed | ||||
| Inflation shaft | 3-inch inflation shaft | ||||
| Winding diameter | 500mm | ||||
| Equipment power supply | 380V | ||||
| Certification | CE | ||||
