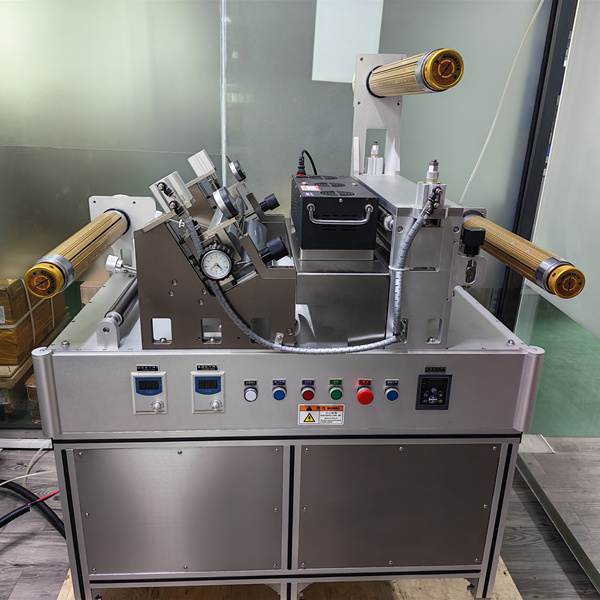

Compact Vertical Customizable Roll-to-Roll Coating Machine with Comma Bar / Doctor Blade / Micro Gravure / Slot-Die, UV or Hot Air Drying
The SIMY-LAB-UV100 is acompact, precision laboratory-grade UV lamination machine designed forPET films, optical films, and electronic materials. This machine is ideal forR&D applications and small-scale production, ensuring high-precision lamination and fast UV curing with a bubble-free, uniform adhesive layer.
Applications
R&D Laboratories – Ideal for testing new optical films, electronic films, and protective coatings.
PET Film UV Lamination – Evaluate UV adhesive performance on PET substrates.
Automotive Film Testing – PPF, TPU protective film lamination and UV curing research.
Key Features
1. High-Precision Lamination
Equipped with aprecision roller system for bubble-free PET film lamination.
OptionalCCD visual alignment system for enhanced accuracy.
2. Fast UV Curing
Built-in365nm/395nm dual-wavelength UV LED for optimal curing of various UV adhesives.
Energy-efficient LED-UV light source for rapid curing and lower energy consumption.
3. Compact Laboratory Design
Space-saving design with a footprint of600mm × 400mm × 450mm.
Ideal formaterial research, prototype testing, and small-scale production.
4. Versatile Material Compatibility
SupportsPET, PC, PI, glass, PMMA, and other substrates.
Suitable forOCA optical bonding, electronic film lamination, and automotive film testing.
5. Flexible Adjustment & Automated Control
Adjustablelamination pressure, UV curing time, and roller speed to meet various material needs.
Touchscreen control panel for precise adjustment oftemperature, pressure, and UV intensity.
Technical Specifications
|
Item |
Specification |
|
Product Name |
SIMY-ZN Automatic Coating Machine |
|
Applications |
Phone case, automotive products, special films, various films. |
|
Substrates |
PET or other films |
|
Control System |
Self-developed |
|
Coating Width |
10- 200mm or customised |
|
Coating Methods |
Comma Bar / Doctor Blade / Micro Gravure / Slot-Die |
|
Coating Thickness |
0.01–1mm |
|
Coating Accuracy |
Uniformity ±3% |
|
Coating Thickness Measurement |
Digital Micrometers |
|
Oven length |
1m, hot air or UV drying |
|
Coating Speed |
0.5–3 m/min（Adjustable according to glue drying condition） |
|
Solution Feeding Methods |
Manual glue supply |
|
Rewind and Unwind Diameter |
300mm |
|
Rewind and Unwind Airshafts |
3-inch Airshaft |
|
Post Lamination |
Rubber Roller |
|
Tension Control System |
Adjustable |
|
Power Source |
AC220V Input Voltage: AC220V |
|
Power Capacity |
6KW |
