Three Layer Film Blowing Machine 2 layer PE LDPE HDPE Blown Film Production Line

This machine is the main equipment of the film blowing machine, and its function is to plasticize and extrude polymer.It is used to blowing various of LDPE thermal shrinking film and HDPE film rolls.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-ZK
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

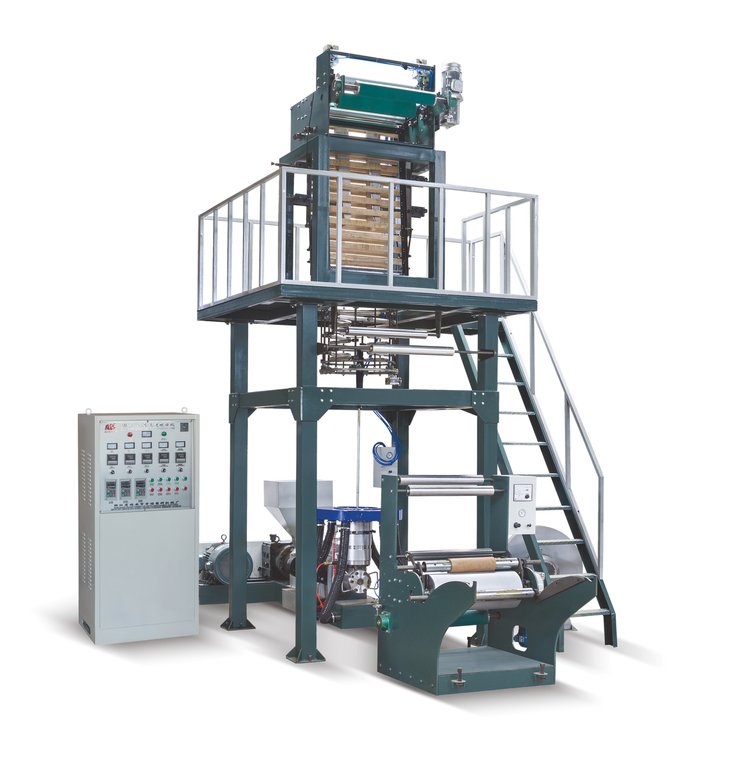

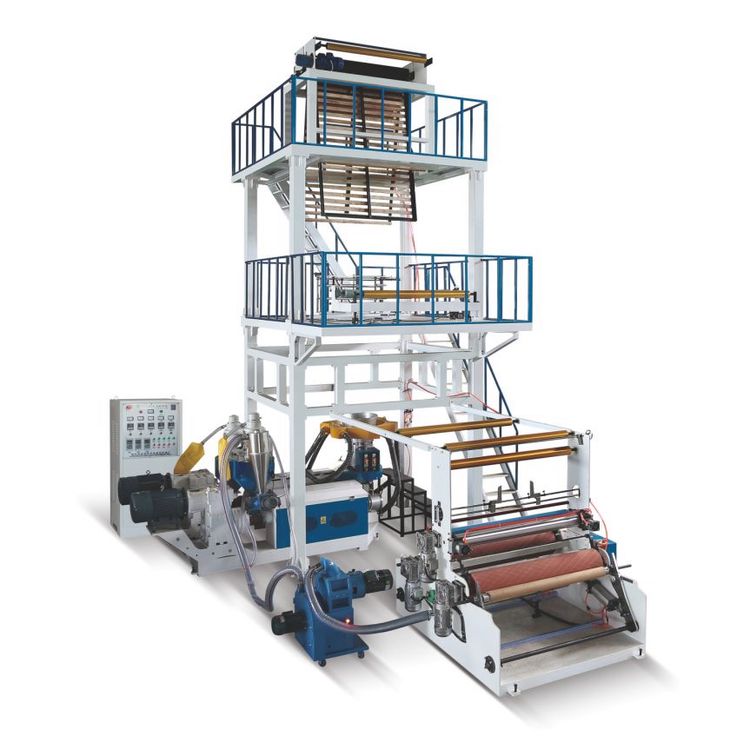

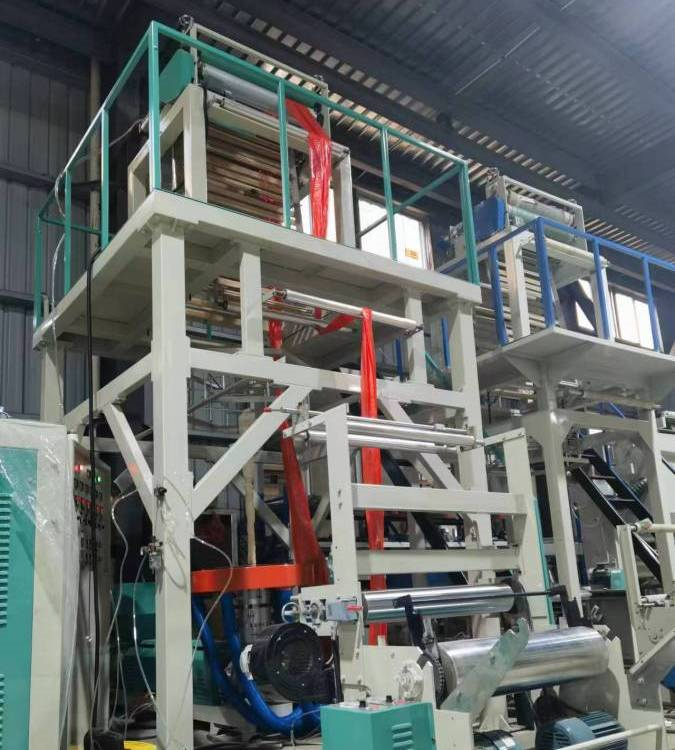

Three Layer Film Blowing Machine 2 layer PE LDPE HDPE Blown Film Production Line

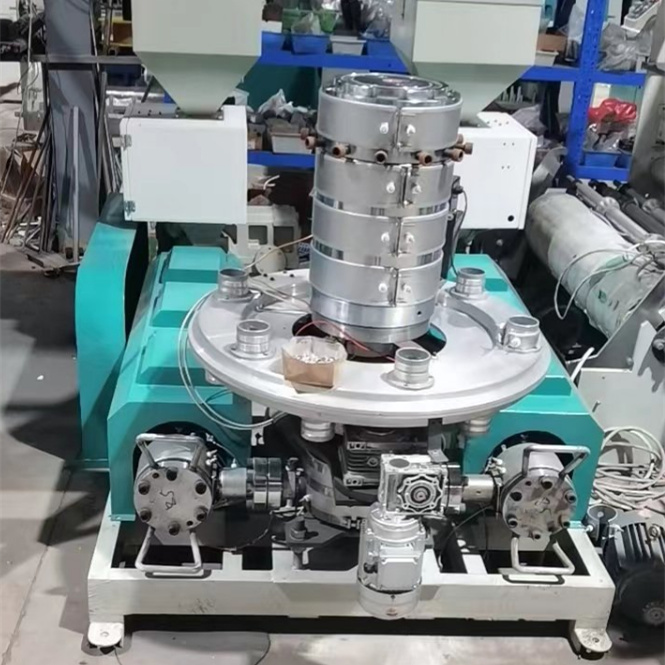

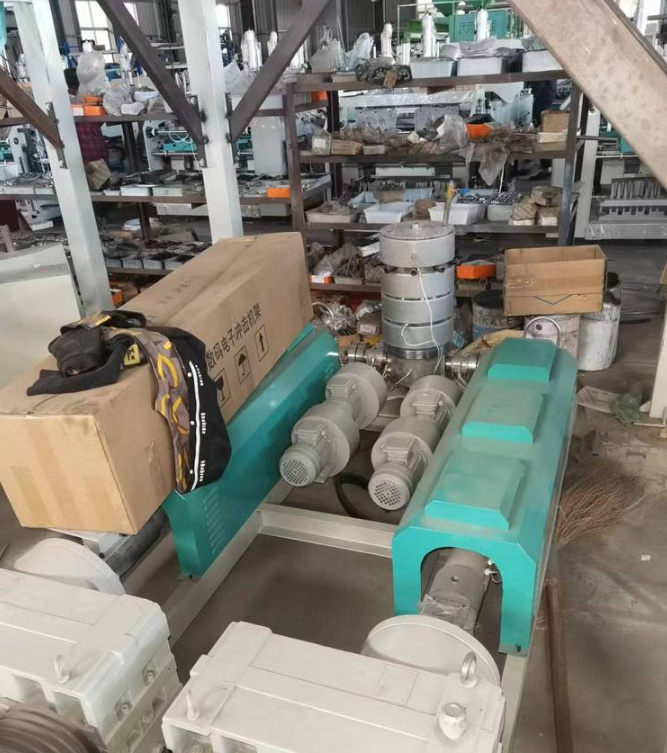

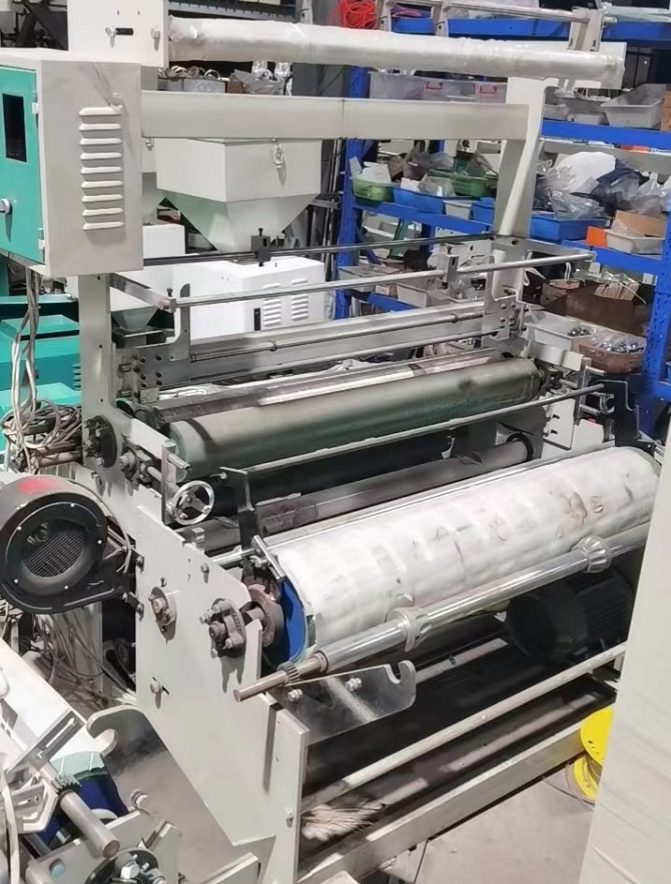

The cylinder and the screw stems of the above extruders are made of high quality alloy steel with optimum hardness and strong corrosion resistance which after precision accomplishment and nitrogen treatment.The auxiliary machine has a platform working table for making operation easy.The coiling unit adopts torque motor to keep proper tension and make rolling even regular and roll-changing easy.

It is used to blowing various of LDPE thermal shrinking film and HDPE film rolls which are applied extensively to food, Medicine,
beer bottle, material bottle, box, case, cloth reel, floor, glass, all sizes of trays, pottery, tissue, etc.


Specification

Model

ZK-45×2/FM600

ZK-50×2/FM800

zk-55×2/FM1000

Screw Diameter

2×45mm

2×50mm

2×55mm

Screw Ratio

L/D30:1

L/D30:1

L/D30:1

Screw Speed

2-120r/min

2-120r/min

12-120r/min

Output of Single-desk Extrude Machine

50kg/h

70kg/h

90kg/h

Power of Main Motor

2×11Kw

2×11Kw

2×15Kw

Rotaona   ModeoMachneHead

Connuo   usoao    n

Contnuousoao    n

Continuous rotation

Single-sided Thickness of Film

00200m   m

0.02-0.10mm

0.02-0.10mm

Max Folding Width of Film

600mm

800mm

1000mm

Toaower

42Kw

53Kw

65Kw

Weight of Machine

3500kg

4500kg

5200kg

Overall Dimensions

4200×2200×4600mm

4600×2400×5000mm

5200×2700×6000mm
