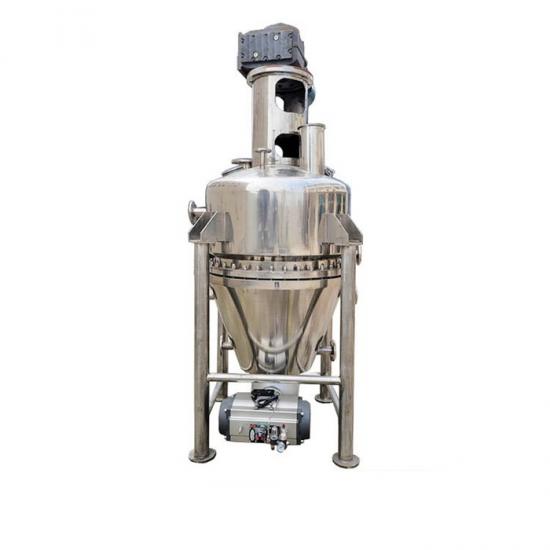

Filtering Washing And Drying Three In One Multi-Function Equipment
Principle
Three in one is the filtration, washing and drying of three processes in a machine to complete the whole process of solid discharge. At the same time, it can replace the filter, pressure filter, double cone dryer, drying box and so on. It can realize the continuous operation and production of the whole process, which is more suitable for the production of sterile products and toxic products.
1. Mixing system consists of seal, mixing shaft and agitator. The agitator can rotate positive and negative, and drive the shaft to rotate after decelerating through the motor reducer. The frequency conversion speed regulation controls the speed of 0-20 RPM. The agitator can be raised and lowered through hydraulic control.
2. The heating system is composed of floor heating system, jacket heating system and stirring shaft heating system, which can realize multi-directional heating at the same time to obtain the maximum effect and the shortest time for drying materials.
3. The bottom plate is detachable bottom plate, through the hydraulic cylinder to achieve disassembly and clamping, the lower part of the wheel, can be convenient to clean the filter plate.
4. Solid file system. Manual control of the file valve. The inner side of the spool is anastomoted with the inner wall of the equipment barrel after the spool is closed, which does not affect the inner stirring action.
Performance characteristics
1, One machine multi-energy, set slurry, filtration, washing, drying in one.
2, Fully sealed operation, especially suitable for toxic, harmful and contaminated materials.
3, For special requirements of the material can be repeated slurry, filter.
4, Easy replacement of filter layer.
5, PLC automatic control, unmanned operation.
6, In situ sampling, material condition control at any time.
7, Compact structure, easy installation, small footprint.
8, Low energy consumption, smooth operation, no vibration and noise.
9, Can be thoroughly cleaned, in line with GMP standards.
