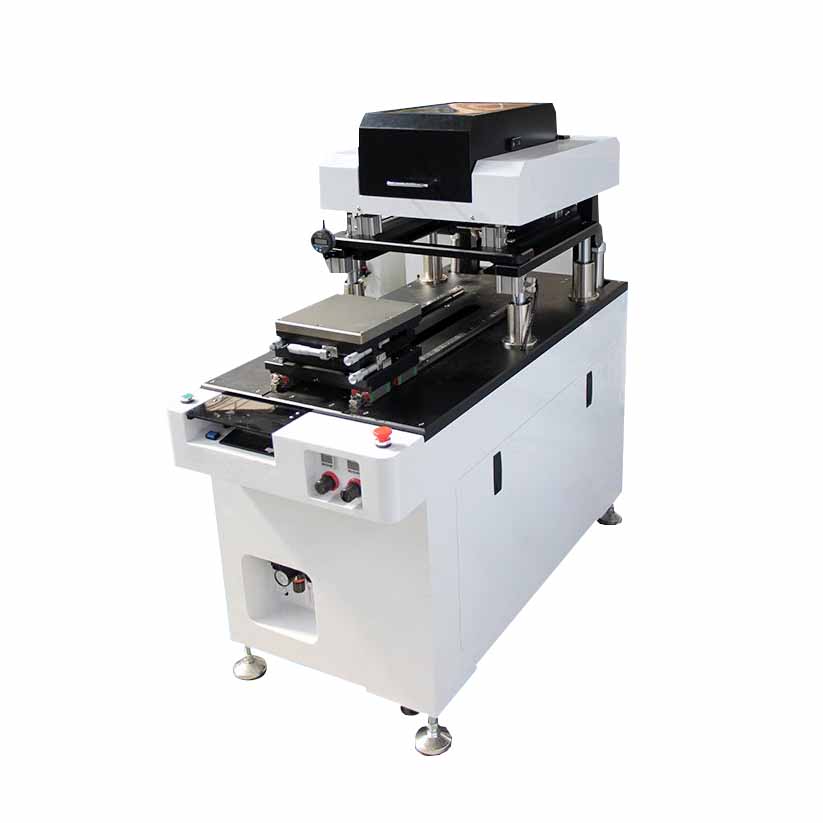

Thick Film Circuit Screen Printing Machine
Application

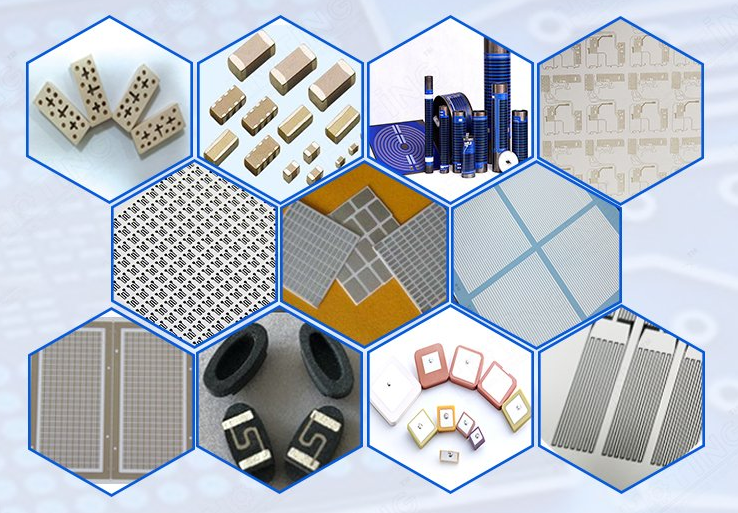

LED ceramic substrate, ceramic capacitor, filter, thick film circuit etc printing.
Advantages
1. High precision printing effect through reasonable design, fine parts processing and PLC program setting.
2. Convenient one touch screen frame clamp.
3. High precision roller screw keep squeegee scraper even speed.
4. Using micro direction adjustment keep printing position accurate and instant.
5. Precision manufacturing alloy workplatform to keep printing evenness.
6. Installing adjustable squeegee pressure regulator.
7. Compact equipment and low noise design improve the influence of working area and environment.
Specification Parameter
|
Model |
SIMY-1515B |
|
Max printing size |
156 X 156mm |
|
Max worktable size |
236 X 236mm |
|
Printing speed |
500 cycle/hour |
|
Max frame size |
355 X 355mm |
|
Worktable tolerance |
±10um |
|
Printing repeat accuracy |
±10um |
|
Weight |
Approx. 380kg |
|
Power |
220V X 1P X 1KW |
|
Printing material fixed |
Suction by Ring Blower |
