Lab Small-Scale UV Laminating & Coating Machine

Lab Small-Scale UV Laminating & Coating Machine

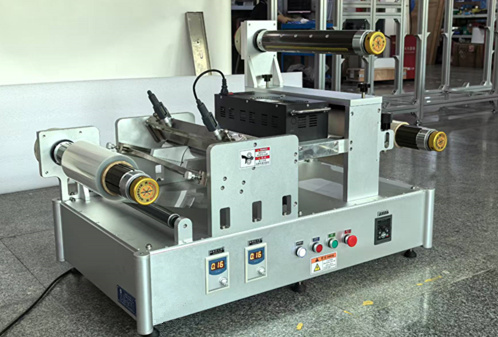

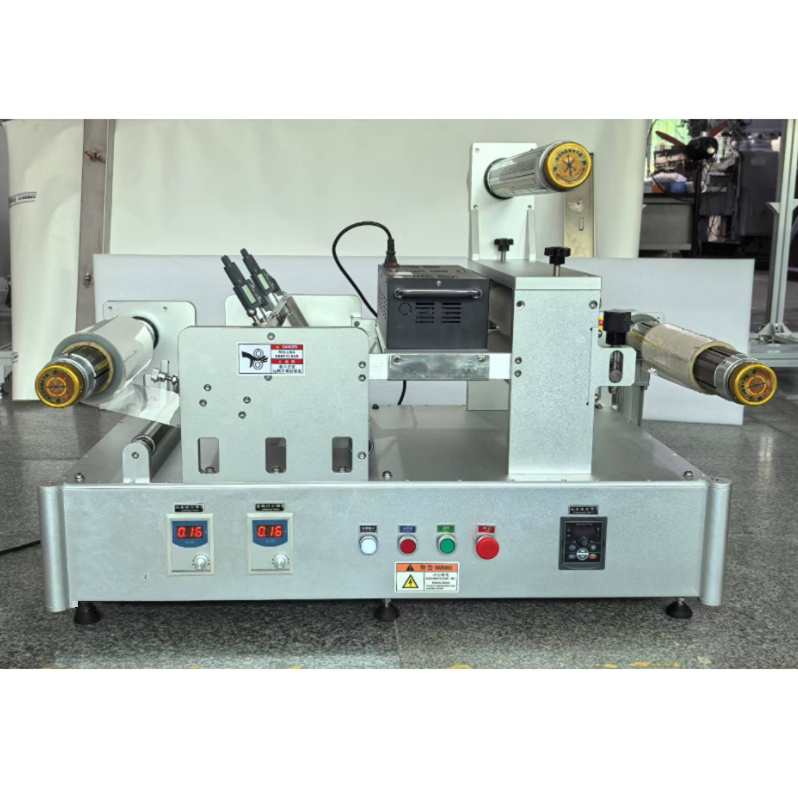

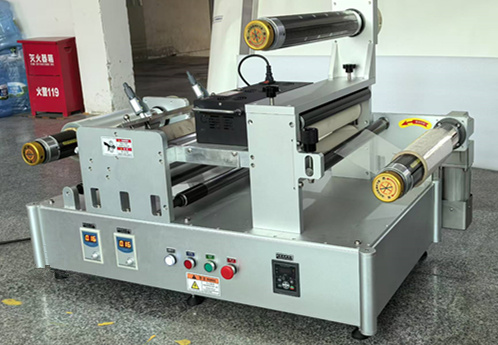

The SIMY-LAB-UV100 is acompact, precision laboratory-grade UV lamination machine designed forPET films, optical films, and electronic materials. This machine is ideal forR&D applications and small-scale production, ensuring high-precision lamination and fast UV curing with a bubble-free, uniform adhesive layer.

Applications

R&D Laboratories – Ideal for testing new optical films, electronic films, and protective coatings.
PET Film UV Lamination – Evaluate UV adhesive performance on PET substrates.
Automotive Film Testing – PPF, TPU protective film lamination and UV curing research.

Key Features

1. High-Precision Lamination

Equipped with aprecision roller system for bubble-free PET film lamination.

OptionalCCD visual alignment system for enhanced accuracy.

2. Fast UV Curing

Built-in365nm/395nm dual-wavelength UV LED for optimal curing of various UV adhesives.

Energy-efficient LED-UV light source for rapid curing and lower energy consumption.

3. Compact Laboratory Design

Space-saving design with a footprint of600mm × 400mm × 450mm.

Ideal formaterial research, prototype testing, and small-scale production.

4. Versatile Material Compatibility

SupportsPET, PC, PI, glass, PMMA, and other substrates.

Suitable forOCA optical bonding, electronic film lamination, and automotive film testing.

5. Flexible Adjustment & Automated Control

Adjustablelamination pressure, UV curing time, and roller speed to meet various material needs.

Touchscreen control panel for precise adjustment oftemperature, pressure, and UV intensity.

Technical Specifications
