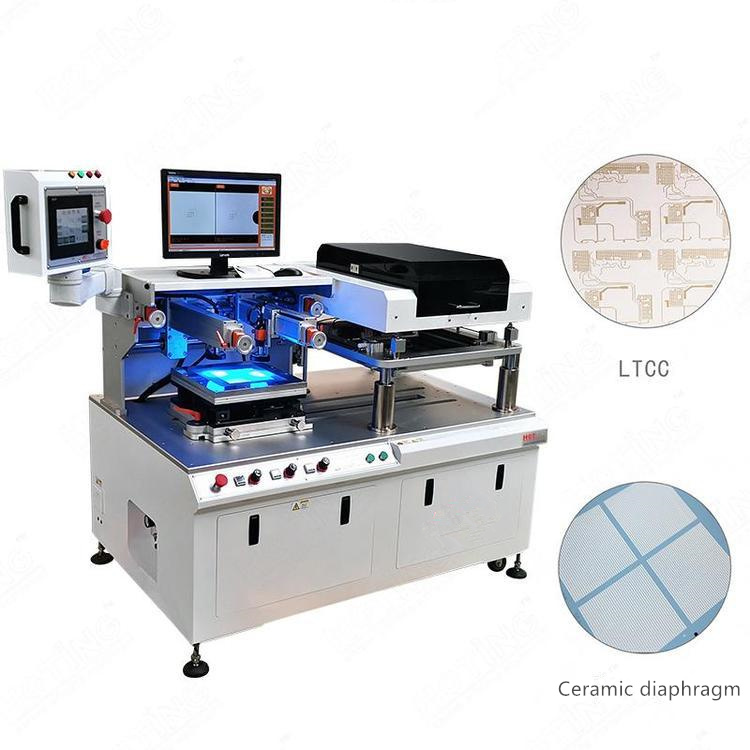

Filter, Wave Filter, Absorber, Wavefilter, Electricalfilter, Rejector, Sensors, Silica Glass Screen Coating Printer

This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-2525HA
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

Filter, Wave Filter, Absorber, Wavefilter, Electricalfilter, Rejector, Sensors, Silica Glass Screen Coating Printer

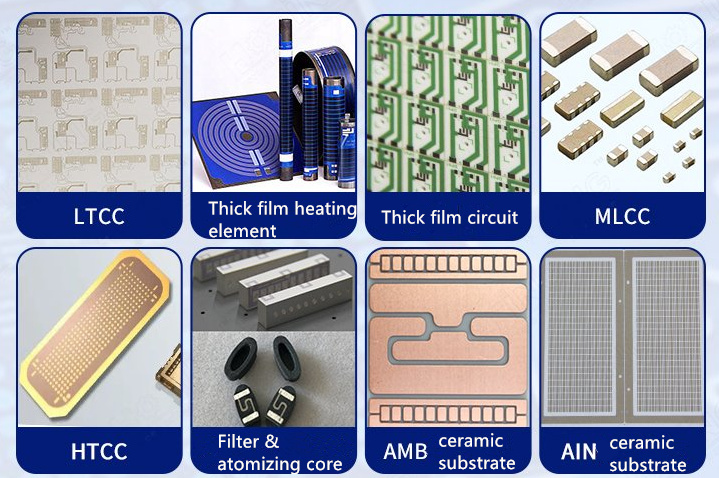

This series is suitable for the printing of various types of chip ceramic substrates, LTCC, MLCC, filters, chip resistors, GPS dielectric antennas, dielectric filters, thick film circuits, sensors, solar cells / monocrystalline silicon polycrystalline silicon and other precision electronic components manufacturing.




Advantages

1. High-precision printing effect can be achieved through reasonable design, precise parts processing and digital program setting.

2. The vision system recognizes the marked points of the substrate, automatically locates the deviation of the substrate placement position, and realizes automatic alignment by driving the X, Y, θ three-dimensional table movement, effectively guaranteeing the accuracy of repeated printing and running stability.

3. One-key air pressure fixed screen mode.

4. High-precision imported linear guide rails help the doctor blade maintain a uniform speed.

5. The precision-manufactured alloy workbench has a flatness of ± 10μm to ensure uniform printing.

6. Servo drive system is used to enter and exit the platen to ensure the thickness and uniformity of the printed coating.

7. Install scraper pressure regulator (adjustable from 2 to 5 kg).

8. The compact device shape and low noise design effectively improve the impact on the working space and environment. .

9. Equipped with a reliable three-sided safety protection device to ensure the safety of operators.

10. The body adopts electrostatic spraying and baking paint to ensure the durability and anti-corrosion of the body.

11. The oil-free three-point combination does not produce exhaust oil mist pollution and is suitable for use in clean rooms.




Specification Parameter

Model

SIMY-2525HA

Max printing area

250 × 250 mm

Printing table size

320 × 320 mm

Printing speed

500cycle/h

Max frame size(Out)

450 × 450 mm

Material thickness

0 - 50mm

Printing pressure

0 - 0.5MPA

Squeegee driven

A.C Motor & Ball Screw

Squeegee running speed

0 – 250 mm

Squeegee angle

60°- 90°

Printing table driven

A.C Motor

Printing table adjust

X/Y = ±10mm Z = 0–50mmθ= 3°

Printing table accuracy

In/Out ±10µm

Printing table flatness

±10µm

Repeat printing accuracy

±5µm

Frame fixing

Cylinder Clamp

Printing material fixed way

Suction by Ring Blower

Air pressure

0.6MPA

Option:

1. Porous ceramic adsorption platform




Related products
Thick Film Screen Printing Machine High Precision Conductive Silver Paste Screen Printer Thick Film Printing Machine
This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing. Please send your inquiry to joyhuang@simymachine.co1
Circuit Screen Printing Machine Thick Film Circuit Screen Printing Machine
This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing. Please send your inquiry to joyhuang@simymachine.co1
Circuit Screen Printing Machine Glazed Potentiometers, Dielectric Antennas, Ceramic Metallization, RFID, Automotive Oil Level Sensors Screen Printer
This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing. Please send your inquiry to joyhuang@simymachine.co1
Filter Screen Printer Filter, Wave Filter, Absorber, Wavefilter, Electricalfilter, Rejector, Sensors, Silica Glass Screen Coating Printer
This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing. Please send your inquiry to joyhuang@simymachine.co1

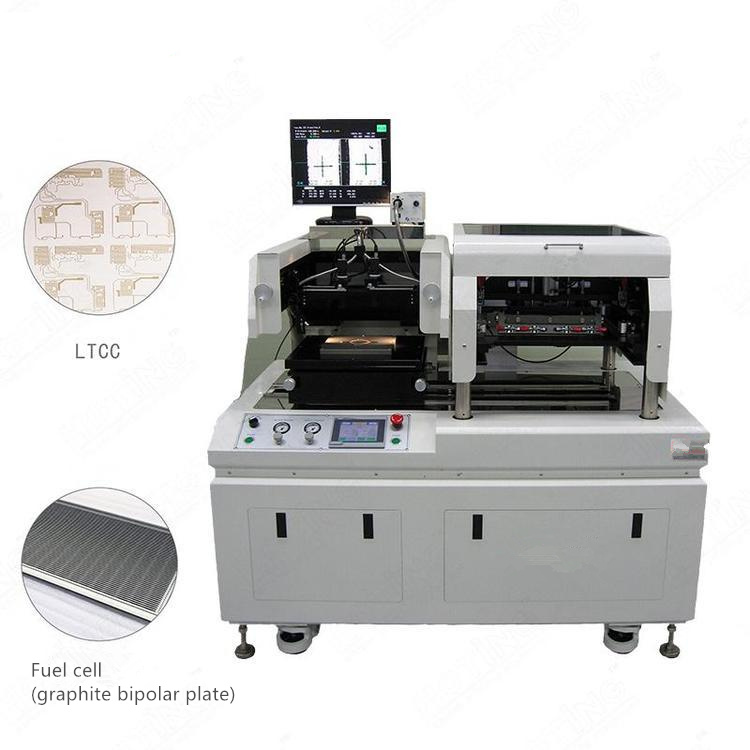

SOFC Fuel Cells Screen Printer SOFC Fuel Cells, Automotive Fuel Level Sensors, LCD, EL, Graphene, Flexible Circuits Screen Printer Printing Machine
This high precision screen printer series is widely used in Ecigarette lighter ceramic heater sheet, Resistors, Thick film circuits, Ceramic circuits, Filters, LED ceramic substrates, LTCC, MLCC, Optical filter, Solar wafer, Chip components and Electronic parts printing process manufacturing. Please send your inquiry to joyhuang@simymachine.co1

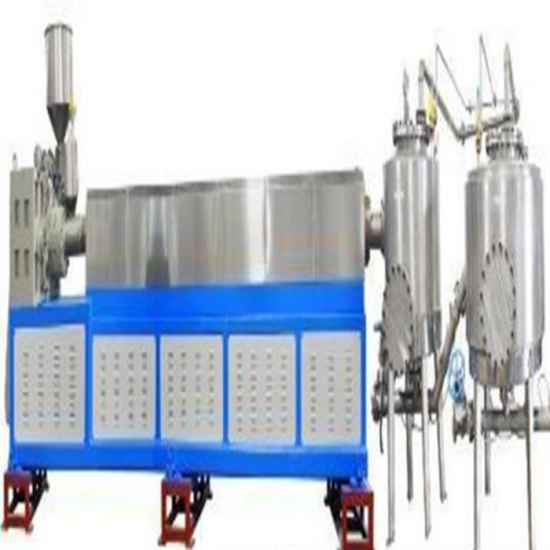

Waste polyethylene wax production line Waste Polyethylene Wax Production Line, Waste PE Cracking Wax Extruder Production Line
This equipment mainly will waste pe/pp through high temperature cracking, producing cracking wax. Please send your inquiry to joyhuang@simymachine.com

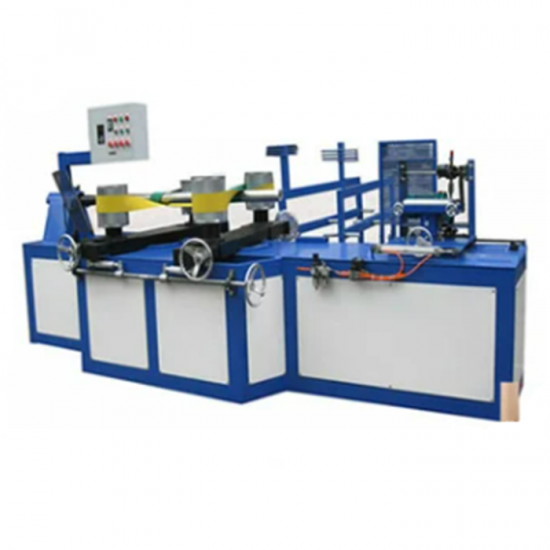

CNC Paper Tube Making Machine 2 Heads CNC Spiral Paper Tube Making Machine
Suitable for various types of daily paper tubes, packaging paper tubes, and various small paper core tubes. Please send your inquiry to joyhuang@simymachine.com

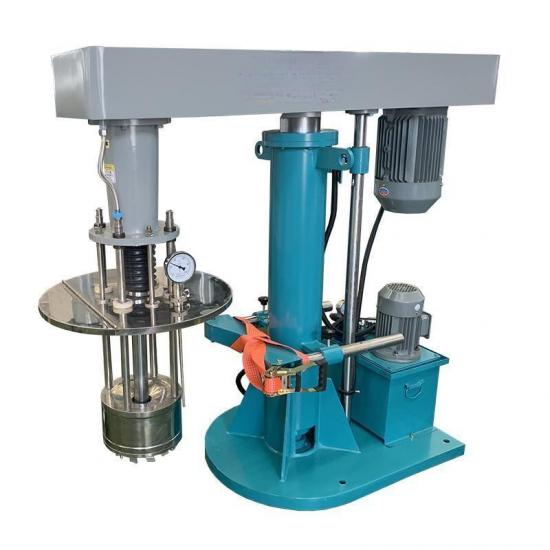

Basket-mill Machine High-speed Basket-mill for Material Circulation Milling and Mixing
