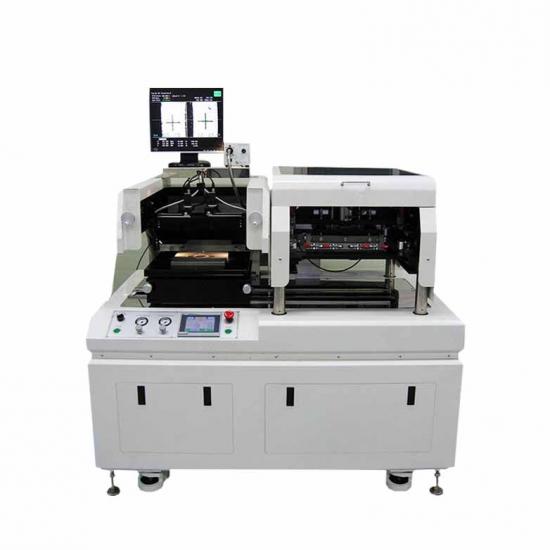

SOFC Fuel Cells, Automotive Fuel Level Sensors, LCD, EL, Graphene, Flexible Circuits Screen Printer Printing Machine
Application scope
Suitable for slightly large format (approximately 25 inches) thick film high precision automatic printing products, such as SOFC fuel cells, automotive fuel level sensors, tension sensors, pressure sensors, LCD, EL, graphene, flexible circuits, main substrates, etc precision components printing process.
Feature
- Automatic registration / right in and left out type / shovel ink / anti-drip dual-purpose device / screen double lifting function / table displacement function / screen frame displacement function.
- CCD automatic alignment
- Servo control, high printing accuracy
The equipment is high-precision and multi-function printing. The CCD automatic alignment system is used. The printing drive and platform operation are servo controlled. Each stroke is uniform and stable. The whole process is digitally positioned to effectively ensure the consistency of the printing coating. The graphic overprint accuracy is high.
Specification Parameter
|
MODEL |
SIMY-5040AL |
|
Max.Printing Size |
500 X 400mm |
|
Printing Table Size |
650 X 650mm |
|
Max.Frame Size(outer) |
900 X 900mm |
|
Printing Product Thickness |
0 ~ 50mm |
|
Printing Table Flatness |
±10μm |
|
Printing Speed |
300 Sheet/H |
|
Repeat Printing Accuracy |
±10μm |
|
Vision Arrangement Precision |
±10μm(x,y, θ) |
|
Photography Positioning Area |
6 X 6mm |
|
Electric Source |
380V 3PH |
|
Air Supply |
0.6MPA |
|
Dimension (W × D × H) |
1980 X 1130 X 1800mm |
|
Weight |
Approx. 950KG |
