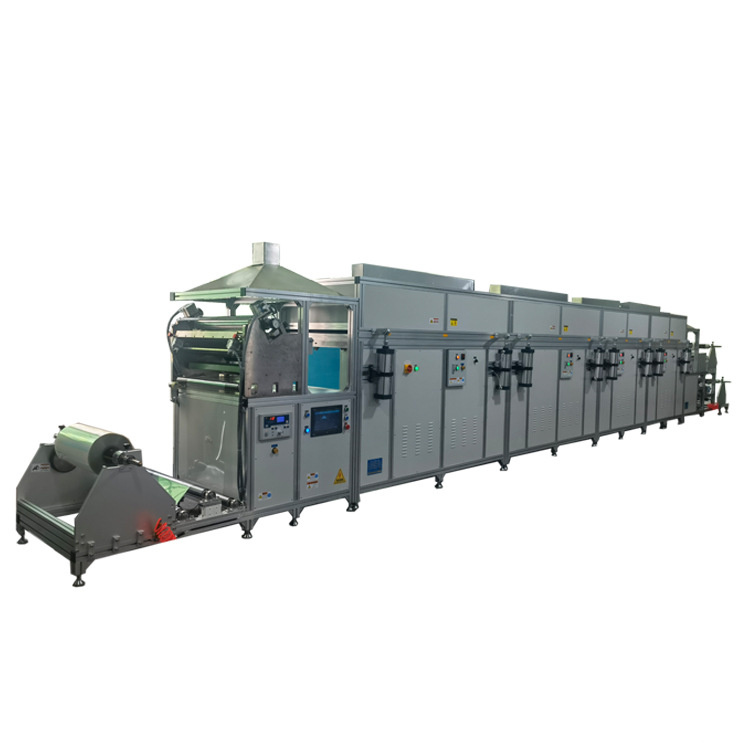

Teeth Whitening Strips Coater for Whitestrips Making Machine
This equipment is specialized in making liquid materials into thin film. It can be used to make quick-dissolve oral films, trans films, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.,
The dental paste coating machine is made of aluminum alloy, PLC control and touch screen operation. The equipment is removable, which is convenient for entering the elevator. The dental paste automatic coating machine has complete functions and covers a small area. The coating machine is easy to clean.

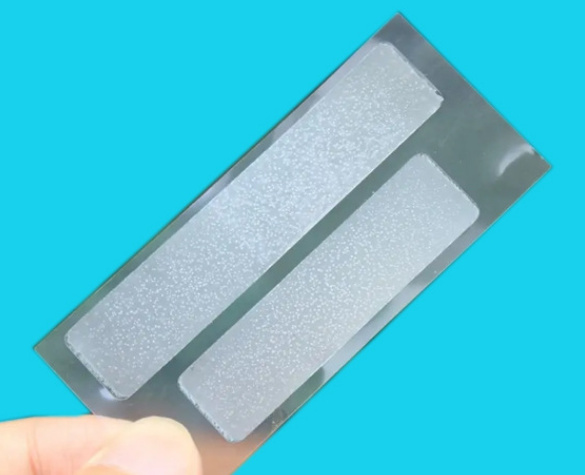

Teeth Whitening Strips' Function: The gel layer on the whitening tooth paste is dry and can produce high adhesion when fused with saliva water. It can remain attached to the teeth for a long time.
Specification
|
Control system |
Independent research and development system |
|
Uniform coating |
＜6% |
|
Coating width |
Effective coating width 300MM（discharge 400MM), customizable |
|
Coating thickness |
0.01-2MM（wet film） |
|
Coating typoe |
Double-sided + single-sided double-ended (can be used separately) |
|
Tension control |
Automatic tension adjustment (according to the membrane tension required to adjust) |
|
Doctor blade lift |
Pneumatic lifting |
|
Oven length |
2-20 meters (2 meters per section, customizable) |
|
Dryingoven temp |
Normal temperature ~100 degrees (can be segmented constant temperature) |
|
Heating method |
Electrical heating |
|
Heating tube |
Adopt stainless steel fin heating tube |
|
Deviation correcting device |
Automatic rectifying of winding |
|
Production speed |
0.1-5 m/min (steady at low speed) |
|
Roll up function |
Double reel up and down |
|
Balance of winding |
Floating roll |
|
Stripe function |
Strip with double edge |
|
Waste collection unit |
Double aeration axis with magnetic powder |
|
Exhaust system |
Adjustable wind power |
|
Oven blower |
Adjustable wind power |
|
Oven lift |
Pneumatic automatic lifting |
|
Glue supply system |
Upward side |
|
Diameter of retraction |
Retracting and discharging diameter 500MM |
|
Type of motor |
3-wire variable frequency motor |
|
Emptying device |
Inflatable shaft 3 inches |
|
Lamination station |
Automatic laminating (with heated roller) |
|
Equipment material |
Aluminum alloy |
|
Power supply |
380V 50Hz |
|
Equipment power |
60KW |
