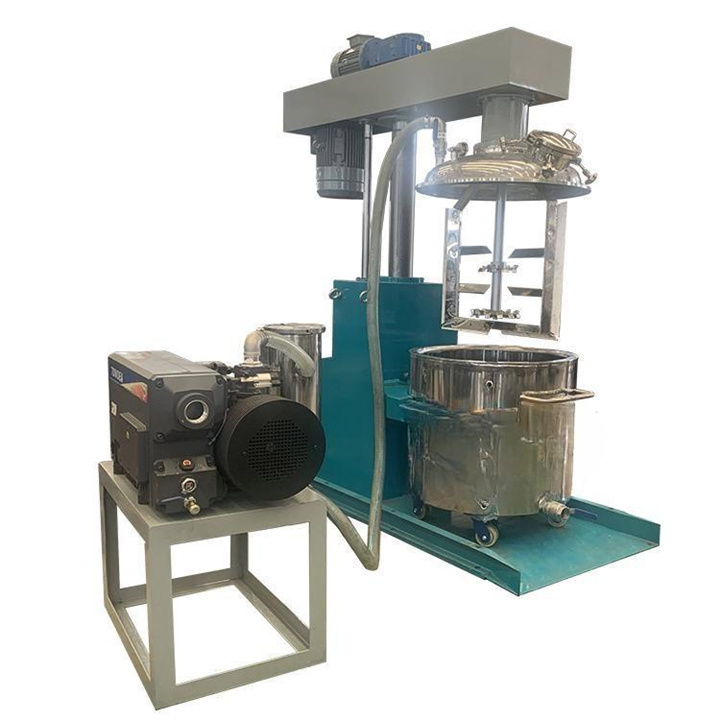

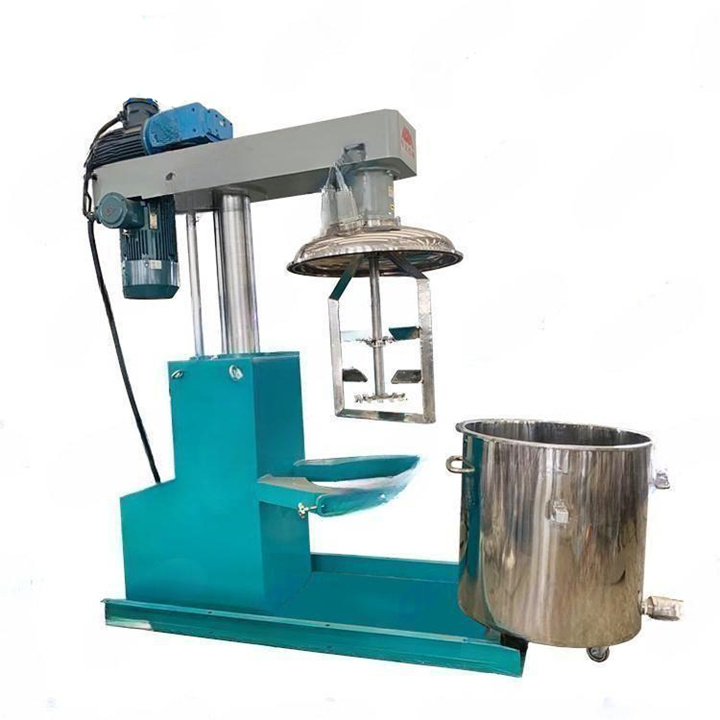

High Viscosity Slurry Hydraulic Lifting Concentric Double-shaft Mixer
The dual shaft multifunctional strong dispersion mixer is a product with strong dispersion and mixing functions developed on the basis of a hydraulic lift single shaft mixer. This product has good adaptability to medium to high viscosity and thixotropic materials. Dispersion and mixing can be carried out simultaneously, with strong adaptability, and non-standard customization can be carried out according to the characteristics of customers' materials and production process requirements.
Product Principles

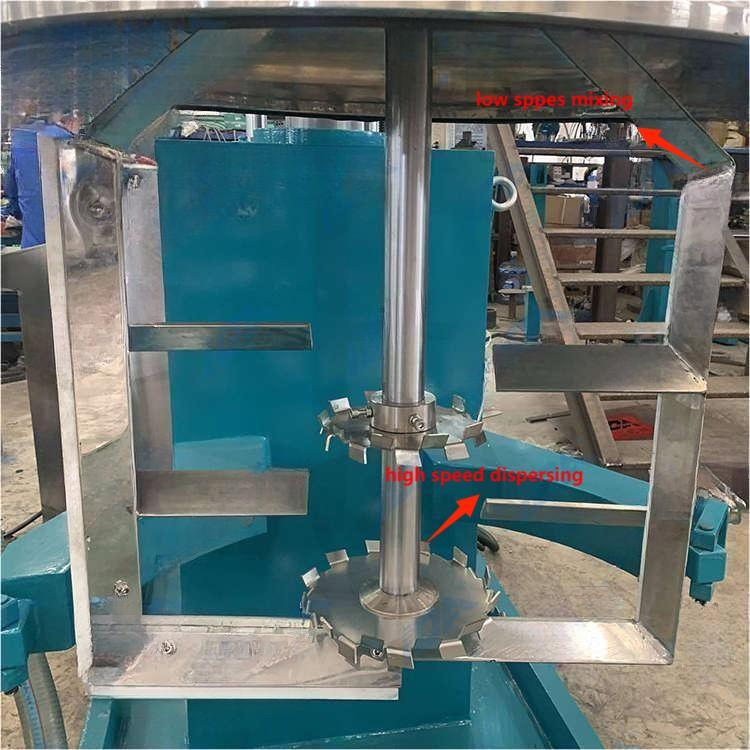

The mixing paddle rotates in a fixed direction driven by a power unit; During the rotation process, the material is driven to rotate axially and radially. The materials in the mixer have both axial and circumferential movements, resulting in several forms of mixing, such as shear mixing and diffusion mixing. A scraper is installed on the mixing slurry to scrape against the barrel wall. When the scraper rotates with the mixer, it scrapes off the materials on the barrel wall, making the barrel wall free of trapped materials and improving the mixing effect.
Specification
|
Model |
SIMY-300 |
SIMY-500 |
SIMY-1000 |
SIMY-1500 |
|
|
Power(KW) |
High speed shaft |
7.5-11 |
11-15 |
15-22 |
30-37 |
|
Low speed shaft |
0.75 |
1.1 |
1.5 |
2.2 |
|
|
Speed r/min |
High speed shaft |
1450 |
1450 |
1450 |
960 |
|
Low speed shaft |
10 |
10 |
10 |
10 |
|
|
Capacity L |
300 |
500 |
1000 |
1500 |
|
|
Pump power KW |
1.1 |
1.5 |
1.5 |
2.2 |
|
