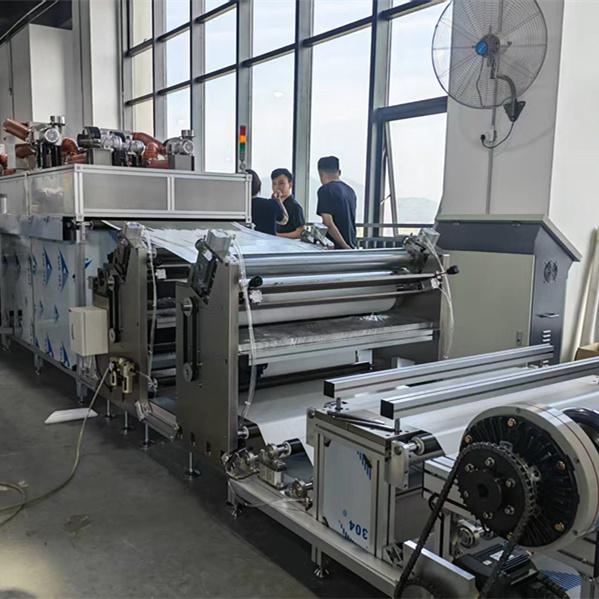

Double-Side Aluminum Foil Coating Line with Double Roll + Comma Blade Coating & Dual-Layer Curing Oven
This double-side aluminum foil coating machine, designed for precision coating applications on aluminum foil and aluminum coil materials.
Main Features
- Double-side coating for aluminum foil / aluminum coil
- Double roll coating + comma blade coating technology
- High precision coating thickness control
- Dual-layer hot air curing oven design
- Suitable for solvent-based and water-based coatings
- Adjustable coating speed and temperature
- Customizable according to customer production requirements
Specification
|
Item |
Technical Specification |
|
Equipment Name |
Double-Side Aluminum Foil Coating Machine |
|
Coating Method |
Double Roll Coating + Comma Blade Coating System |
|
Coating Type |
Double-Side Precision Coating |
|
Application Materials |
Aluminum Foil / Aluminum Coil |
|
Max. Web Width |
200-1200mm |
|
Coating Width |
Customized according to customer requirements |
|
Coating Materials |
Food Grade Lacquer / Pharmaceutical Grade Lacquer / Functional Coatings |
|
Coating Head Type |
Double Roll Coater with Comma Blade |
|
Coating Thickness Control |
Precision gap adjustment by comma blade |
|
Number of Coating Sides |
Two-side coating (Top & Bottom) |
|
Line Speed |
3–20m/min |
|
Curing Oven Type |
Dual-Layer Hot Air Circulation Oven |
|
Oven Structure |
Double-layer design for space-saving and efficient curing |
|
Oven Length |
Approx. 6 m (Customized) |
|
Curing Temperature |
180–220°C |
|
Heating Method |
Electric Heating |
|
Temperature Control |
Automatic PID temperature control system |
|
Cooling System |
Water-Cooled Cooling Rollers(optional) |
|
Tension Control System |
Automatic web tension control |
|
Control System |
PLC + Touch Screen Operation |
|
Power Supply |
Customized according to customer requirements |
|
Safety Features |
Emergency stop, safety protection devices, temperature alarms |
|
Customization |
Available according to different substrates, coatings, and production requirements |
