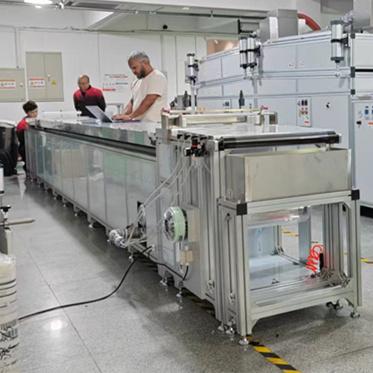

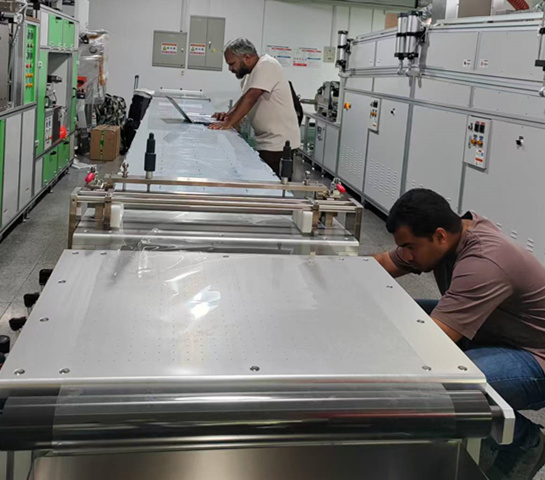

Vacuum Granite Doctor Blade Traction Coating Machine for 6-Meter Sheet
The Doctor Blade Coating Machine is designed for high-precision coating applications on 6-meter-long sheets. This machine is equipped with a doctor blade system to ensure uniform and consistent coating across various substrates. It is ideal for industries requiring precise coating thickness control, such as electronics, automotive, packaging, and specialty materials.
Key Features:
1. Length Capacity: Supports sheets up to6 meters long, providing excellent versatility for large-format production.
2. Coating Method: Utilizes adoctor blade for accurate and smooth coating application.
3. Traction Type Design: Ensures stable and controlled sheet movement, reducing wrinkles and deviations during the coating process.
4. Customizable Solutions: The machine can be tailored to meet specific production needs, including material compatibility, coating thickness, and process parameters.
5. Precision Control: Equipped with advanced control systems for fine-tuning blade pressure, coating speed, and sheet alignment.
6. High Efficiency: Suitable for mass production with reliable and consistent results.
| Specification Parameters for coating machine | |||||
| Control System | Independently developed | ||||
| Human-Machine Interface | 10-inch touchscreen (with emergency stop button) | ||||
| Coating Width | Effective width 500mm (Table width 600mm) | ||||
| Coating Method | Dorctor blade (304 stainless steel) | ||||
| Scraper Lifting | Automatic lifting (pneumatic) | ||||
| Glue Container | Adjustable on both sides (extended to prevent glue overflow) | ||||
| Coating Thickness | 0.01-3mm (Uniformity 5%) | ||||
| Thickness Adjustment | Adjustable (digital micrometer) | ||||
| Traction Method | Transmission timing belt | ||||
| Roll Tension | Adjustable tension (1~25N) | ||||
| Flat Sheet Tension | Uses vacuum table with negative pressure | ||||
| Vacuum Method | Negative pressure fan | ||||
| Unwinding Diameter | Unwind and rewind diameter 350mm (single arm) | ||||
| Machine Speed | 0.5-5 meters/minute (adjustable speed) | ||||
| Roller Material | 304 stainless steel roller | ||||
| Cabinet Design | side painted sealing board | ||||
| Unwind/Rewind Air Shaft | 3-inch air expansion shaft (leaf type) | ||||
| Motor Control | Inverter (Delta PLC control) | ||||
| Traction Length | 10-6000mm (length can be set) | ||||
| Power Supply | Supply: 380V, Control: AC24V | ||||
| Power Consumption | 3000W (total power subject to actual equipment) | ||||
| Air Supply | 0.55Mpa~0.7Mpa (excluding the air compressor) | ||||
