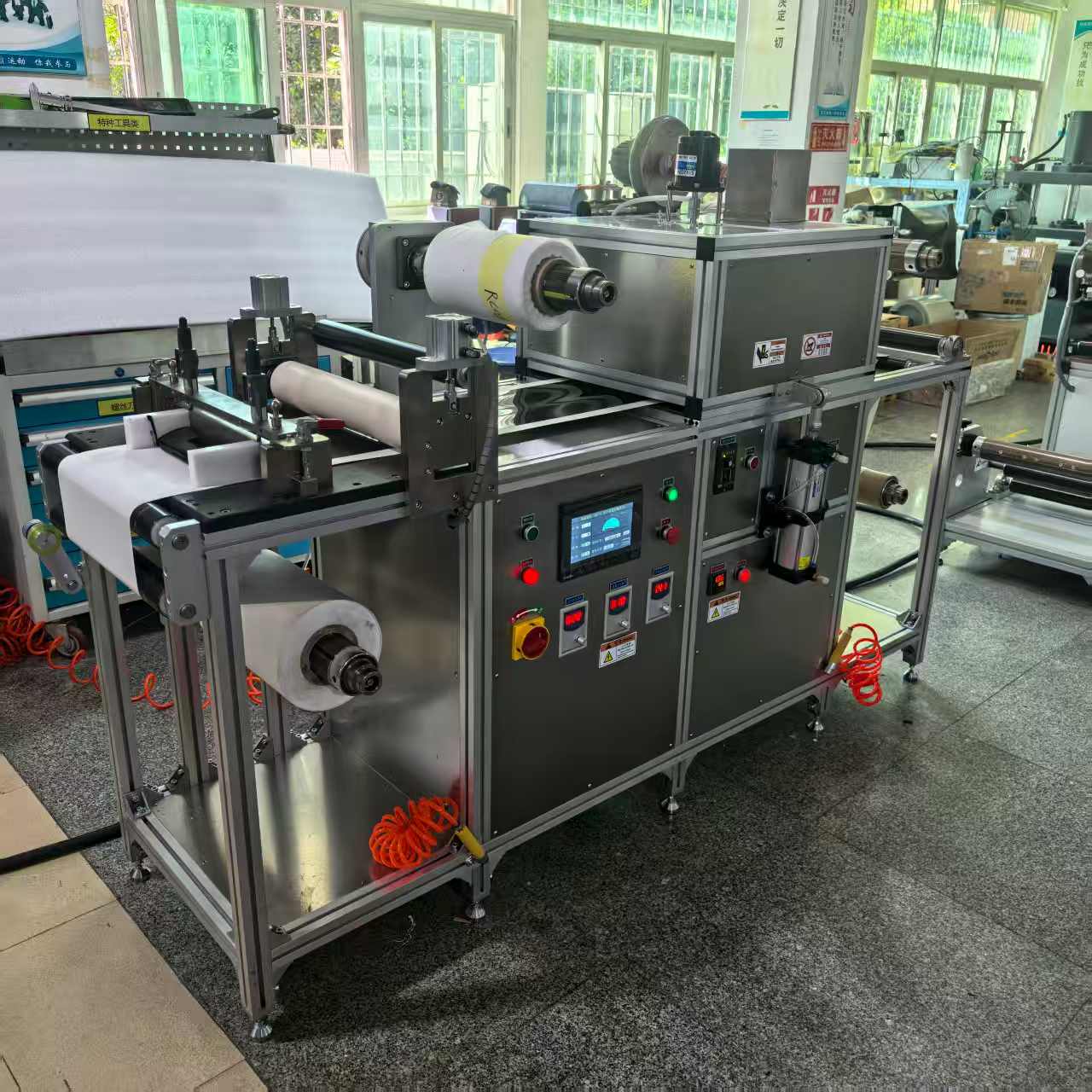

Compact PU Coating Machine Doctor Blade Coating Roll to Roll Coater
This PU coating machine uses a doctor blade coating system for precise and uniform coating.
It is suitable for applying polyurethane (PU) and other similar materials onto various substrates such as film, fabric, or paper.
The compact design makes it ideal for laboratory use or small-scale production.

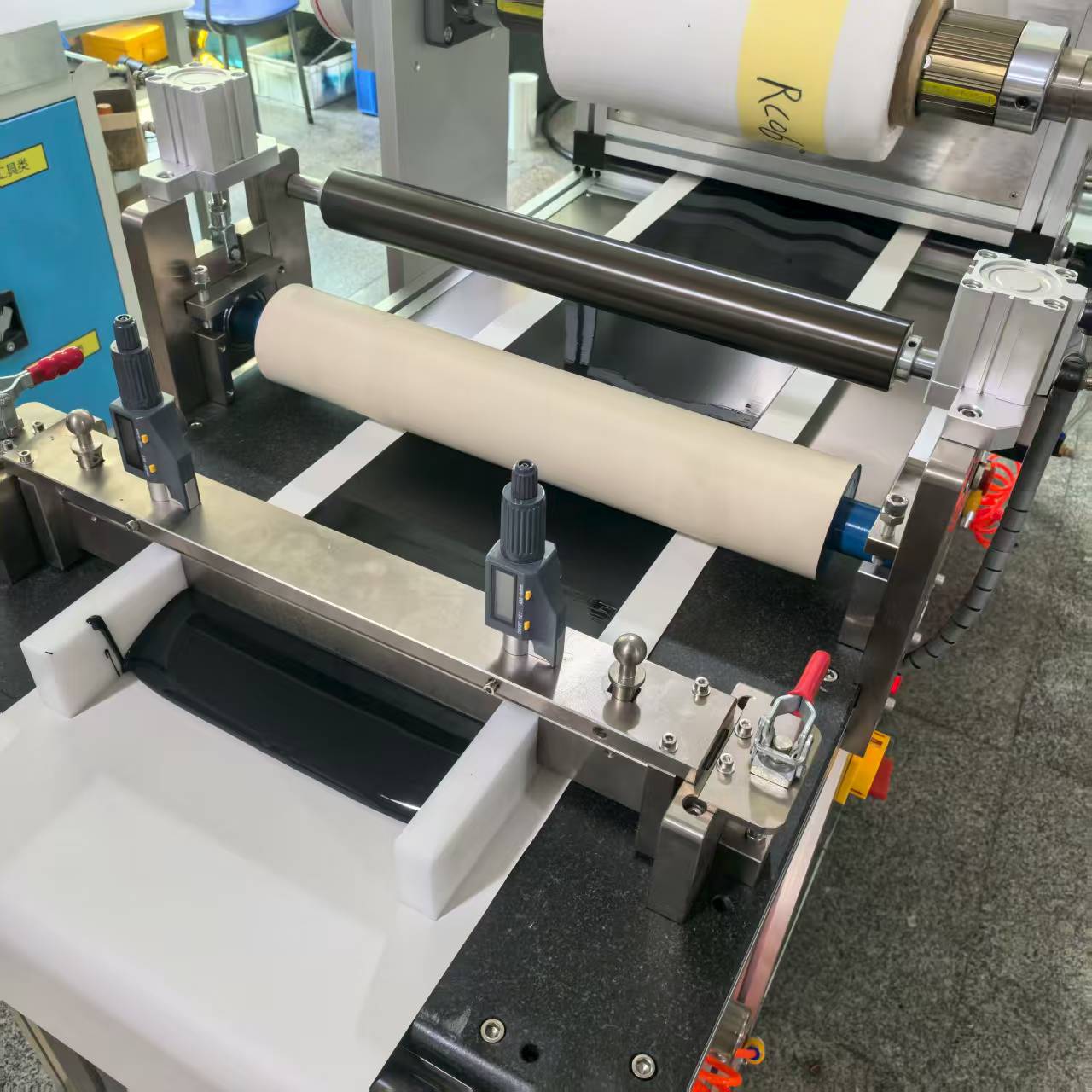

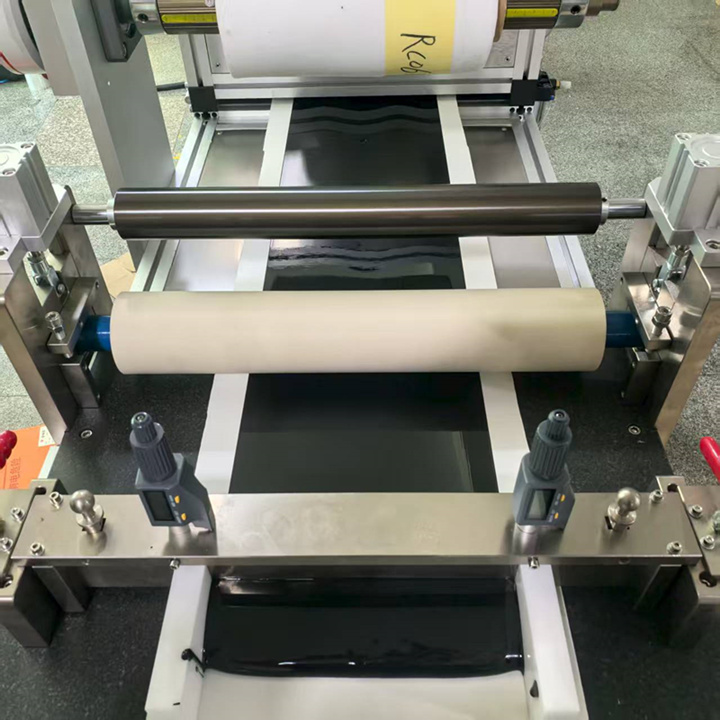

Coating thickness can be easily adjusted through the doctor blade, ensuring stable and consistent coating quality.
Technical Specifications
| Control system | Delta PLC Control | ||||
| Coating width | 150-900mm customized | ||||
| Coating method | Doctor blade | ||||
| Coating thickness | 0.005-2mm | ||||
| Oven length | 2m, can be customized | ||||
| Oven temperature | normal temperature ~180C | ||||
| Heating control | Thermocouple sensor (touch screen temperature controller) | ||||
| Heating method | Electric heating tube | ||||
| Drying channel fan | Speed adjustable | ||||
| Blower fan | speed adjustable | ||||
| Coating speed | 0.1-1 meters/min adjustable | ||||
| Tension control | Adjustable Tension Release (1~10N) | ||||
| Rewind and Unwind Shaft | 3-inch Rewind Shaft (Wafer Type) | ||||
| Power supply | 220V, 50/60Hz | ||||
| Power Consumption | 5000W(total power is subject to physical) | ||||
| Air source access | 0.55Mpa~0.7Mpa (Air compressor provided by customer) | ||||
-
-
