Ultrasonic Spraying Equipment for Protecting Glass Coating

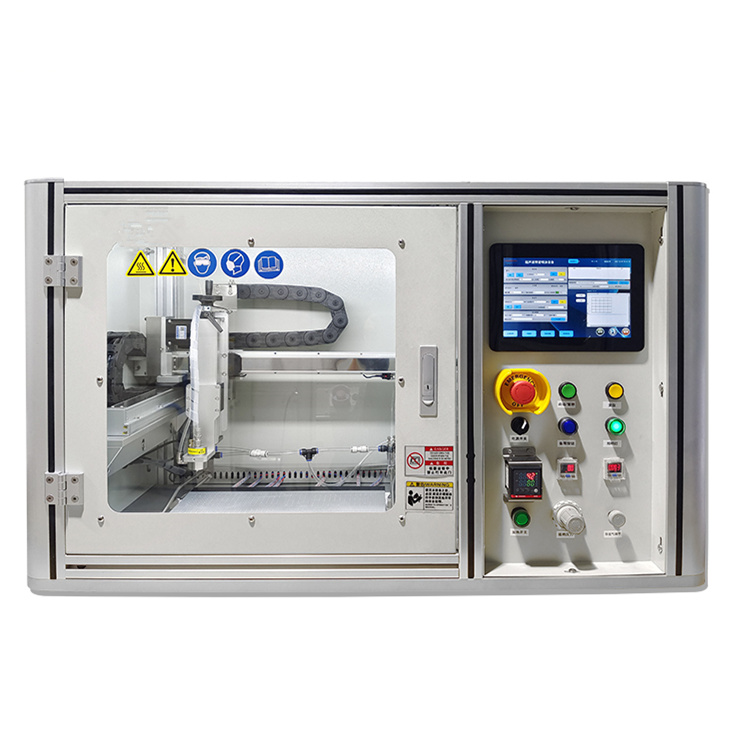

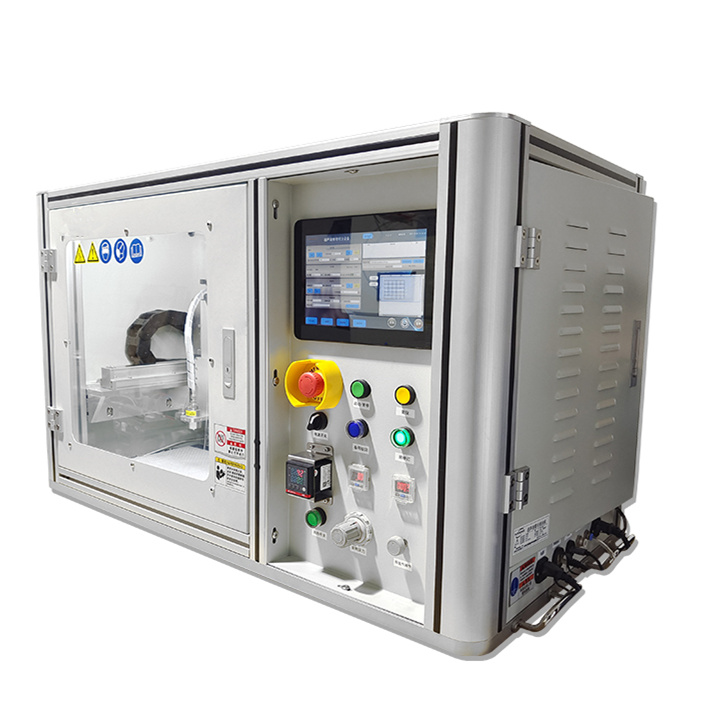

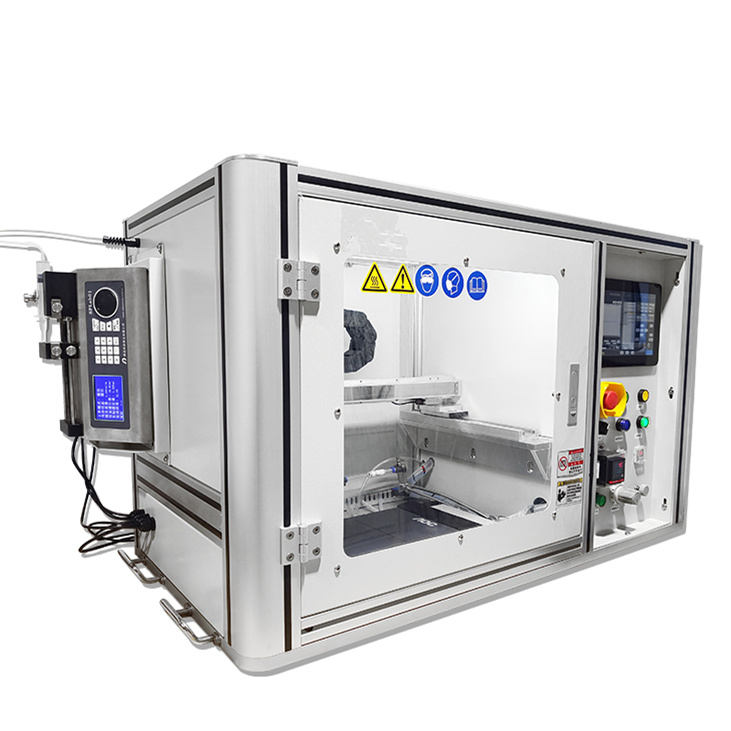

The basic ultrasonic precision spraying machine is mainly developed by enterprises, universities and research institutes that first contact with ultrasonic spraying equipment. The whole equipment has a simple and generous structure and complete functions, mainly including XY double-axis precision motion module, with a comprehensive track editing system, to realize the spraying function of any two-dimensional plane graphics, such as rectangle, circle, triangle or curve. It can be equipped with any type of ultrasonic nozzle of FUNSONIC, precision constant flow injection pump, digital display carrier gas system, ultrasonic dispersion liquid supply system, vacuum adsorption heating substrate and other functions. The whole equipment can also be placed in the fume hood for use.
Product parameters
|
Overall size |
980 * 700 * 950mm |
|
Maximum spraying area |
300 * 300 * 100mm |
|
Motion mode |
XYZ axis automation, can edit any motion track |
|
Control mode |
high-precision motion card/7-inch touch screen/entity key |
|
Ultrasonic nozzle |
1 set of any SIMY ultrasonic nozzle as standard, and multiple sets can be customized |
|
Applicable to qualitative test in scientific research laboratory, small batch production and small area film production |
|
Advantages
1. 4x advantage
Ultrasonic atomization spraying can reach up to 4 times the utilization rate of traditional spraying, effectively reducing the material cost.
2. Nanometer film thickness
The thinnest film thickness that can be prepared by ultrasonic atomization spraying can reach tens of nanometers, and the uniformity is highly consistent.
3. Airless atomization
Atomization is generated by ultrasonic high-frequency vibration without the participation of air pressure, effectively avoiding the impact of high air pressure on the substrate.

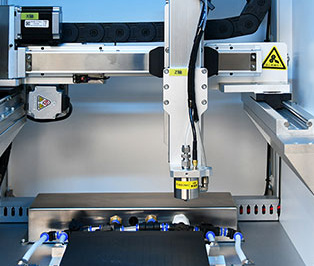

4. Imported servo motor, fully enclosed motion module
XYZ three-axis adopts imported servo motor, and the module adopts the fully closed linear lead screw module, which significantly improves the service life, and the repeated positioning accuracy can reach 0.01mm.

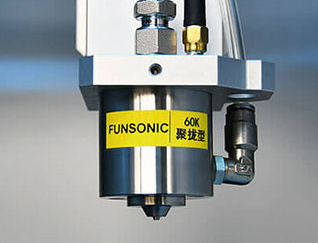

5. Ultrasonic nozzle system
SIMY has developed and produced dozens of ultrasonic nozzles, which can be applied to various working conditions and film thickness requirements.

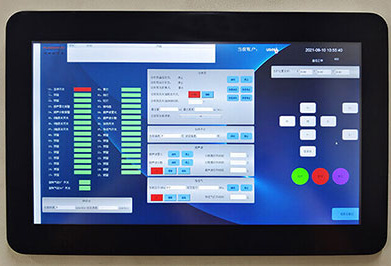

6. Control system
Equipped with the control system developed by SIMY for ultrasonic spraying, it is fast and easy to operate. It can integrate and control the functions of ultrasonic atomization, ultrasonic dispersion, injection pump, flow guide gas, heating table and vacuum adsorption plate, including the functions of one-key generation of common template tracks and G code complex track compilation.
