High Throughout Tissue Grinder 24 Multi-sample Tissuelyser

Suitable for grinding and crushing samples of plastics, polymers, including PE, PS, textiles, resins, oil shale, glass, minerals, ores etc.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-YM-24
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

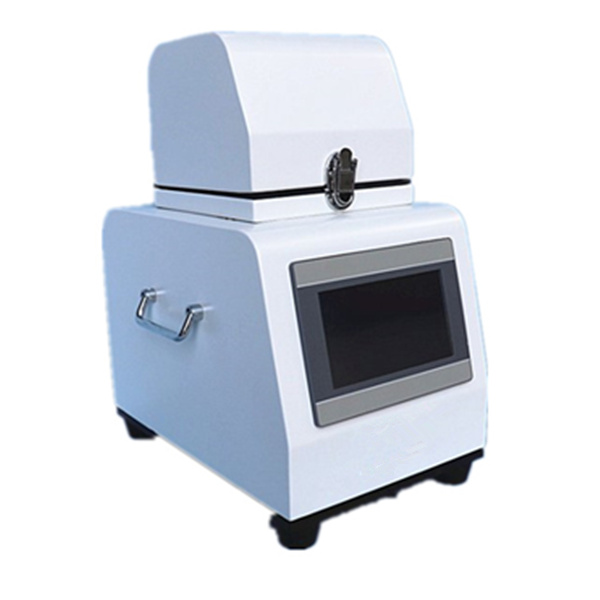

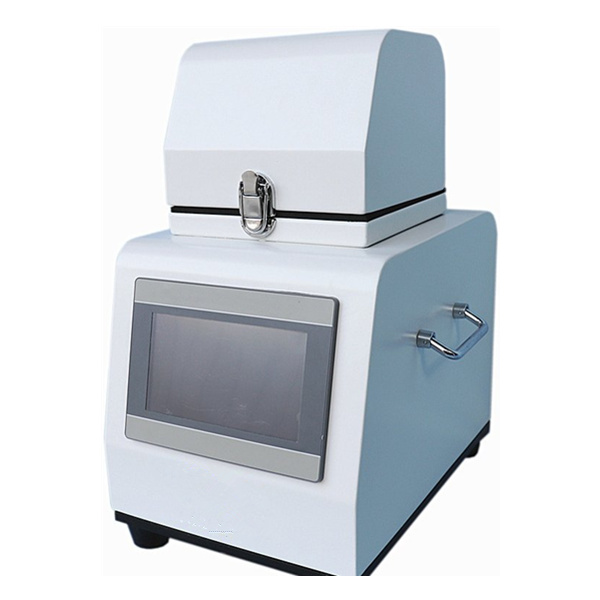

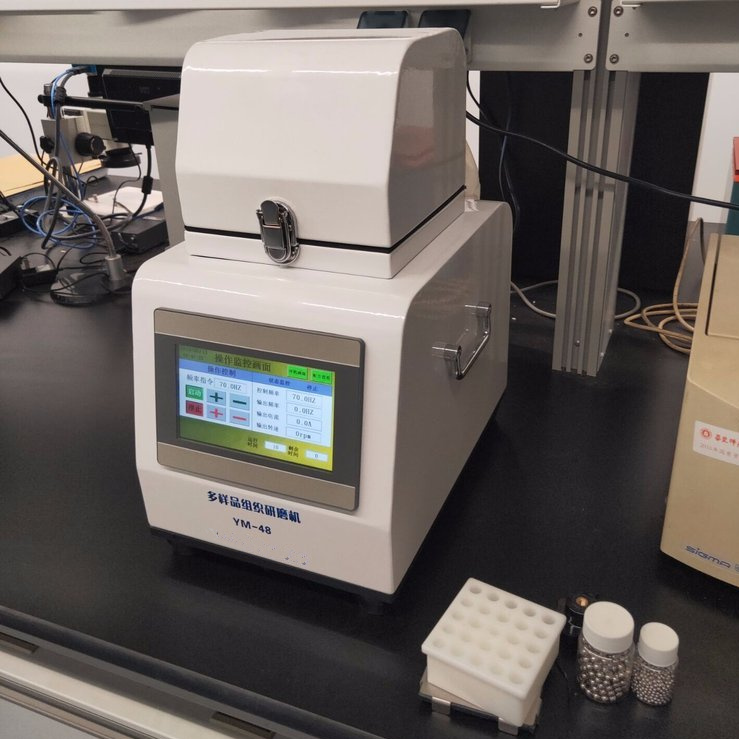

High Throughout Tissue Grinder 24 Multi-sample Tissuelyser



The tissue grinder is a special, fast, and multi tube consistent system. It can extract and purify original DNA and RNA from any source (including soil, plant and animal tissues, yeast, fungi, spores, paleontological specimens, etc.).  Application fields: grinding, cell fragmentation, homogenization, material dispersion, preparation, sample mixing, oscillation


Application

1. Suitable for grinding and crushing samples of various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc;

2. Suitable for grinding and crushing samples of various animal tissues, including meat, skin, hair, lymph nodes, muscles, bones, etc;

3. Suitable for grinding and crushing samples such as fungi;

4. Suitable for grinding and crushing of food and drug composition analysis and detection;

5. It is applicable to the grinding and crushing of volatile samples, including oil shale, wax products and other samples;

6. Suitable for grinding and crushing samples of plastics, polymers, including PE, PS, textiles, resins, etc;

7. Quicker extraction of DNA and RNA from plant and animal tissues;

8. Quicker freezing, grinding and crushing, shaking and mixing;

9. Faster cell wall breaking and lysis of yeast samples in just a few tens of seconds;

10. Quicker grinding, homogenization, and homogenization of food and feed samples;

11. Faster grinding and homogenization of mineral and ore samples, up to 100 nanometers or less;

12. Faster geographic analysis (atomic absorption, X-ray fluorescence) and sample preparation for third-generation sequencing amplification.


Product Features

This grinder adopts a special vertical up and down vibration mode, through high-frequency reciprocating vibration, impact and shear of grinding beads (zirconia, steel balls, glass bead, ceramic beads). Quickly achieve the goal. Make the ground sample more sufficient, uniform, reproducible, and free from cross contamination between samples


1. A large number of operations with good and fast results can complete the grinding of 24 samples within 1 minute. Save time and effort, with small differences between batches and within batches. The extracted protein has higher activity and longer nucleic acid fragments.

2. The sample tube without cross contamination is in a fully enclosed state during the crushing process, and disposable centrifuge tubes and beads can be used. The sample is kept intact inside the tube to avoid cross contamination between samples and external pollution.

3. Simple operation

3.1 Built in program controller, which can set parameters such as grinding time and rotor vibration frequency

3.2 Humanized operation interface.

4. Good stability

Adopting vertical oscillation method for more thorough grinding and better stability;

During the operation of the instrument, the noise is less than 70dB and will not interfere with other experiments or instruments.

5. Convenient low-temperature operation. When a low-temperature grinding environment is required, the adapter containing the sample can be immersed in liquid nitrogen and cooled for 1-2 minutes. After removal, it can be moved to the host for quick fixation and grinding can begin without the need for further freezing treatment, saving liquid nitrogen.

6. Good repeatability. Set the same program for the same tissue sample to achieve the same grinding effect. Short working time, sample temperature will not increase technical parameters


Specification

Sample size processed by adapter

 24 * (0.2-0.5ml)/24 * 2ml/16 * 5ml/12 * 5ml/8 * (7-15) ml/4 * 25ml/2 * 50ml

Standard configuration

 two optional adapters

Homogenization speed

 10-70 Hz/second

Shockproof principle

 German technology Schleifen-1 working mode

Grinding method

 wet grinding, dry grinding, and low-temperature grinding are all available

Feed size

 No requirements, adjust according to adapter

Discharge particle size

 5 µ m

Number of grinding platforms (acceptable grinding tanks)

>2

Fastener with automatic positioning

 Yes

Safety lock during work

 full protection

Grinding kit material

 hard steel, (Teflon)

Power supply

 two-phase 220V/50HZ

Working time

 0-99 minutes, user can set it by themselves;

Grinding ball diameter

 0.1-30mm

Grinding ball material

 chrome steel, zirconia, tungsten carbide, quartz sand;

Acceleration

 Achieve high speed within 2 seconds

Deceleration

 Reaching low speed within 2 seconds

Noise level

<65db

External dimensions

 280 * 400 * 530

Weight

 40KG
