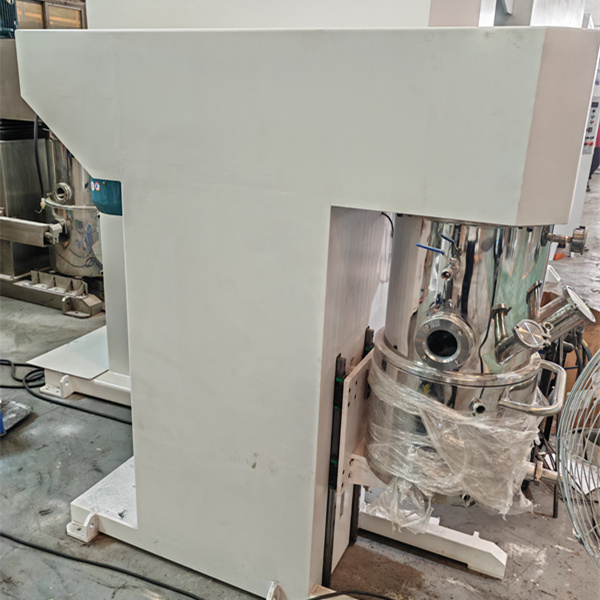

265L/200L Heavy-Duty Planetary Mixer with Vacuum & Heating Optional
Considering the characteristics of specific slurries with high solid content and high viscosity, an enhanced power mixer has been developed based on the original planetary mixer design. The upgraded model features higher rotational speed, larger torque, and an improved sealing structure.
During the design process, factors such as agitator speed, mixing power, dispersion peripheral speed, suspension level, liquid flow pattern, and turbulence intensity distribution inside the vessel were fully considered.
The enhanced spiral frame agitator can process high-viscosity battery slurries. The newly designed mixing method features clockwise planetary rotation of the spiral frame while the agitator rotates counterclockwise on its own axis, ensuring no dead zones and preventing material climbing.
The Pt100 temperature sensor directly contacts the material, providing more accurate measurement, faster response, and temperature accuracy within ±2°C.
Equipment Technical Specifications
|
No. |
Item |
Specification |
|
1 |
Vacuum Level |
-0.098 MPa |
|
2 |
Structure Type |
Single-arm type |
|
3 |
Rotation Speed |
Planetary rotation: 0–41 rpm; Self-rotation: 0–85 rpm (variable frequency speed control) |
|
4 |
Low-Speed Shaft |
Two-shaft spiral frame agitator, one-piece molded SUS304 stainless steel, including one wall-scraping device |
|
5 |
High-Speed Shaft |
Without dispersion function |
|
6 |
Lifting Method |
Hydraulic lifting of material vessel with linear guide rail; hydraulic motor: 1.5kW |
|
7 |
Lifting Height |
700 mm |
|
8 |
Temperature Measurement Method |
Vessel wall temperature measurement |
|
9 |
Vessel Positioning |
Arc positioning blocks with lifting structure; flange structure on vessel cover ensures central positioning |
|
10 |
Total Power |
16.5 kW |
|
11 |
Power Supply |
AC 3×380V, 50Hz |
|
12 |

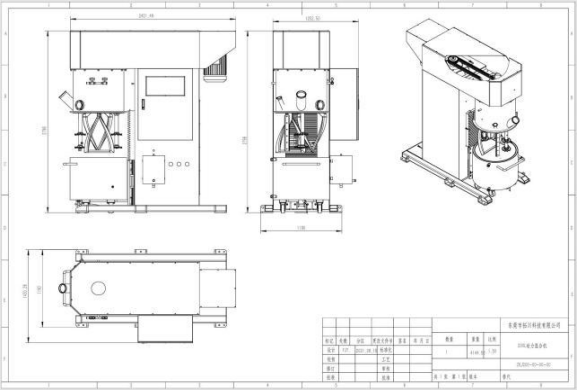

Overall Dimensions (L×W×H) |
2422 × 1432 × 2700 mm |
|
13 |
Weight |
Approx. 4000 kg |
Mixing Vessel
|
No. |
Item |
Specification |
|
1 |
Vessel Dimension |
Φ750 × 600 mm (inner diameter × inner height) |
|
2 |
Volume |
265 L |
|
3 |
Design Pressure |
Inner vessel: -0.098 MPa; Jacket: 0.8 MPa |
|
4 |
Design Temperature |
-10°C to +150°C |
|
5 |
Main Material |
Material contact parts: SUS304; Jacket: Q235; Bottom: SUS304 stainless steel + Q235-B |
|
6 |
Vessel Thickness |
Inner vessel: δ8 mm (actual measured thickness after machining); Jacket: δ4 mm |
|
7 |
Temperature Control Method |
Jacketed type, water cooling |
|
8 |
Discharge Method |
Side discharge + ball valve |
|
9 |
Moving Method |
Manual movement |
|
10 |
Number of Vessels |
2 units (subject to contract agreement) |
