Freezing Temperature 48 Sample Processing Cryogenic Tissue Grinder


Suitable for grinding and crushing samples of plastics, polymers, including PE, PS, textiles, resins, oil shale, glass, minerals, ores etc.


Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-YM-48LD
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

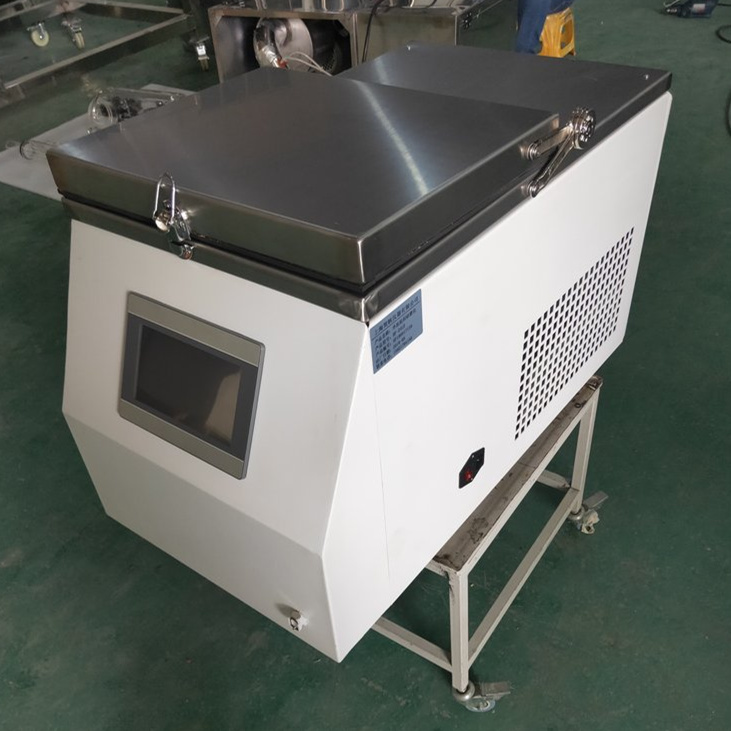

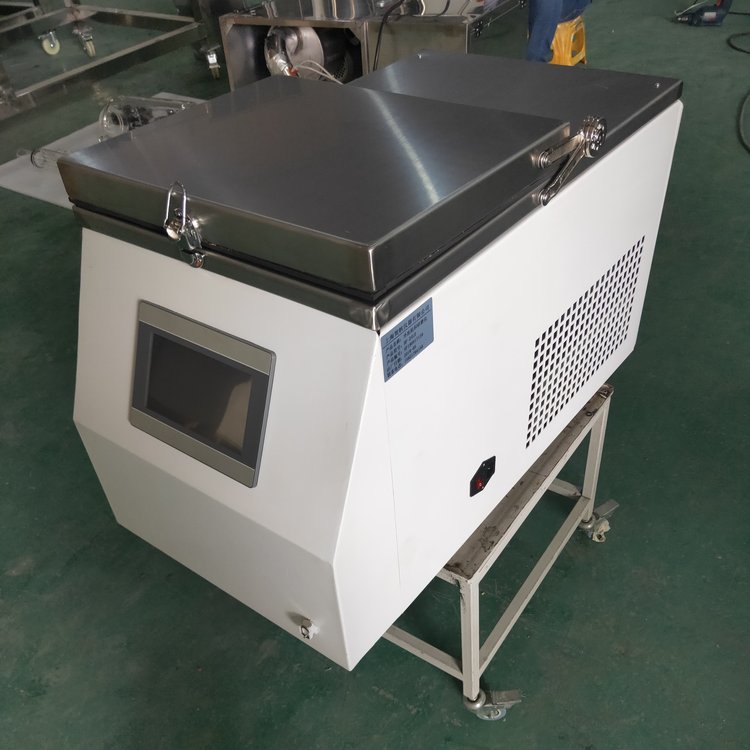

Freezing Temperature 48 Sample Processing Cryogenic Tissue Grinder



The fully automatic multi sample tissue freezing grinder is a product developed specifically for the preparation of small amounts of samples. It only takes a few seconds to achieve powder mixing and homogenization. It is also suitable for the breaking of biological cells and the extraction of DNA/RNA. Its superior performance and flexibility ensure its position in the market. Freeze Grinder, also known as High Throughput Tissue Freeze Grinder, Rapid Tissue Freeze Grinder, Multi Sample Tissue Freeze Homogenizer, Rapid Sample Freeze Homogenizer System.


Three key elements of sample processing:

1. Grinding - processing up to 48 samples in a batch

2. Low temperature grinding - grinding temperature can be customized and adjusted

3. Non destructive sample composition - low-temperature protection sample composition


Applications

Extracting nucleic acid/protein low-temperature grinding samples can effectively inhibit nucleic acid degradation and retain protein activity·There are often significant differences between the isomers of active ingredients in the analysis of pharmacological components. Low temperature grinding can prevent molecular degradation due to pressure and heat·Reducing sample volatilization Low temperature grinding can significantly reduce sample volatilization and preserve sample composition content more completely. For difficult to grind samples such as high toughness plastics, high-strength plastics, resins, etc., low temperature grinding can greatly improve the grinding effect and efficiency.


1. Suitable for grinding and crushing samples of various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc;

2. Suitable for grinding and crushing various animal tissues, including muscles, bones, and other samples;

3. Suitable for grinding and crushing samples such as fungi and yeast;

4. Suitable for grinding and crushing of food, medicine, and tablet composition analysis and detection;

5. It is suitable for grindingoil shale, glass, minerals, ores and other samples;

6. Suitable for grinding and crushing samples of plastics, polymers, including PE, PS, textiles, resins, etc.


Product Features

This grinder adopts a special vertical vibration. The sphere inside the tank, due to its inertia, impacts the sample located on the smooth inner wall of the grinding tank with high energy and crushes the sample accordingly. The rotation of the grinding tank and the movement of the grinding ball produce a high-strength mixing effect on the sample. By using multiple balls, the mixing effect can even be further improved. When using many small balls (such as stainless steel balls), biological cells can be broken. The friction and impact between balls can effectively lead to cell fragmentation and achieve the goal quickly. Make the ground sample more sufficient, uniform, reproducible, and free from cross contamination between samples


1. With a large number of operations and good results, the fast work can complete the grinding of 48 * 2ml samples in just over thirty seconds. Save time and effort, with small differences between batches and within batches. The extracted protein has higher activity and longer nucleic acid fragments.

2. No cross contamination, the grinding tank is fully enclosed during the crushing process, and disposable centrifuge tubes and beads can be used. The samples are kept intact in the tank to avoid cross contamination between samples and external pollution.

3. Easy to operate, user-friendly operation interface (touch screen), built-in program controller, which can set parameters such as grinding time and rotor vibration frequency.

4. Good repeatability, set the same program for the same tissue sample to achieve the same grinding effect. Short working time, sample temperature will not rise

5. No vulnerable parts design, electromagnetic locking protection

6. Stainless steel inner cavity, easy to clean and disinfect


Specification

Model

SIMY-YM-48LD

Application

For comminution, mixing, homogenization and cell fragmentation, sample pretreatment of biological samples, and rapid genome extraction in large quantities

Principle and method of crushing

Impact force and friction generated by vertical vibration; Wet grinding, dry grinding, ultra-low temperature grinding can be

Sample characteristic

Hard, medium-hard, soft, brittle, elastic, fibrous

LCD

Seven inch touch screen display, can be convenient and intuitive operation

Vibration frequency setting

0-70HZ ,0-2100R/M Can be customized according to request

Data storage

Thirty-six groups of experimental data can be stored. According to different experimental samples, animal spleen lung, bone, skin and hair patterns are set

Mode cycle

According to the set experimental parameters, it can be continuously circulated among several set parameters to further reduce the interference of human factors

Refrigeration function

Yes, -40 degrees to room temperature adjustable

Temperature control accuracy

+ 0.5℃

Processing sample size

48*(0.2-0.5ml)/48*2ml/24*2ml/16*4ml/12*4ml/8*15ml/4*25ml/2*50ml   Two adapters are optional

Grinding tank material

Hard steel, stainless steel, tungsten carbide, agate, zirconia, (PTFE) aluminum alloy, suitable for any material sample (can be customized)

Grinding ball material/diameter

Hard steel, stainless steel, tungsten carbide, agate, zirconia, chromium steel, zirconia, quartz sand /0.1-30mm according to experimental requirements

Number of grinding platforms

Number of grinding tanks acceptable>2

Inlet and outlet size

Feed size: no requirement, adjust according to grinding tank; Discharge size: less than 5μm

Clamp stroke

34mm (Vertical)

Crushing time setting

0 seconds to 9999 minutes, users can set

Typical crushing time

15S-2Min

Acceleration/deceleration

Reach high speed in 2 seconds/Low speed in 2 seconds

Noise Level

<50db

Dimensions

740 *440 *500mm

Open cover running protection

Open the cover to stop the operation automatically

Safety device

Safety lock when working, full protection; With positioning fastening nut

Type of protection

IP 30

Power

220V/50HZ;total power:1000W

* The noise emission value for the working environment depends on the type of sample and the setting of the grinder. The parameters in the table are no-load state
