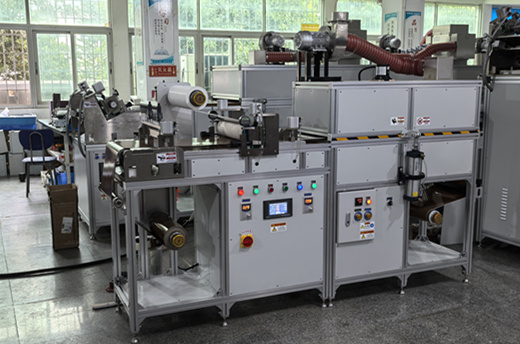

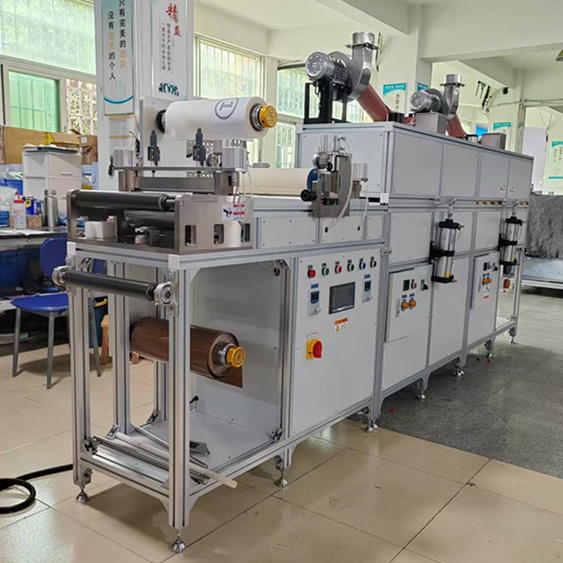

Lab Doctor Blade & Wire Rod Coating Machine Roll to Roll Coater
The SIMY-LAB-CB300 is aprecision laboratory-grade doctor blade & rod bar coating machine designed forsmall-scale research, testing, and customized production. It is ideal forcoating high-viscosity materials onto PET, film, paper, fabric, and other substrates. With acustomizable design, this machine can be tailored to specific coating requirements, making it an excellent choice fornew material development, battery electrode coating, adhesive coating, and specialty film applications.
Key Features
1. Customizable Coating Width & Thickness
Standard max width:300mm (customizable up to600mm).
Adjustablecomma blade gap for precisecoating thickness control.
2. Precision Coating Technology
High-precisioncomma blade system ensures uniform coating.
Suitable for various materials includingsolvent-based, water-based, and UV-curable coatings.
3. Customizable Heating & Drying Options
Optional heating system for temperature-controlled coating.
Integrated drying system (hot air / IR / UV drying) based on customer needs.
4. Adjustable Speed & Tension Control
Coating speed:0.1-5m/min (customizable).
Automatic tension control for stable and precise coating.
5. User-Friendly Operation
Touchscreen control panel for intuitive operation.
Custom programming available for specific production requirements.
Technical Specifications
| Control system | Delta PLC Control | ||||
| Coating width | Effective coating width max. 300mm, max. substrate width 350mm | ||||
| Coating method | Doctor blade & wire rod | ||||
| Coating thickness | 0.005-2mm | ||||
| Oven length | 2m, can be customized | ||||
| Oven temperature | normal temperature ~180C | ||||
| Heating control | Thermocouple sensor (touch screen temperature controller) | ||||
| Heating method | Electric heating tube | ||||
| Drying channel fan | Speed adjustable | ||||
| Blower fan | speed adjustable | ||||
| Coating speed | 0.1-1 meters/min adjustable | ||||
| Tension control | Adjustable Tension Release (1~10N) | ||||
| Rewind and Unwind Shaft | 3-inch Rewind Shaft (Wafer Type) | ||||
| Power supply | 220V, 50/60Hz | ||||
| Power Consumption | 5000W(total power is subject to physical) | ||||
| Air source access | 0.55Mpa~0.7Mpa (Air compressor provided by customer) | ||||
-
-

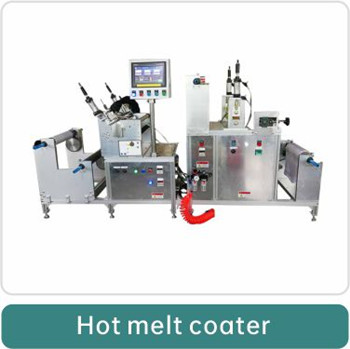

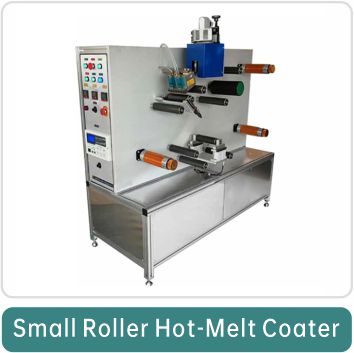

Other hot melt coaters

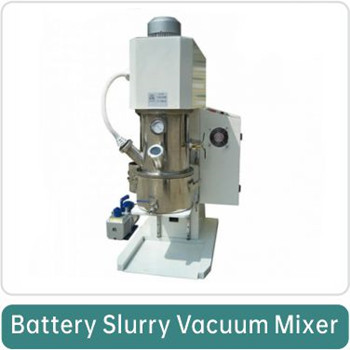

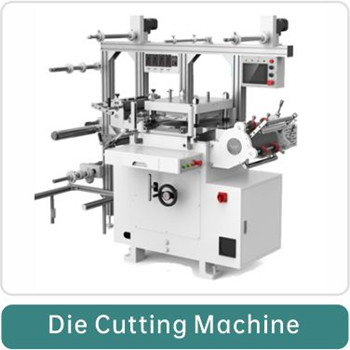

You might also need the following compatible upstream and downstream machines.
