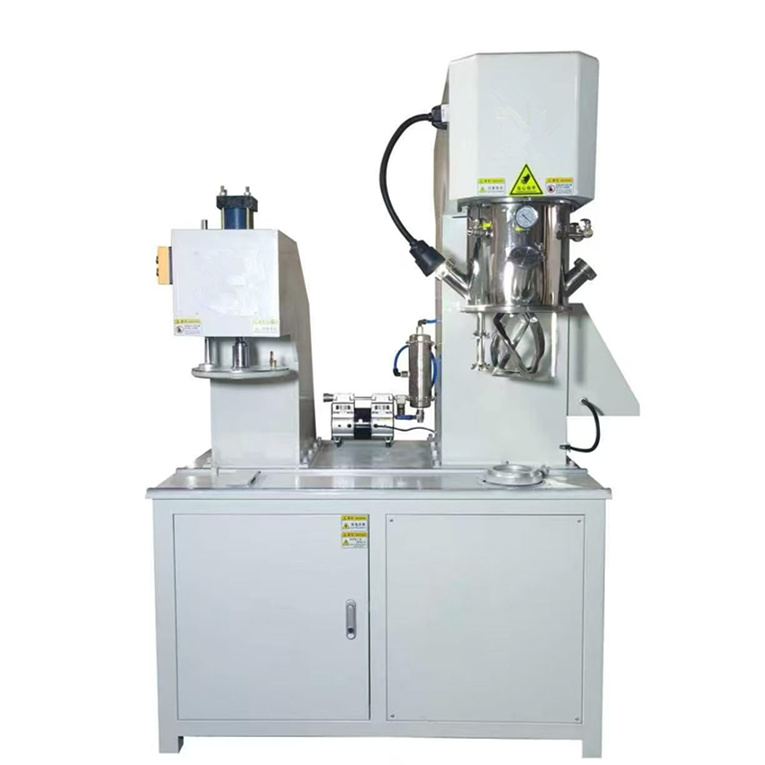

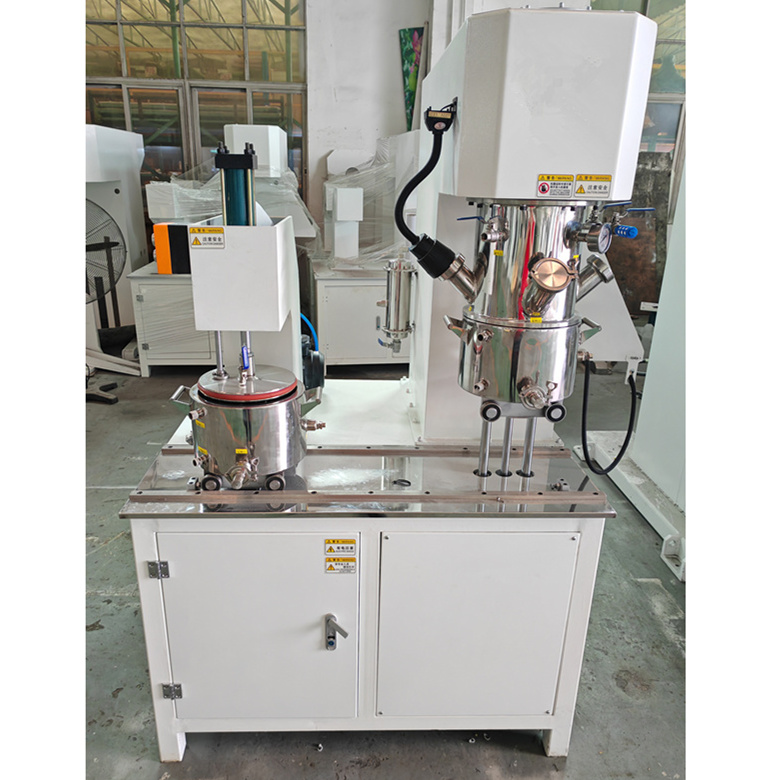

5L Enhanced Type Dual Planetary Mixer with Hydraulic Discharging Machine
The enhanced helical agitator is capable of processing high-viscosity battery slurries and other high-viscosity materials.
The newly developed mixing method adopts:
· The helical agitator rotates clockwise around the planetary axis (revolution);
· The agitator rotates counterclockwise around its own axis (rotation).
This ensures no dead zones during mixing and eliminates the “material climbing” phenomenon.
The Pt100 temperature sensor directly contacts the material, providing more accurate temperature measurement, faster response, and an error range within ±2°C.

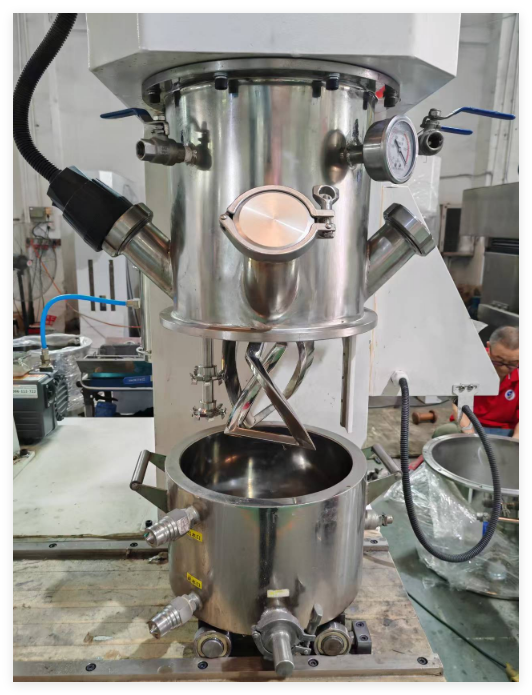

The machine consists of: Base frame,Cross beam,Column,Sealing cover,Mixing vessel,Transmission system,Electrical control system.
Technical Specifications
|
S/N |
Item |
Specification |
|
1 |
Vacuum level |
-0.098 MPa (subject to commercial contract, including 1 vacuum pump) |
|
2 |
Structure type |
Single-arm type |
|
3 |
Rotation speed (r/min) |
Planetary revolution: 0–61 r/min; Self-rotation: 0–125 r/min (frequency conversion speed control); High-speed dispersion: 0–5000 r/min (frequency conversion speed control) |
|
4 |
Low-speed shaft |
Two-shaft folding blade agitator, multi-layer SUS304 stainless steel blades, including one set of wall scraping and bottom scraping devices |
|
5 |
High-speed shaft |
Single high-speed shaft with two Φ50 dispersing discs; the upper dispersing disc height can be adjusted freely |
|
6 |
Lifting method |
Hydraulic lifting of bottom vessel, 0.75KW |
|
7 |
Lifting height |
220 mm |
|
8 |
Temperature measurement method |
Central temperature measurement (movable temperature sensor directly contacting the material) |
|
9 |
Vessel positioning |
Arc positioning block with lifting and placement structure; flange structure on the vessel cover ensures central positioning |
|
10 |
Total power |
Approx. 4 kW |
|
11 |
Power supply |
AC 3×380V, 50Hz |
|
12 |
Overall dimensions |
L1600 × W1100 × H2200 mm |
|
13 |
Weight |
Approx. 800 kg |
The YLJ series hydraulic discharging machine is an extrusion and filling equipment designed to work together with planetary mixers, power mixers, and high-speed dispersers for filling materials with certain flowability.
If a vacuum-sealed cover is installed on the pressing plate, the machine is especially suitable for the extrusion and filling of high-viscosity materials without air bubbles.
The equipment features a simple structure and convenient operation.
Technical Configuration
|
S/N |
Item |
Model / Specification |
|
1 |
Structure type |
Single hydraulic cylinder type (YLJ) |
|
2 |
Design pressure (MPa) |
7 MPa |
|
3 |
Total pressing force |
2.2 tons |
|
4 |
Pressing plate diameter (mm) |
240 mm |
|
5 |
Sealing ring structure |
Single self-tightening sealing ring structure (with additional breather valve) |
|
6 |
Main hydraulic cylinder |
D63/d40 H220 |
|
7 |
Hydraulic station (standard type) |
Shared with power mixer |
|
8 |
Discharge method |
Horizontal discharge with quick clamp connection |
|
9 |
Discharge height |
Approx. 750 mm from discharge outlet to ground level |
