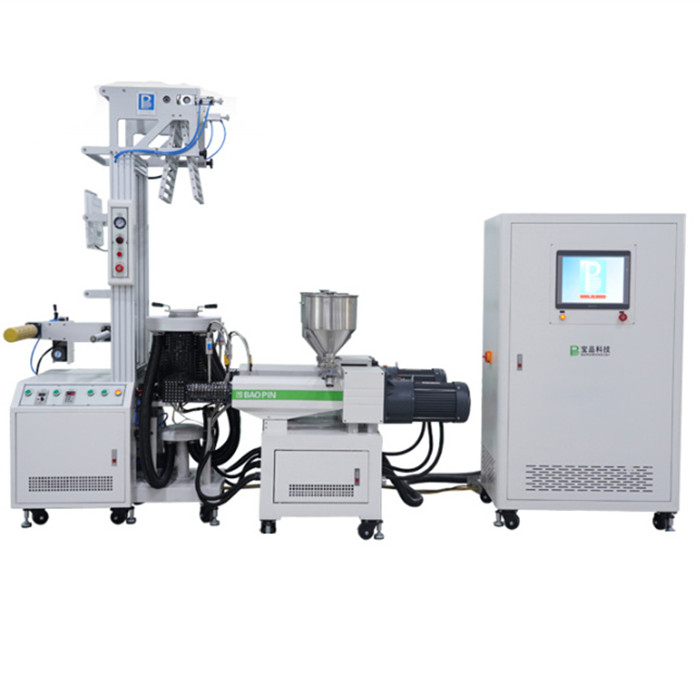

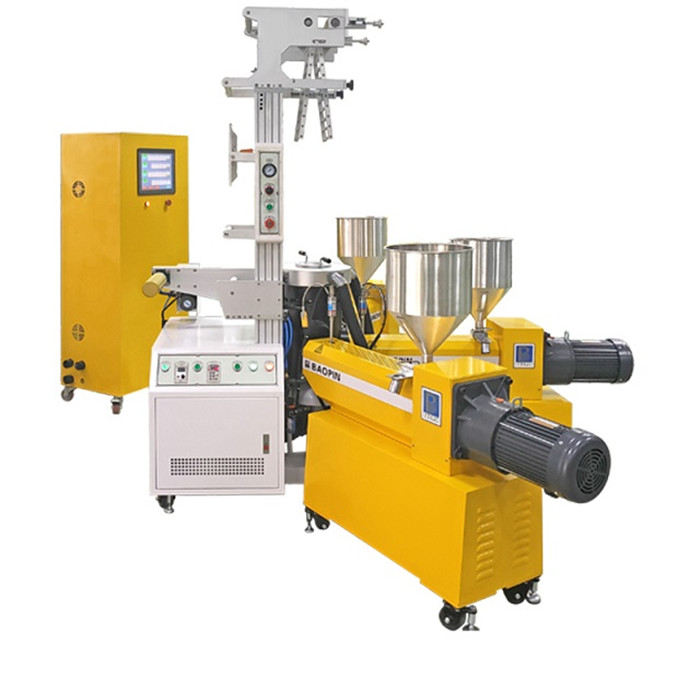

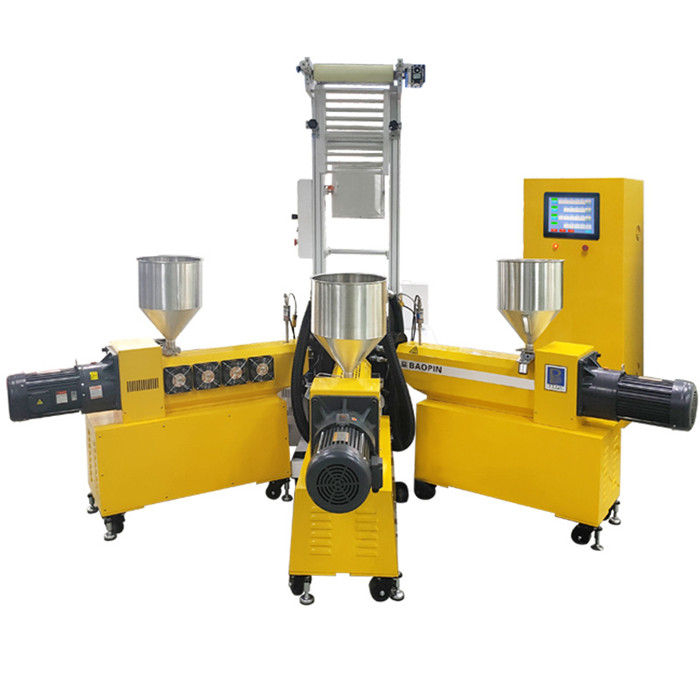

PLC Control of a Small Three-Layer co-Extrusion Film Blowing Machine For Laboratory Testing
Product introduce
Extrusion blown film refers to the process of continuously extruding plastic melt through a die at a certain temperature and shear force, and obtaining a double folded plastic film through compressed air expansion, wind ring cooling, and variable frequency traction.
Specification
Table screw diameter
35
Length to diameter ratio
1:28
Screw speed
0-150rpm
Variable frequency speed control screw material
38CrMoAlA
chromium molybdenum alloy, surface treated with processes such as quenching and tempering, nitriding, chromium plating, polishing, and ultra precision grinding, with a roughness of Ra ≤ 0.4 μ m. The depth of the nitriding layer reaches ≥ 0.6mm, and the hardness is HRC55-60
Material of material barrel
38CrMoAlA
chromium molybdenum alloy, with surface treated by processes such as quenching and tempering, nitriding, chromium plating, polishing, and ultra precision grinding, with a roughness of Ra ≤ 0.4 μ m. The depth of the nitriding layer reaches ≥ 0.6mm, and the hardness is HRC55-60
Cooling zone
3 sets of multi wing fans with ultra static forced air cooling
Quick change chuck
C-type snap ring connection, easy to connect quickly with downstream equipment
Drive motor
3.7KW precision gear reduction motor
Electric control system
PLC programmable color touch screen, 10 inch screen human-machine interface system, dynamic display of extrusion process, including temperature control, driving, pressure, and interlocking joint control functions
Volume
1350 × five hundred × 940 (W × D × H) Mm (excluding adjustable electronic control box)

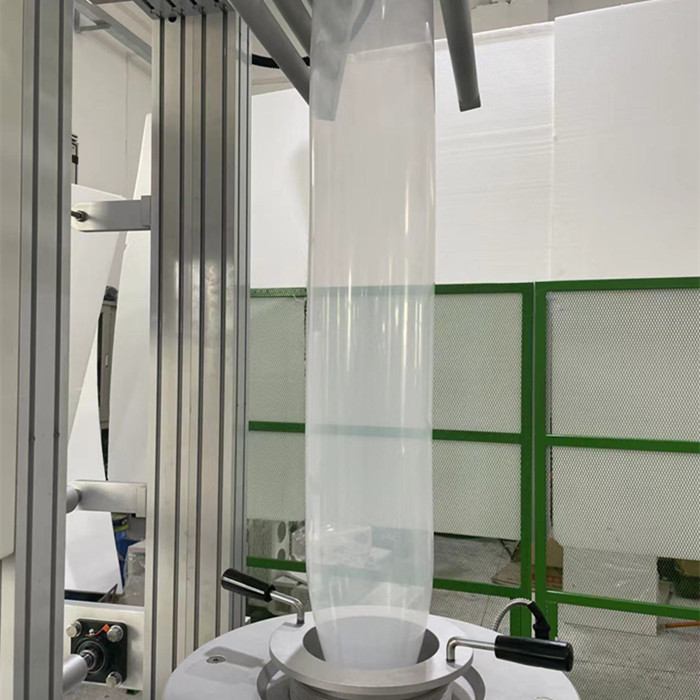

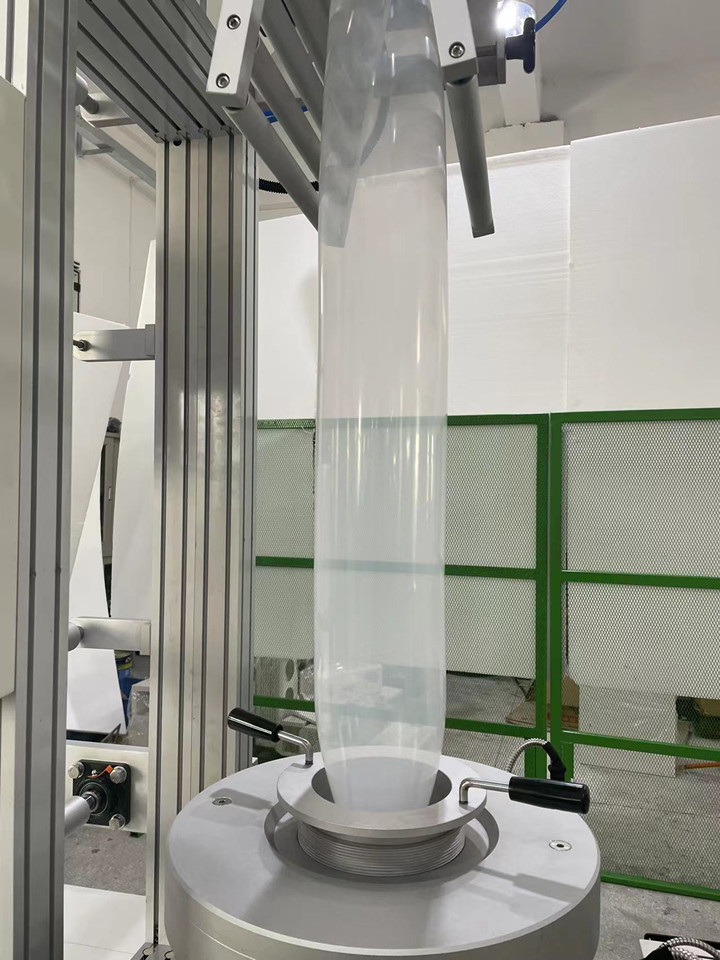

Blowing film tower
Die diameter
100
Axial distributor
Special configuration
Radial distributor
Special configuration
Blowing gas
Compressed air 0-6bar
Adjustable cooling gas
Blast flow rate 60L/min
Traction winding speed
0-20m/min adjustable
Traction motor
200W
Winding motor
6.5Nm
Fan
1.5KW
