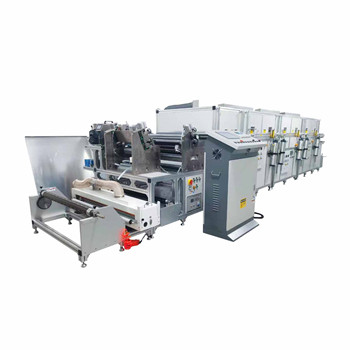

Slot Die Coating Machine
| Specification Parameters for coating machine | |||||
| Control system | independently developed | ||||
| Coating width | 650mm | ||||
| Roller width | 700mm | ||||

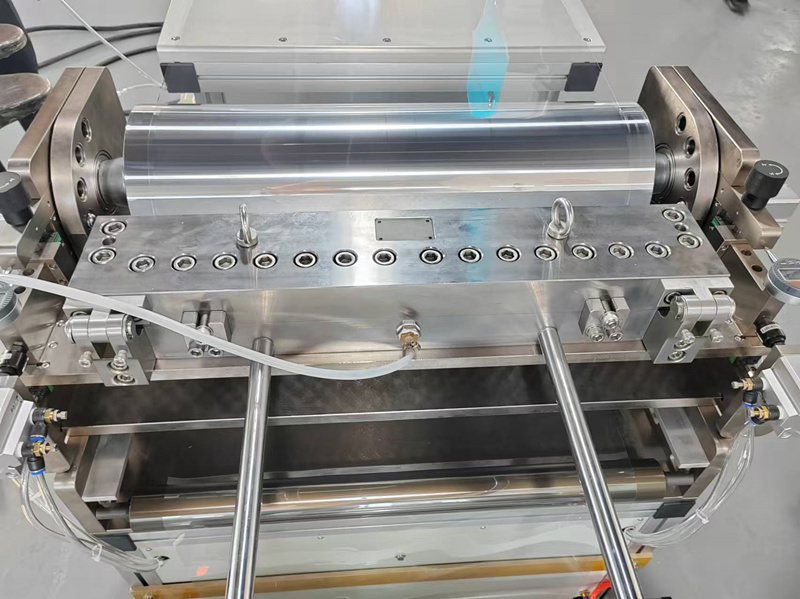

| Coating head | slot die | ||||
| Slor die | Slot die position can be adjusted to 9 a.m., 11 a.m., and 12 a.m. | ||||
| Coating thickness | 0.01-5MM (uniformity ± 3%) | ||||
| Coating speed | 0.1-3m/min advised (adjustable according to the drying condition of the glue) | ||||
| Heating oven | 6 meters (humpback bridge type) | ||||
| Waste heat recovery | with automatic waste heat collector | ||||
| Temperture | Heated air circulation,upto 200C | ||||
| Drying passage roller | 304 stainless steel | ||||
| Drying channel material | 304 stainless steel (box) | ||||
| Drying channel lifting | cylinder lifting | ||||
| Feeding | Peristaltic pump + feeding system (about 25L) | ||||
| Cutting device (optional) | No | ||||
| Preheating platform (optional) | 1000*650mm, upto 60C, temp can be adjusted | ||||
| Destaticizing (optional) | Remove static electricity | ||||
| Tension control | adjustable tension | ||||
| Deviation correction device | fully automatic deviation correction for receiving materials | ||||
| Drying blower | adjustable speed | ||||
| Inflation shaft | 3-inch inflation shaft | ||||
| Winding diameter | 500mm | ||||
| Equipment power supply | 380V | ||||
| Certification | CE | ||||
Relevant products

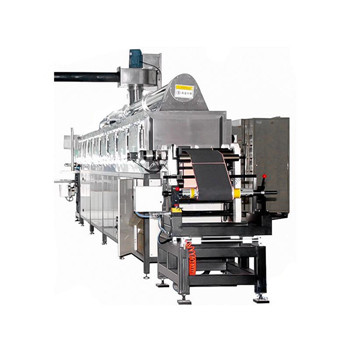

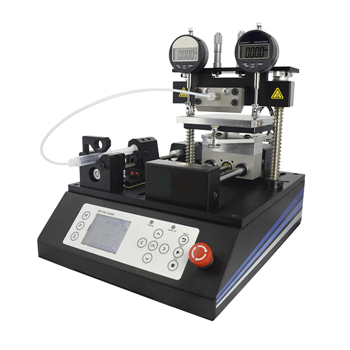

Customizable Slot Die Coater Automatic Slot Die Coater

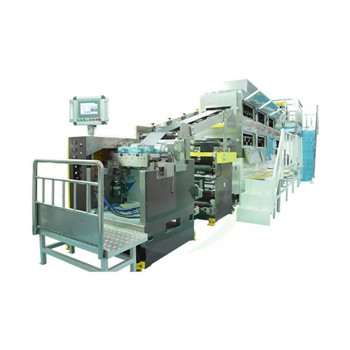

Precision Slot-Die Coating Machine Double Layer Slot Die Coater
