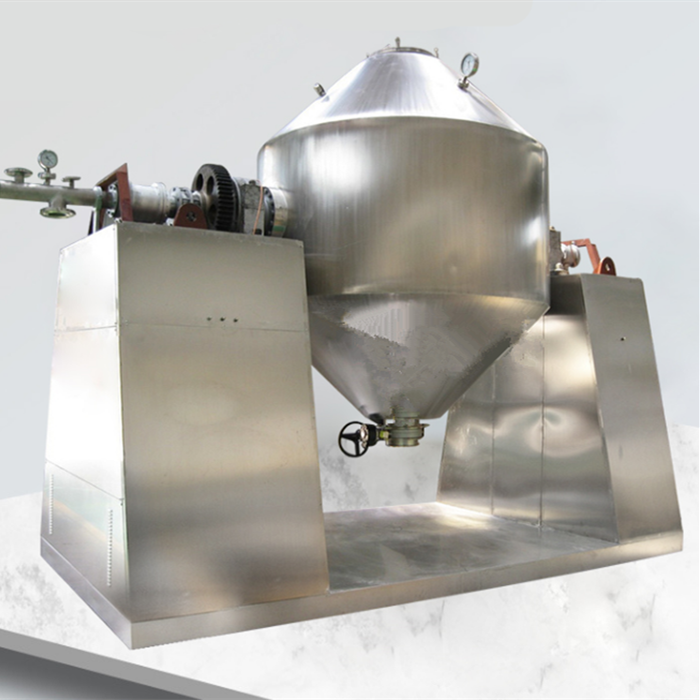

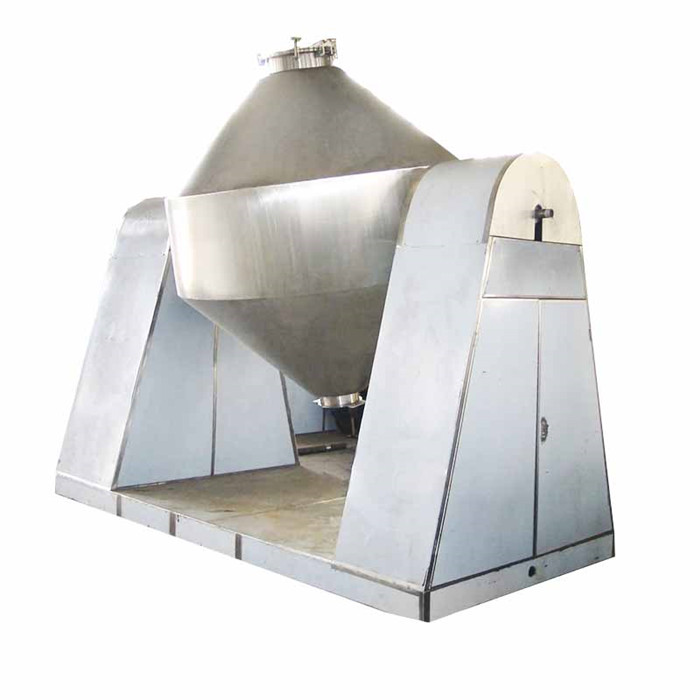

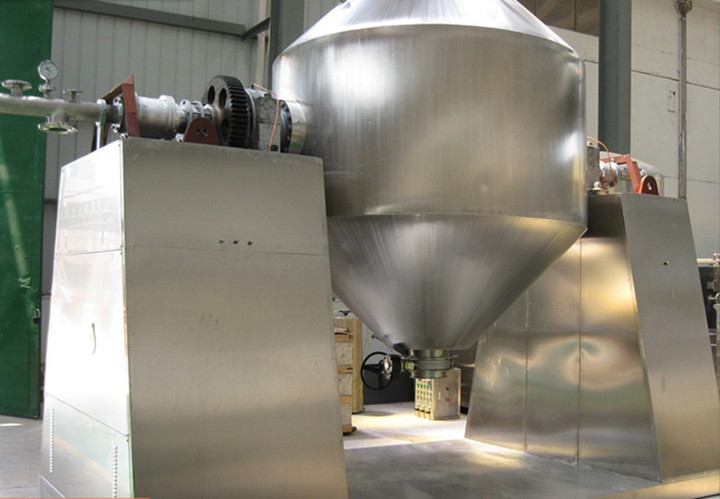

Medicine Glue Double Cone Rotary Vacuum Dryer
Product Introduce
Double cone rotary vacuum dryer is widely used in the production of equipment, this is because in the process of vacuum drying, the pressure in the cylinder body is always lower than the atmospheric pressure, the number of gas molecules is small, the density is low, the oxygen content is low, so it can dry easy to change the oxidation of drugs production, can reduce the opportunity of bacteria contamination of materials. Also because the temperature of water in the process of vaporization is proportional to the steam pressure, the water in the material can vaporize at low temperature during vacuum drying, so as to achieve low temperature drying, which is suitable for the production of heat-sensitive materials in drugs.
Double cone rotary vacuum dryer is mix drying in one of the new dryer. The condenser, vacuum pump and dryer are equipped to form a vacuum drying device (if the receiver is not needed, the condenser can not be used).
Specification
|
Type |
SIMY-100 |
SIMY-350 |
SIMY-500 |
SIMY-750 |
SIMY-1000 |
|
Tank capacity(L) |
100 |
350 |
500 |
750 |
1000 |
|
Loading capacity(L) |
≤50 |
≤175 |
≤250 |
≤375 |
≤500 |
|
Heating area(mi) |
1.16 |
2 |
2.63 |
3.5 |
4.61 |
|
Rotate speed(rpm) |
4-6 |
||||
|
Motor power(kw) |
0.75 |
1.1 |
1.5 |
2 |
3 |
|
Floor space(mm) |
2160*800 |
2260*800 |
2350*800 |
2560*1000 |
2860*1300 |
|
Height of rotation(mm) |
1750 |
2100 |
2250 |
2490 |
2800 |
|
Design pressure in tank(Mpa) |
-0.1~0.15 |
||||
|
Jacket design pressure(Mpa) |
≤0.3 |
||||
|
Operating temperature(C) |
Tank ≤85, jacket ≤140 |
||||
|
When using condensate pump, vacuum pump |
2X-15A |
2X-15A |
2X-30A |
2X-30A |
2X-70A |
|
Power(kw) |
2 |
2 |
3 |
3 |
5 |
|
When not condensate pump, vacuum pump |
SK-0.4 |
SK-0.8 |
SK-0.8 |
SK-2.7B |
SK-2.7B |
|
Power(kw) |
1.5 |
2.2 |
2.2 |
4 |
4 |
|
Weight(kg) |
800 |
1100 |
1200 |
1500 |
2800 |
