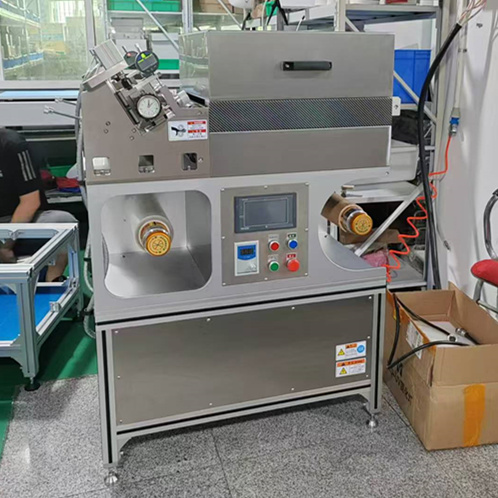

Compact Comma Blade & Wire Rod Coating Machine for Roll Material
This is a compact coating machine that can use both a comma blade and a wire bar for roll materials.
Specification
|
Specification Parameters for coating machine |
|
|
Control system |
Inverter (Delta PLC Control) |
|
Coating width |
Effective coating width 300mm |
|
Coating method |
Doctor blade & wire rod |
|
Coating thickness |
0.005-2mm |
|
Oven length |
0.5m, can be customized |
|
Oven temperature |
normal temperature ~180C |
|
Heating control |
Thermocouple sensor (touch screen temperature controller) |
|
Heating method |
Electric heating tube |
|
Drying channel fan |
Speed adjustable |
|
Blower fan |
speed adjustable |
|
Coating speed |
0.1-1 meters/min adjustable |
|
Tension control |
Adjustable Tension Release (1~10N) |
|
Rewind and Unwind Shaft |
3-inch Rewind Shaft (Wafer Type) |
|
Power supply |
220V, 50/60Hz |
|
Power Consumption |
5000W(total power is subject to physical) |
|
Air source access |
0.55Mpa~0.7Mpa (Air compressor provided by customer) |
-
-
