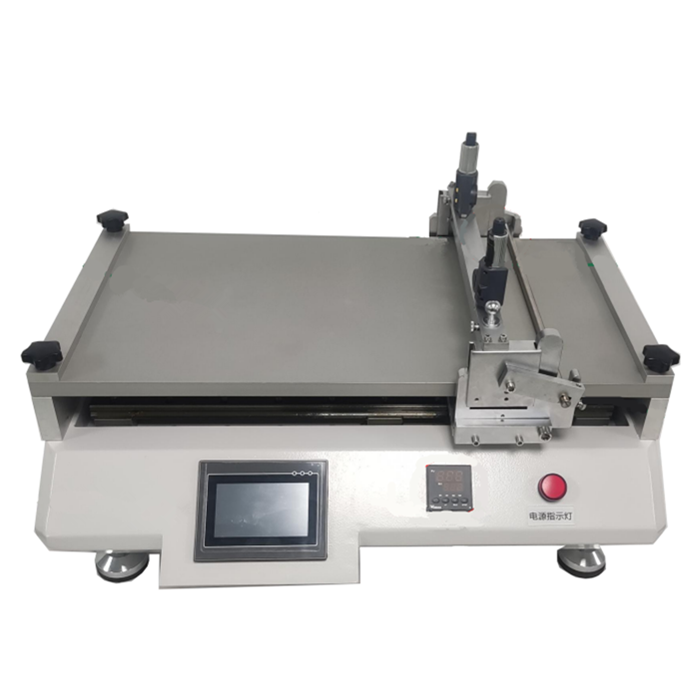

Optional Coating Head Small Coating Machine Sheet Material Coating Machine
Product description
1.Using high precision coating head, coating control accuracy and service life greatly improve the roll with automatic correction device to ensure the roll neatly;
2.Touch screen data operation, simple operation, semi-automatic operation, manual/automatic switching, misoperation tips;
3.The temperature of the heater is all controlled by the data module. The temperature control accuracy is plus or minus 1°, and the stability is good;
4.Safe operation, install emergency stop switch at each operating point of the host, no load, no flying.
Specification
|
Coating accuracy |
Precision +5um/ customizable |
|
Temperature sensing accuracy of hopper |
No heating/heating 0-300℃ accuracy 0.3%FS/ sh 1℃ |
|
Cover film configuration |
Standard no pressure/pressure (customizable) |
|
Curing temperature range |
Standard without heating/can be customized 0-300℃ |
|
Speed |
0-2m/min According to the glue curing time adjustment accuracy ≤0.2% |
|
Mode of operation |
Manual/automatic |
|
Power supply |
Basic voltage: single-phase 220V 750W (change voltage according to demand) |
