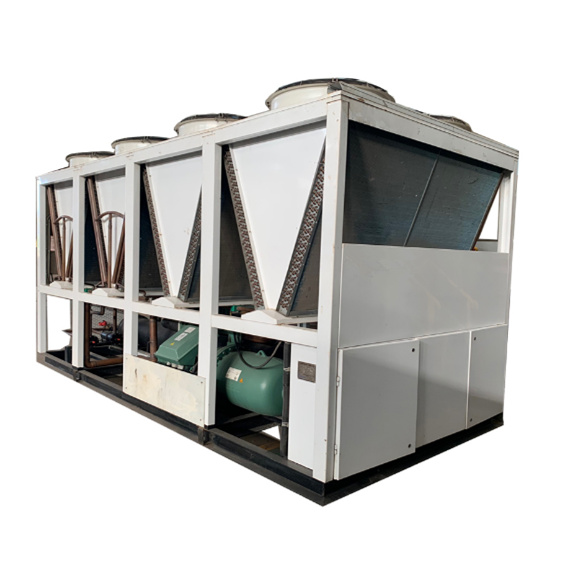

Low Temperature Air-cooled Screw Unit Water-cooled Chiller

There are both twin screw and single screw types of low-temperature screw refrigeration units, and now the widely used one is the twin screw type.

Please send your inquiry to joyhuang@simymachine.com

Item No.:
SIMY-KDS
Lead Time:
10 days
Payment:
Credit Card, Paypal, T/T , Western Union, LC
Warranty Period:
1 year
Customizable:
Yes

Product Detail

Low Temperature Air-cooled Screw Unit Water-cooled Chiller

Product introduce

There are both twin screw and single screw types of low-temperature screw refrigeration units, and now the widely used one is the twin screw type. Its compressor is the most advanced, which is an asymmetric twin screw, and all of them are imported from abroad, so the compressor quality is very stable and very energy-saving.

Specification

Technical Parameters of Low Temperature - air cooled screw unit
Model				KD-40AFLD	KD-50AFLD	KD-70AFLD	KD-90AELD	KD-110AFLD	KD-130AFLD	KD-160ARLD
Refrigerating capacity(Kw)			-45℃	65	89	127	170	211	251	328
			-55℃	42.9	59	84	112	139	166	216.5
			-65℃	27.9	38.3	54.6	73	91	108	141
Rated power of whole machine(KW)				78.2	93.2	132.3	163.9	203	242	296.2
Input power				3PH-380/50Hz
Total current(A)				135	165	240	300	360	435	540
Low temp stage	Compressor		Form	Semi-enclosed screw type
			Rated power(KW)	30	37.5	52.5	67.5	82.5	97.5	120
			Coolants	R23
	Evaporator		Form	plate-type
			Coolants	Ethyl alcohol
			Carrier coolant flow rate (m³/h)	16.7	23	33	44	55	65	85
	Condenser		Form	plate-type
High temp stage	Compressor		Form	Semi-enclosed screw type
			Rated power(KW)	45	52.5	75	90	112.5	135	165
			Coolants	R22/R404a
	Evaporator		Form	Low-temperature condenser
	Condenser		Form	High efficiency copper tube with aluminum fin type + low noise external rotor fan
	Condenser		Air flow (m³/h)	40000	50000	70000	90000	110000	130000	160000
Safety protection				Compressor overheat protection, high and low pressure protection, overtemperature protection, flow protection Phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection, water flow switch protection
Dimension		L(mm)		2650	2650	3310	3310	3512	4362	5204
		W(mm)		1906	1906	2112	2112	2206	2141	2161
		H(mm)		2104	2104	2104	2104	2087	2127	2197
weight		KG		1200	1350	1500	1750	2000	2500	3000
Nominal cooling capacity: ambient temperature 35℃, refrigerant inlet and outlet temperature -40/-45℃ The refrigerant is ethanol
