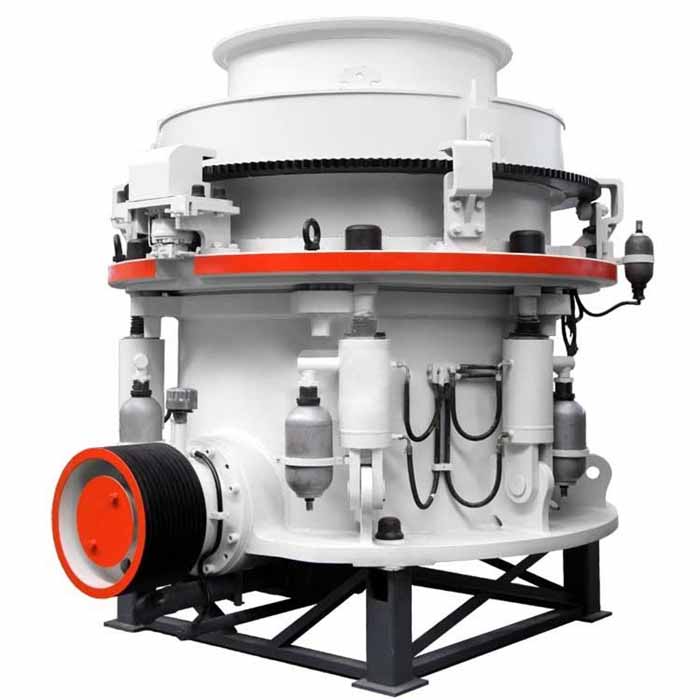

Hydraulic Cone Crusher for Quarries
Product Introduction
The cone crusher is used in the two-stage and three-stage crushing processes of metal mines and construction sand and stone processing. It has a large crushing ratio, high crushing efficiency, low wear of vulnerable parts, uniform product particle size, and reasonable grading. It is suitable for crushing various ores and rocks with a Proctor hardness of less than 16, such as iron ore, non-ferrous metal ore, granite, basalt, quartz stone, pebbles, sandstone, limestone, etc. The cone crusher series products launched mainly include spring cone crushers, single cylinder hydraulic cone crushers, and multi cylinder hydraulic cone crushers.
Specification
|
Model |
Type of crushing chamber |
Discharge gate （mm） |
Feed opening （mm） |
Output (t/h) |
Power (kw) |
Weight (t) |
|
T200 |
F(fine) |
≥13 |
95 |
120-200 |
160 |
13.4 |
|
M(medium) |
≥16 |
120 |
140-220 |
|||
|
C(coarse) |
≥19 |
190 |
150-250 |
|||
|
T300 |
F（superfine） |
≥10 |
80 |
100-240 |
250 |
18.1 |
|
F（fine） |
≥13 |
105 |
110-260 |
|||
|
M（medium） |
≥16 |
150 |
175-320 |
|||
|
C（coarse） |
≥20 |
210 |
190-380 |
|||
|
EC（super coarse） |
≥25 |
230 |
220-440 |
|||
|
T400 |
F（fine） |
≥14 |
110 |
185-345 |
315 |
26 |
|
M（medium） |
≥20 |
196 |
255-430 |
|||
|
C（coarse） |
≥25 |
251 |
295-560 |
|||
|
EC（super coarse） |
≥30 |
295 |
325-630 |
|||
|
T500 |
F（superfine） |
≥13 |
95 |
200-430 |
400 |
37 |
|
F（fine） |
≥16 |
135 |
280-455 |
|||
|
M（medium） |
≥22 |
210 |
345-605 |
|||
|
C（coarse） |
≥30 |
290 |
405-790 |
|||
|
EC（super coarse） |
≥38 |
330 |
445-855 |
