Portable Mini Ozone Generator

Customizable UV Foil Transfer Coating Machine

Enhance your packaging, labels, and promotional materials with the brilliant metallic effects of our UV Foil Transfer Machine. Designed for high-speed and high-precision applications, this machine is the ideal choice for businesses seeking a reliable and customizable foil transfer solution.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-UVT
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

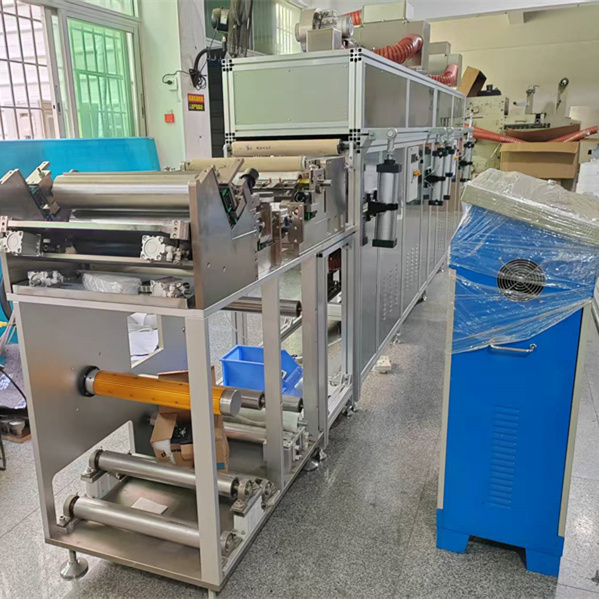

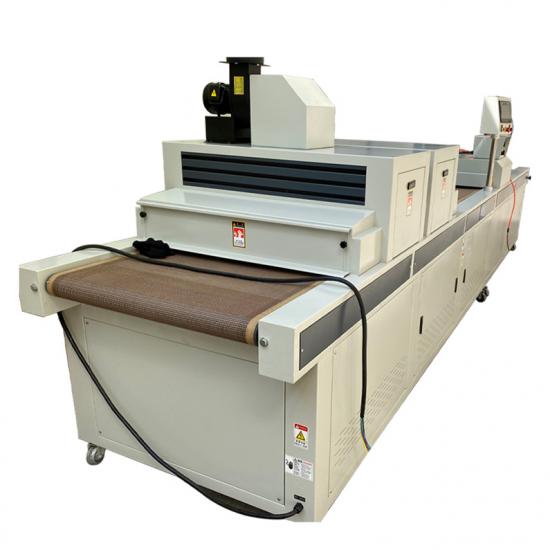

Customizable UV Foil Transfer Coating Machine



Standard Features

  • High Precision UV Foil Transfer: Achieve crisp and clear metallic effects with advanced UV curing technology.
  • Adjustable Foil Feeding System: Supports a variety of foil sizes and materials for versatile production needs.
  • User-Friendly Control Panel: Intuitive interface for easy operation and quick adjustments.
  • Efficient UV Curing: Fast curing time for higher production efficiency.
  • High-Speed Performance: Capable of handling bulk orders with consistent quality.
  • Automatic Tension Control: Ensures smooth and even foil application.


Technical Parameters

  • Max Foil Width: 650mm (Customizable)
  • Max Printing Speed: 60m/min (Based on material and design complexity)
  • UV Lamp Power: 8kW (Adjustable)
  • Material Thickness: 50-250g/m²
  • Power Supply: 380V/50Hz, 3 Phase (Custom voltage available)
  • Machine Dimensions: 4500mm × 1500mm × 1800mm
  • Weight: 2500kg


Customizable Options

Our UV Foil Transfer Machine offers extensive customization options to meet your specific requirements:


  • Foil Width and Length: Custom foil sizes available.
  • UV Lamp Power: Adjustable based on production speed and material type.
  • Conveyor Length: Extended conveyors for increased productivity.
  • Software Integration: Compatible with your existing production management systems.
  • Design Modifications: Add additional modules for multi-stage processing.


Applications

  • Packaging Materials
  • Labels and Stickers
  • Decorative Cards
  • Cosmetics and Luxury Goods Packaging
  • Advertising and Promotional Items


Why Choose Us?

  • Expert Engineering: Years of experience in designing and manufacturing foil transfer machines.
  • Global Support: Reliable after-sales service and technical support.
  • Flexible Customization: Tailored solutions to fit your production environment.
  • Sustainable Solutions: Energy-efficient and eco-friendly production options.
