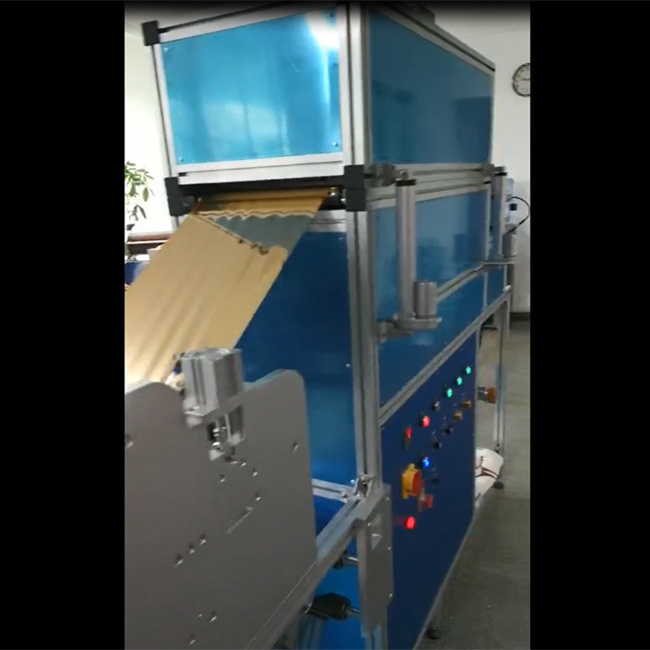

Custom Al Laminated Film Coating Machine Hot Stamping Foil Coater

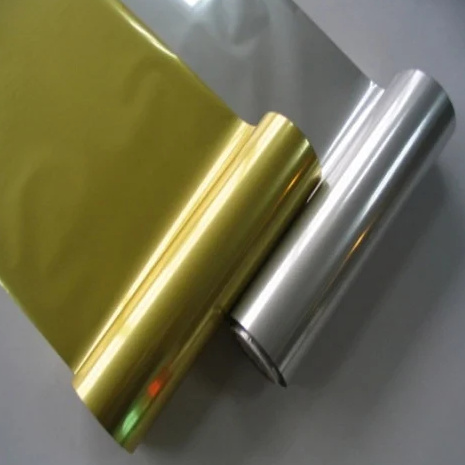

Hot stamping foil is produced with a carrier film as PET film.
| Specification Parameters for coating machine | |||||
| Control system | self-developed PLC touch screen | ||||
| Coating width | Effective coating width 350mm, rolling width 400mm | ||||
| Coating method | Doctor blade | ||||
| Oven length | 2m, can be customized | ||||
| Temperature | normal temperature ~180C | ||||
| Blower fan | Normal 2, speed adjustable, anti-explosion optional | ||||
| Coating speed | 0-5 meters/min adjustable, stable operation at low speed | ||||
| Tension control | Automatic tension | ||||
| Winding device | Automatic winding | ||||
| Power supply | 220V, 50/60Hz | ||||
