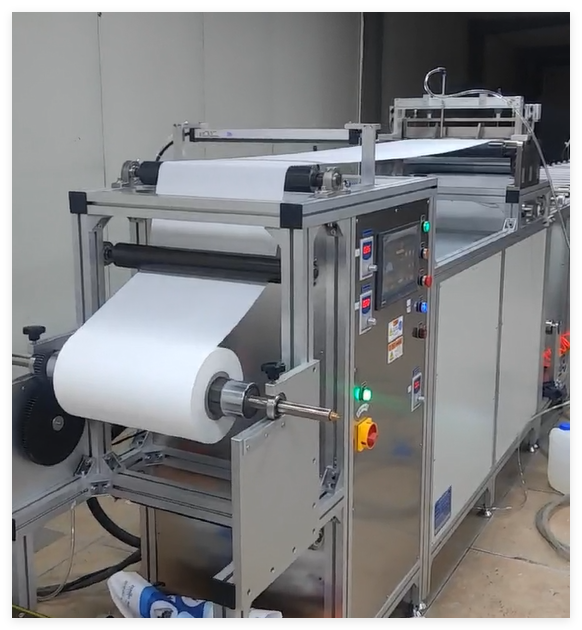

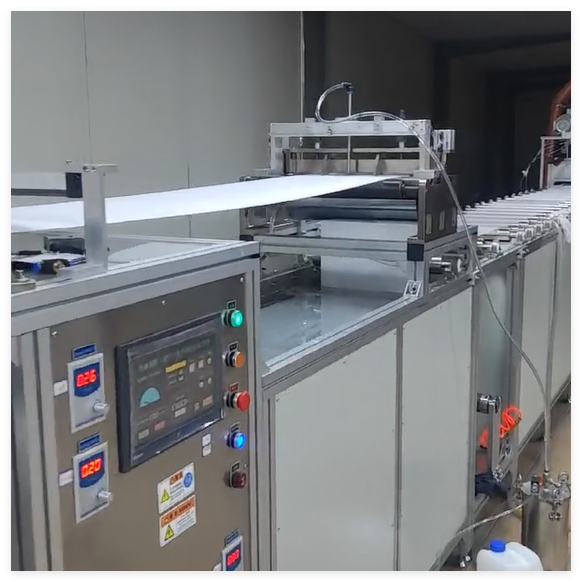

Cast Film Doctor Blade Coating Machine with Water Tank
| Specification | |||||
| Control system | independently developed | ||||
| HMI | 10 inch touch screen | ||||
| Coating width | 200-1050mm | ||||
| Coating speed | 0.5-10m/min adjustable | ||||
| Coating method | Doctor Blade | ||||
| Coating thickness | 0.01-1MM (uniformity ± 5 microns) | ||||
| Water tank | Optional | ||||
| Unwinding diameter | 500mm (tension control) | ||||
| Water roller material | 304 stainless steel | ||||
| Inflatable shaft diameter | 3 inches (tile type inflatable shaft) | ||||
| Rectifier | automatic correction of winding | ||||
| Winder motor | using a 1.5KW deceleration variable frequency motor | ||||
| Equipment power supply | 380V 3 phase | ||||
| Equipment power | approximately 20KW | ||||
