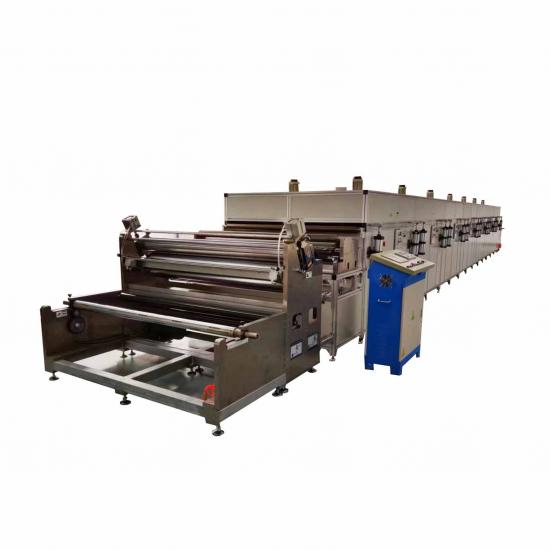

Compact and Customizable Hot Melt Coating Machine
Equipment introduction
Small hot melt adhesive coater is suitable for roll to roll material coating, film covering and integrated automatic production hot melt adhesive coater. It is suitable for coating PET, cloth, paper, aluminum film, copper film and other roll packaging materials. The machine is designed with the advantages of full-automatic control, one button automatic tension control, automatic coating, automatic temperature constant, automatic film covering, automatic winding, etc.
Specification
Max Coating width
200mm
Coating thickness
0.01-2mm
Glue feed
hot melt slot die (1 set)
Hot melt tank
1L with adjustable temperature cylinder, upto 180C
Tension
with adjustable tension control
Coating speed
1-30 m/min adjustable
Lamination device
Yes
Aligment device
Yes
heating platform
Temp range 60-80 C
Oven
1 meter, normal temp - 80C
Voltage input
220V±10% 50/60Hz
Certificate
CE
